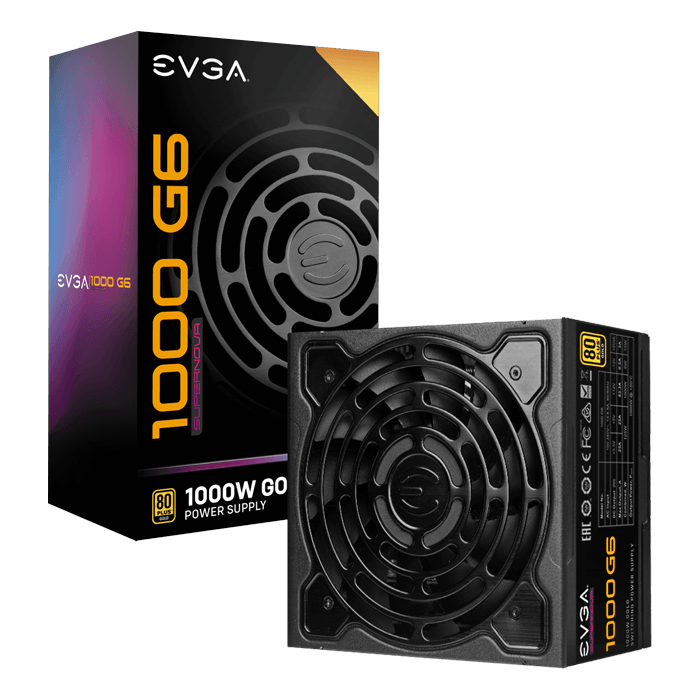

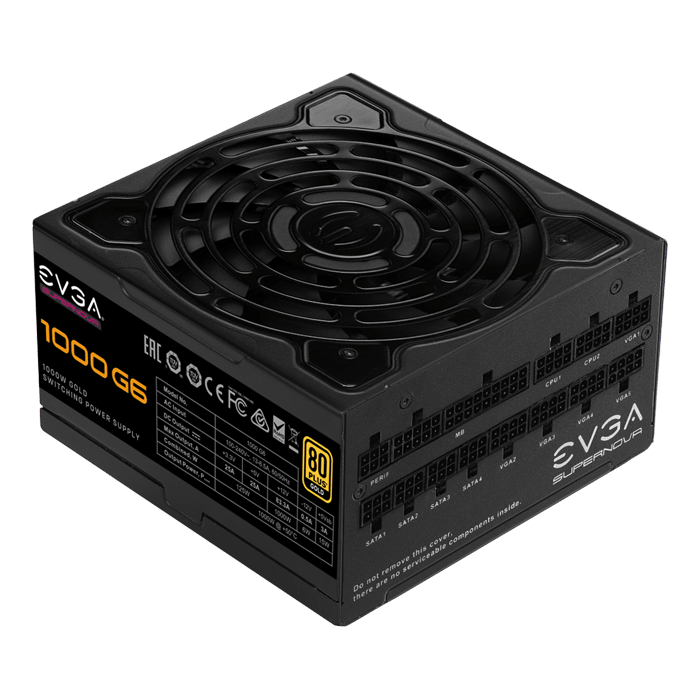

1000 G6, 80 PLUS Gold 1000W, ECO Mode, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 14454157
  • Manufacturer: EVGA
  • MPN: 220-G6-1000-X1
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$192.03
Quantity:
  • 80 PLUS Gold certified, with 91% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • 100% Japanese Capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • Full-bridge LLC Resonant Converter and DC-DC design leads to tight voltage regulation and low ripple & noise
  • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), Dual OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Active Power Factor Correction
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

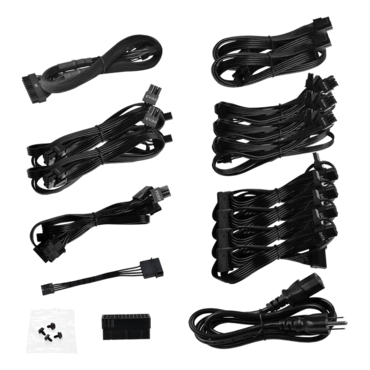

Cable Length
ATX Cable 1x 600mm (m)
EPS Cable 2x 700mm (m)
PCIe Cable 2x 700mm, 3x 700mm, 820mm (m)
SATA Cable 4x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter 1x 100mm
AC Power 1x 1500mm (m)
Modular Cable Type Full
Connector Quantity
24 Pin ATX 1x 24pin
EPS (CPU) 2x 8pin (4+4)
PCIe 8x 8pin (6+2)
SATA 12x
Four-Pin Peripheral 4x
Floppy 1x
INPUT

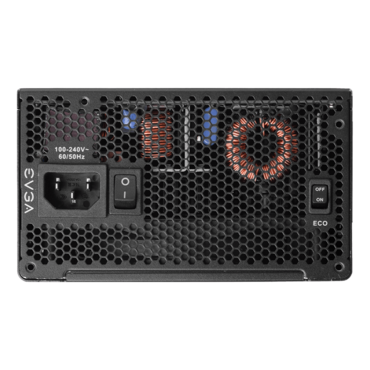

Input Voltage 100-240V~
AC Input 13-6.5A
Input Frequency Range 60/50Hz
Efficiency 91% (115VAC) / 92% (220VAC~240VAC) or Higher Typical
Power Specs

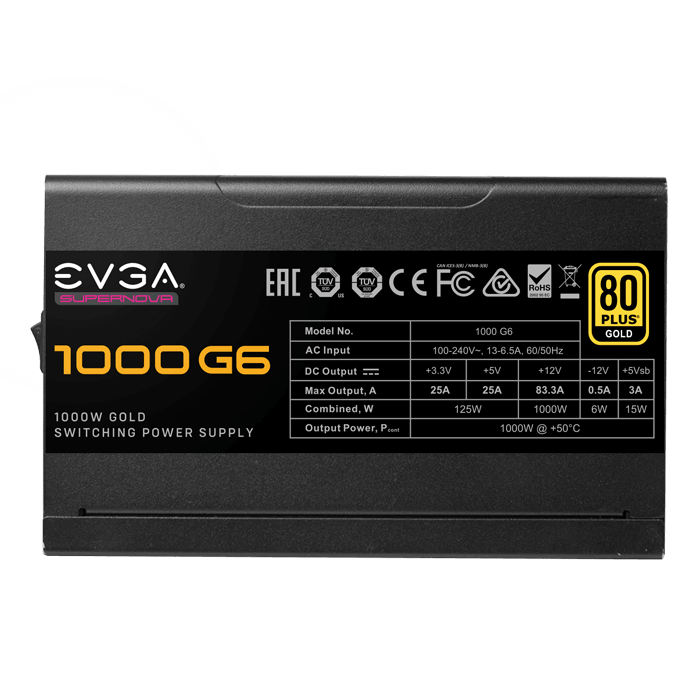

Rail +3.3V +5V +12V -12V +5Vsb
Max Output 25A 25A 83.3A 0.5A 3A
125W 1000W 6W 15W
Total 1000W
Additional Details
Operating Temperature 0° to 50° C
Japanese Capacitors 100%
ECO Mode Yes
MTBF 100,000 Hours
Net Weight 7 lbs
Size 86mm (H) x 150mm (W) x 140mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing 135mm Fluid Dynamic Bearing
UPC 843368068424
EAN 4250812439420
