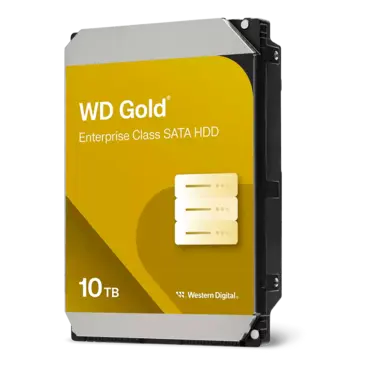

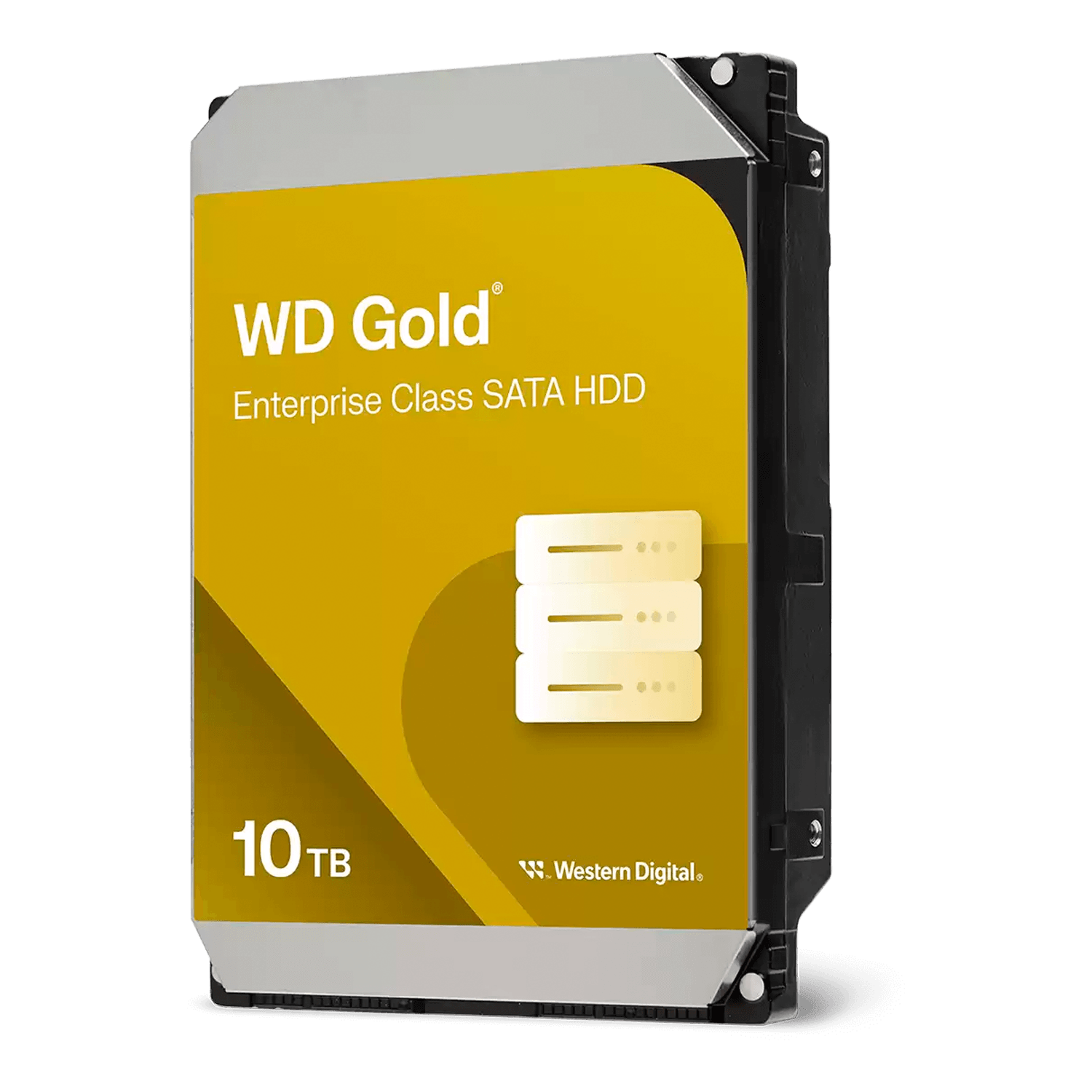

10TB Gold WD102KRYZ, 7200 RPM, SATA 6Gb/s, 512e, 256MB cache, 3.5" HDD
WD 10TB Gold (WD102KRYZ). Conquer tough workloads with enterprise-class WD Gold™ HDDs. Available in 1TB to 14TB capacities, this highly reliable solution for demanding storage environments provides up to 2.5M hours MTBF, vibration protection technology and a low power draw thanks to HelioSeal™ technology [for 12TB and above]. Specifically designed for use in enterprise-class data centers and storage systems, the WD Gold SATA HDD delivers the world-class performance you expect from Western Digital® hard drives.
BEYOND EXPECTATIONS
- WD Gold™ hard drives are performance-optimized for heavy application workloads, whether you need 1TB or 14TB. The WD Gold HDD’s wide capacity range solves for the most demanding storage environments.
ENHANCED RELIABILITY
- With up to 2.5M hours MTBF, WD Gold™ hard drives deliver enhanced levels of dependability and durability.
A WORLD-CLASS PERFORMER
- Delivering excellent service to any storage environment, WD Gold™ hard drives are designed to handle workloads up to 550TB per year – among the highest of any 3.5-inch hard drive.
VIBRATION PROTECTION
- WD Gold™ has sophisticated monitoring electronics that help correct linear and rotational vibrations in real time using enhanced vibration protection technology for improved performance in high-vibration environments.
PLAY WELL WITH OTHERS
- Broadly compatible with most PC and major enterprise operating systems. Specifically designed for use in enterprise-grade data centers and storage systems.
Model Number | WD102KRYZ |
Form Factor | 3.5-inch |
Interface | SATA 6 Gb/s |
512n / 512e user sectors per drive | 512e |
Formatted Capacity | 10TB |
RoHS compliant | Yes |
Performance | |
Data Transfer Rate (max sustained) | 262MB/s |
Performance Class | 7200 RPM Class |
Cache | 256MB |
Power Management
Average power requirements (W) |
|
Operational | 9.2W |
Idle | 8.0W |
Power efficiency index (W/TB, idle) | 0,8 |
Reliability | |
MTBF (hours) | 2 000 000 |
Annualized Failure Rate (AFR, %) | 0,44 |
Limited Warranty | 5 years |
Environmental | |
Operating Temperature | 5° C to 60° C |
Non-Operating Temperature | -40°C to 70°C |
Shock (Read/Write)
Operating (half-sine wave, 2ms) |
70G/50G |
Non-operating
(half-sine wave, 2ms) |
250G |
Acoustics (average) Idle Mode | 34 dBA |
Seek Mode | 38 dBA |
Physical Dimensions | |
Height (max) | 26.1 mm |
Length (max) | 147.0 mm |
Width (± .01 in.) | 101.6 mm |
