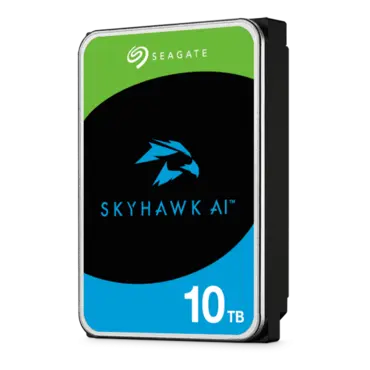

10TB Skyhawk AI ST10000VE001, CMR, 7200 RPM, SATA 6Gb/s, 256MB cache, 3.5" HDD
Quantity:
- SKU: 14590643
- Manufacturer: SEAGATE
- MPN: ST10000VE001
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$278.10
| Specifications | |
| Capacity | 10TB |
| Standard Model Numbers | ST10000VE001 |
| Interface | SATA 6 Gb/s |
| Recording Technology | CMR |
| Drive Design | Air |
| Features and Performance | |
| Drive Bays Supported | Unlimited |
| AI Channels | 32 |
| AI Real Time Capture Events/Sec | Up to 120 |
| AI Real Time Compare Events/Sec | Up to 96 |
| HD Cameras Supported | Up to 64 |
| RV Sensors | Yes |
| Max. Sustained Transfer Rate OD (MB/s) | 245MB/s |
| Cache (MB) | 256MB |
| Reliability/Data Integrity | |
| Tarnish Resistant | Yes |
| Load/Unload Cycles | 600,000 |
| Non-recoverable Read Errors per Bits Read, Max | 1 per 10E15 |
| Power-On Hours per year | 8760 |
| Workload Rate Limit (WRL) | 550 |
| Mean Time Between Failures (MTBF) (hours) | 2,000,000 hr |
| Warranty, Limited (years) | 5 |
| Power Management | |
| Startup Current, Typical (12V, A) | 2.0 A |
| Average Operating Power (W) | 10.1 W |
| Idling Average (W) | 7.8 W |
| Standby Mode/Sleep Mode, Typical (W) | 1.0W |
| Voltage Tolerance (5 V) | ±5% |
| Voltage Tolerance (12 V) | ±10% |
| Environmental/Temperature | |
| Operating (ambient, min °C) | 0°C |
| Operating (drive case, max °C) | 65°C |
| Non-operating (ambient, min °C) | -40°C |
| Physical | |
| Height (mm/in, max) | 26.11mm/1.028in |
| Width (mm/in, max) | 101.85mm/4.01in |
| Depth (mm/in, max) | 146.99mm/5.787in |
| Weight (lb/g) | 720g/1.588lb |
