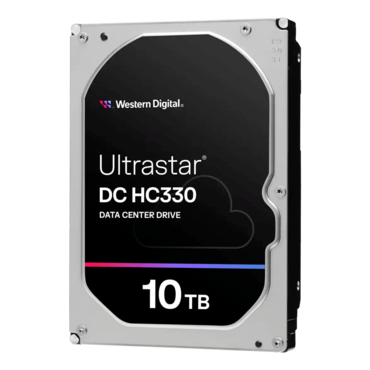

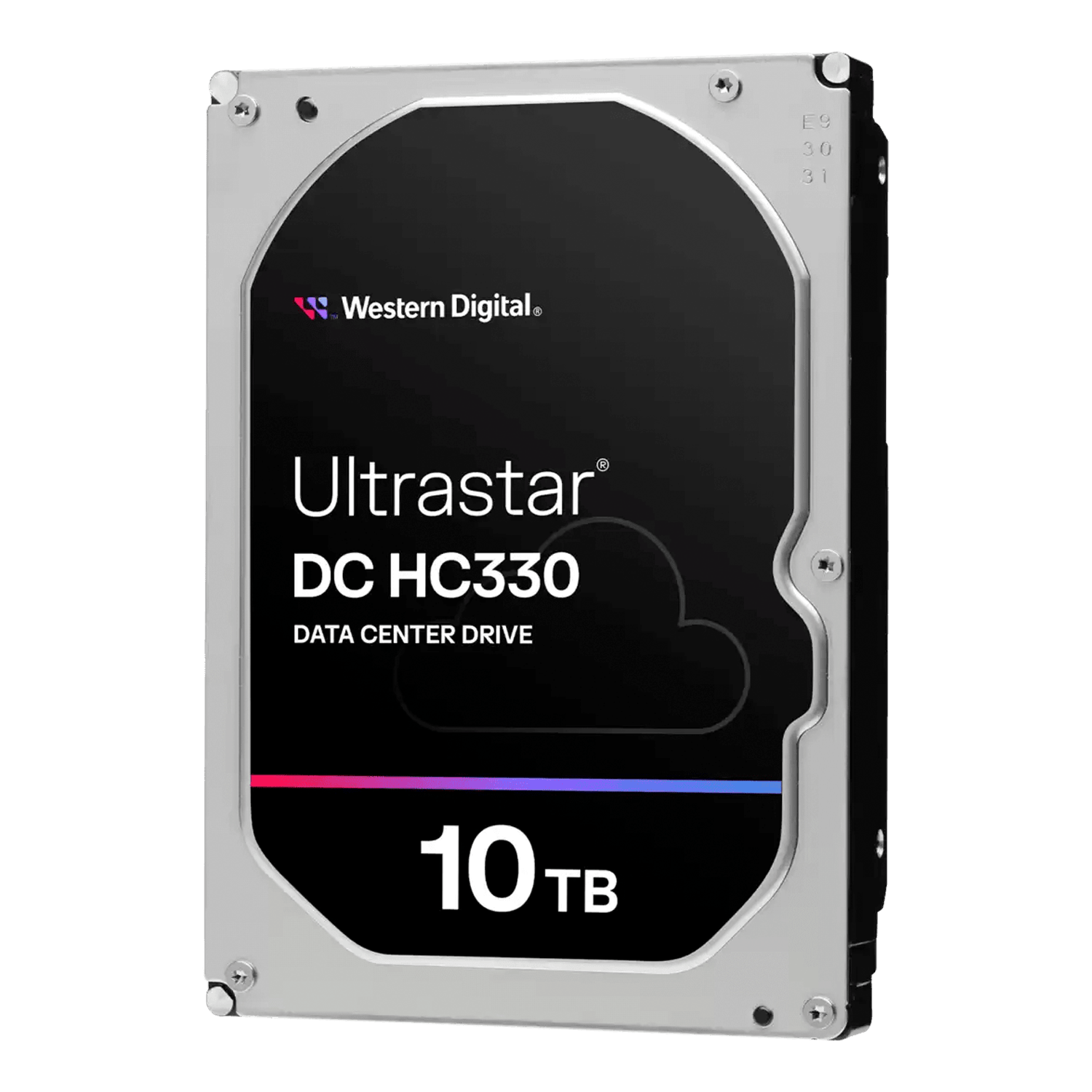

10TB Ultrastar DC HC330 WUS721010AL5204, 7200 RPM, SAS 12Gb/s, 512e, 256MB cache, SIE, 3.5" HDD
- SKU: 13230838
- Manufacturer: WESTERN DIGITAL
- MPN: 0B42258
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Western Digital 10TB Ultrastar DC HC330 (0B42258). As the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on mid-range capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC300 series is a proven air-platform design that delivers up to the industry leading 10TB of capacity to help address the economic and access-density requirements of many data center workloads. Ideal for storage and server applications, as well as distributed and scalable computing (including block and file storage architectures), the Ultrastar DC HC300 series provides fast 7,200 RPM spindle speeds and is offered in either 6Gb/s SATA or 12Gb/s SAS interface with advanced format 512e2 sector size.
- 10TB capacity point supports both OEM & cloud deployments
- Advanced Format 512e models
- Self-Encrypting Drive options
- 5-year limited warranty
| Configuration | |
| Interface | SAS 12Gb/s |
| Capacity | 10TB |
| Form Factor | 3.5-inch |
| Format: Sector size (bytes)
4Kn: 512e: |
512e: 512, 520, 528
4Kn: 4096, 4104,4160, 4224 |
| Max areal density (Gbits/sq. in., max) | 869 |
| Performance | |
| Data buffer (MB) | 256 |
| Rotational speed (RPM) | 7200 |
| Latency average (ms) | 4.16 |
| Interface transfer rate (MB/s, max) | 1200 |
| Sustained transfer rate
(MiB/s, typical) (MB/s, typical) |
Up to 250
Up to 262 |
| Seek time (read/write, ms, typ) | 8.0 / 8.6 |
| Reliability | |
| Error rate (non-recoverable bits read) | 1 in 1015 |
| Load/Unload cycles (at 40°C) | 600,000 |
| MTBF (M hours) | 2M hours |
| Annualized Failure Rate (AFR) | 0.44% |
| Availability (hrs/day x days/wk) | 24x7 |
| Limited Warranty (yrs) | 5 |
| Acoustics | |
| Idle/Operating (Bels, typical) | 3.4 / 3.8 |
| Power | |
| Requirement | +5V, +12V |
| Operating (W, typical) | 12.4 |
| Idle (W) | 9.0 |
| Physical | |
| z-height (mm, max) | 26.1 |
| Dimensions (width x depth, mm) | 101.6 (+/-0.25) x 147 |
| Weight (g, max) | 750 |
| Environmental (operating) | |
| Ambient temperature | 5°C to 60°C |
| Shock (half-sign wave, 2 ms, G)(Read/Write) | 70 / 50 |
| Vibration (G RMS, 5 to 500 Hz) | 0.67 (XYZ) |
| Environmental (non-operating) | |
| Ambient Temperature | -40°C to 70°C |
| Shock (half-sine wave, 2 ms, G) | 250 |
| Vibration (G RMS, 2 to 200 Hz) | 1.04 (XYZ) |
