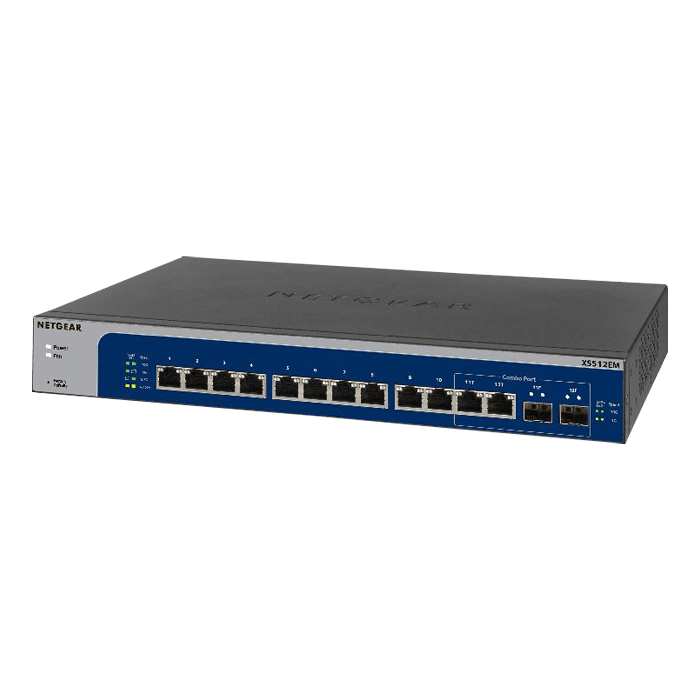

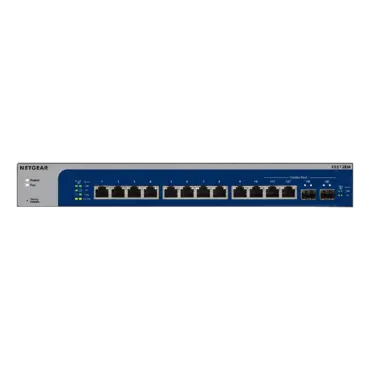

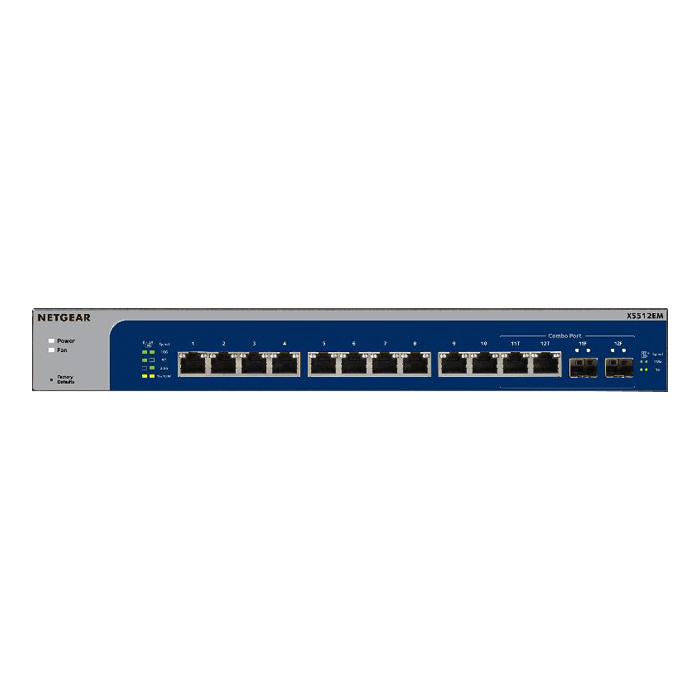

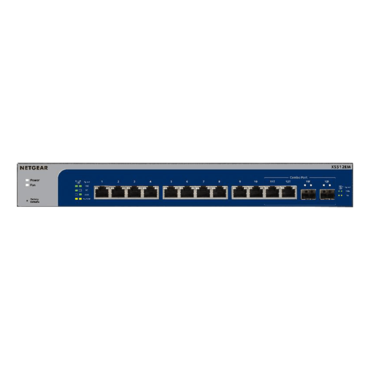

12-Port 10G-Gigabit/Multi-Gigabit Ethernet Switch with 2 SFP+ Combo Ports

Quantity:
  • SKU: 11674532
  • Manufacturer: NETGEAR
  • MPN: XS512EM-100NAS
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,149.99
Quantity:
12-Port 10G-Gigabit/Multi-Gigabit Ethernet Switch with 2 SFP+ Combo Ports

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to higher speed and performance. The 10-Gigabit and Multi-Gigabit Plus Switches from NETGEAR present the right solution for this requirement; delivering unprecedented non-blocking10-Gigabit bandwidth at the most affordable cost. All of them are perfect for removing the SMB network bottlenecks caused by the proliferation of Gigabit-to-the-desktop and the upcoming 10-Gigabit/Multi-Gigabit high end workstations.

100M/1G/2.5G/5G/10G RJ-45 copper ports 12
SFP+ Ports 2 (shared)
Form Factor Rackmount
Packet buffer memory 3MB
Bandwidth 240Gbps
MAC Address database size 32K
VLAN (# supported) 64
Number of LAGs & number of members 8 LAGs with max 8 members in each LAG
Supported multicast groups 128
Max number of source ports allowed (many to one port mirroring) 11
Fan(s) 2 (active fans)
IEEE 802.3az (Energy Efficient Ethernet) Yes
Max power consumption (Watts) 76.56W
LEDs Power, Speed, Fan, Link/Activity
Acoustic noise level @ 25° C (dBA) 29.3dBA
Operating temperature 0° to 50° C
Electromagnetic compliance (A or B) A
