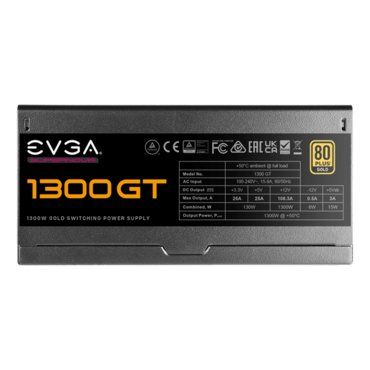

1300 GT, 80 PLUS Gold 1300W, ECO Mode, Fully Modular, ATX Power Supply
- SKU: 14705621
- Manufacturer: EVGA
- MPN: 220-GT-1300-X1
- Availability: TEMPORARILY OUT OF STOCK
Price
$263.56
1300 GT, 80 PLUS Gold 1300W, ECO Mode, Fully Modular, ATX Power Supply
Introducing the EVGA SuperNOVA GT Series of power supplies - the newest addition to the outstanding line of EVGA Power Supplies. Featuring 80 Plus Gold certification, 100% Japanese capacitors, a fluid dynamic bearing fan, and a fully modular design, this power supply is built for long-term usage and durability. Building upon EVGA's line of 80 Plus Gold rated power supplies, the EVGA GT Series combines all these features at a great price.
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- 100% Japanese Capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit
- Protection), and Dual OTP (Over Temperature Protection)
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
- Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
| CABLE LENGTH | |||||
| ATX Cable | 1x 600mm (m) | ||||
| EPS Cable | 2x 700mm (m) | ||||
| PCIe Cable | 4x 750mm (m), 2x 750mm, 900mm (m) | ||||
| SATA Cable | 4x 550mm, 650mm, 750mm (m) | ||||
| Four-Pin Peripheral Cable | 2x 550mm, 650mm, 750mm, 850mm (m) | ||||
| Floppy Adapter | 1x Molex to FDD Adapter | ||||
| AC Power | 1x 1500mm (m) | ||||
| Modular Cable Type | Full | ||||
| CONNECTOR QUANTITY | |||||
| 24 Pin ATX | 1x | ||||
| EPS (CPU) | 2x 8pin(4+4) | ||||
| PCIe | 8x 8pin(6+2) | ||||
| SATA | 12x | ||||
| Four-Pin Peripheral | 8x | ||||
| Floppy | 1x | ||||
| INPUT | |||||
| Input Voltage | 100-240V~ | ||||
| AC Input | 15-8A | ||||
| Input Frequency Range | 60/50Hz | ||||
| Efficiency | 90% or Higher Typical | ||||
| OUTPUT | |||||
| Rail | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max output | 25A | 25A | 108.3A | 0.5A | 3A |
| 130W | 1300W | 6W | 15W | ||
| Total | 1300W | ||||
| ADDITIONAL DETAILS | |||||
| Operating Temperature | 0° to 50° C | ||||
| Japanese Capacitors | 100% | ||||
| ECO Mode | Yes | ||||
| MTBF | 100,000 Hours | ||||
| Net Weight | 9.20 lbs | ||||
| Size | 86mm (H) x 150mm (W) x 180mm (L) | ||||
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
||||
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing | ||||
| UPC | 843368072247 | ||||
| EAN | 4250812443038 | ||||
