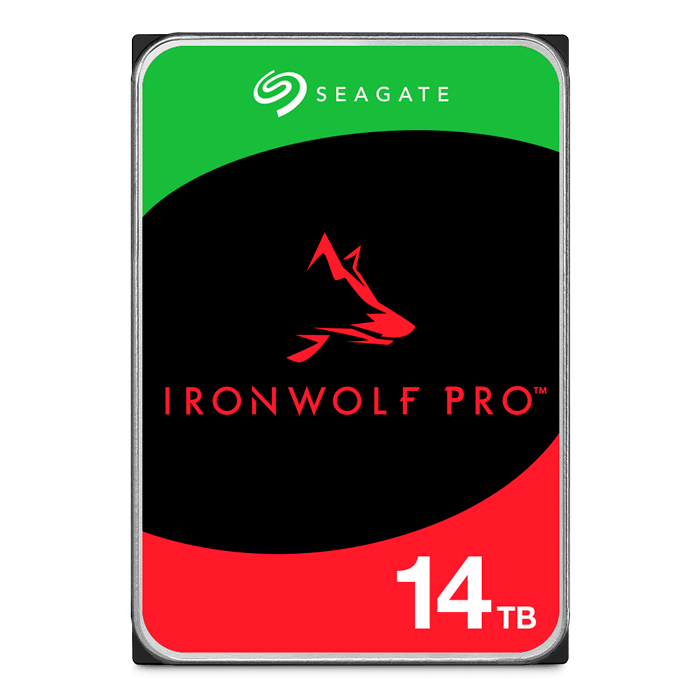

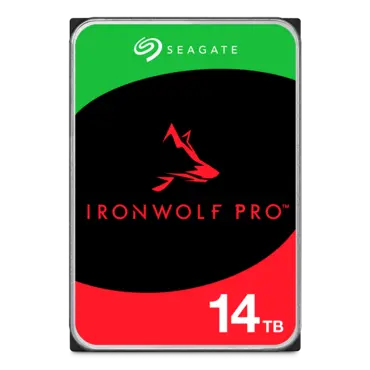

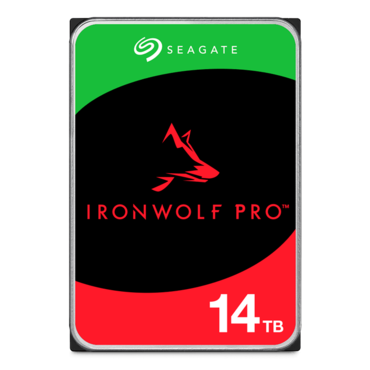

14TB IronWolf® Pro ST14000NT001, CMR, 7200 RPM, SATA 6Gb/s, 512e, 256MB cache, 3.5" HDD
Quantity:
- SKU: 15333718
- Manufacturer: SEAGATE
- MPN: ST14000NT001
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$446.94
| Specifications | |
| Capacity | 14TB |
| Standard Model Number | ST14000NT001 |
| Interface | SATA 6Gb/s |
| Features | |
| Drive Bays Supported | Unlimited |
| Recording Technology | CMR |
| Drive Design (Air or Helium) | Helium |
| Workload Rate Limit (WRL) | 550 |
| Rotational Vibration (RV) Sensors | Yes |
| Cache (MB) | 256MB |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 2,500,000 hr |
| Non-recoverable Read Errors per Bits Read, Max | 1 per 10E15 |
| Power-On Hours (per year) | 8,760 |
| Sector Size (Bytes per Logical Sector) | 512E |
| Rescue Data Recovery Services (years) | 3 |
| Limited Warranty (years) | 5 |
| Performance | |
| Spindle Speed (RPM) | 7200RPM |
| Interface Access Speed (Gb/s) | 6.0, 3.0, 1.5 |
| Max. Sustained Transfer Rate OD (MB/s) | 270MB/s |
| Rotational Vibration @ 10-1500 Hz (rad/s) | 12.5 |
| Power Consumption | |
| Startup Current, Typical (12V, A) | 2.0 A |
| Idle Power, Average (W) | 5.0 W |
| Average Operating Power (W) | 7.6 W |
| Standby Mode, Typical (W) | 1.0 W |
| Sleep Mode, Typical (W) | 1.0 W |
| Power Supply Requirements | +12 V and +5 V |
| Environmental/Temperature | |
| Operating Temperature (ambient, min °C) | 0°C |
| Operating Temperature (drive reported, max °C) | 65°C |
| Non-operating Temperature (ambient, min °C) | -40°C |
| Non-operating Temperature (ambient, max °C) | 70°C |
| Environmental/Acoustics | |
| Vibration, Non-operating: 10 Hz to 500 Hz (Grms) | 2.27 |
| Acoustics, Idle (typical, measured in Idle 1 state) (dBA) | 20 |
| Acoustics, Seek (typical) (dBA) | 26 |
| Environmental/Shock | |
| Shock, Operating 2 ms (Read/Write) (Gs) | 50/50 Gs |
| Shock, Non-operating, 1 ms and 2 ms (Gs) | 200 |
| Physical | |
| Height (mm/in) | 26.11 mm/1.028 in |
| Width (mm/in, max) | 101.85 mm/4.01 in |
| Depth (mm/in, max) | 146.99 mm/5.787 in |
| Weight (g/lb, typical) | 670 g/1.477 lb |
