Specifications | SAS Models |

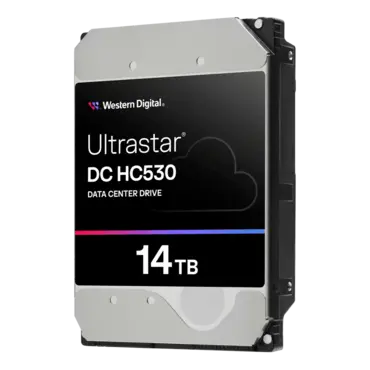

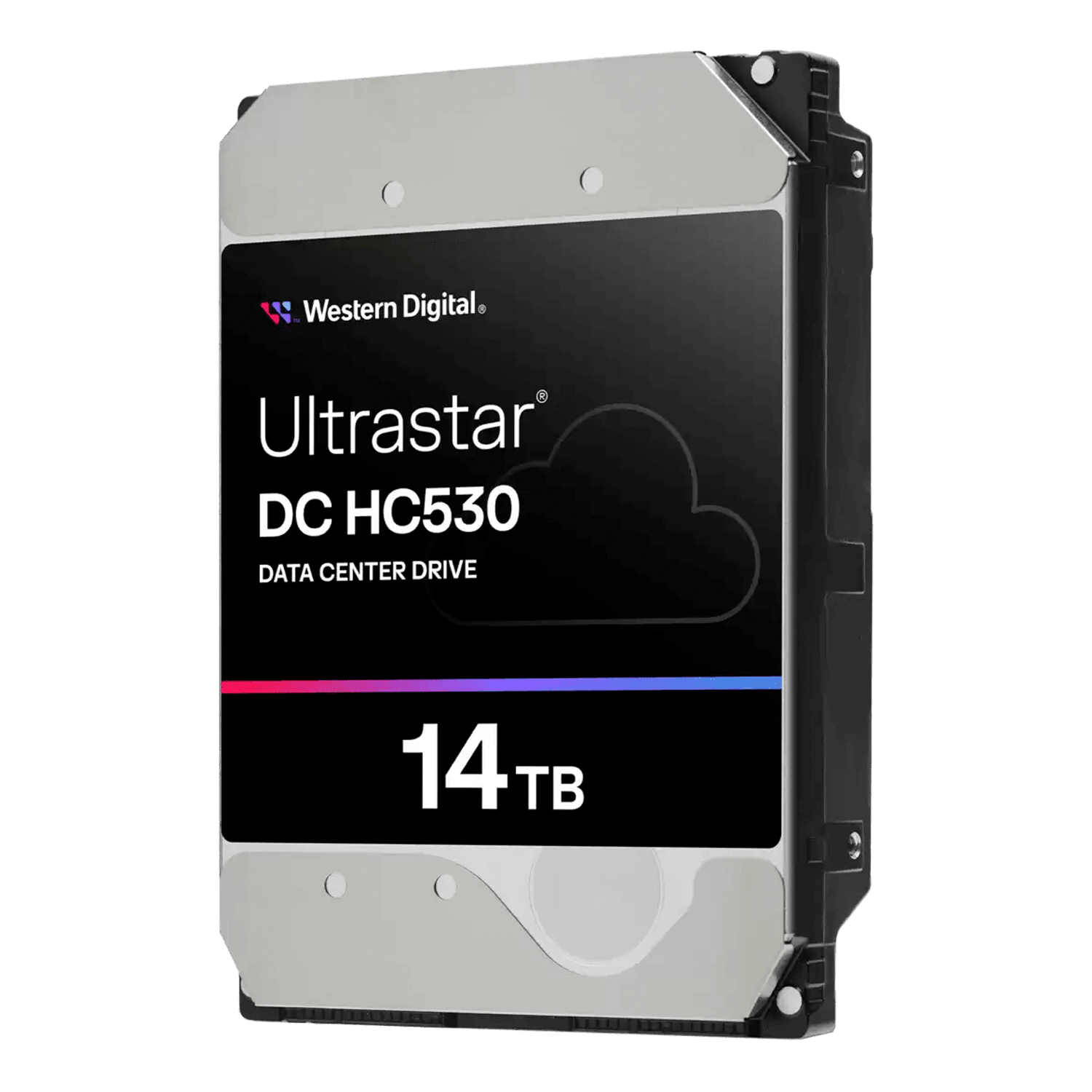

Model Number | WUH721414AL5201 |
Configuration | |
Interface | SATA 6Gb/s |
Capacity | 14TB |
Format: Sector size (bytes) | 512e: 512 |
Areal Density (Gbits/sq. in, max) | 904 |
Performance | |
Data buffer(MB) | 512 |
Rotational speed (RPM) | 7200 |
Latency average (ms) | 4.16 |
Interface transfer rate (MB/s, max) | 600 |
Sustained transfer rate (MiB/s, typical) / (MB/s, typical) |
255 / 267 |
Seek time(read, ms, typical) | 7.5 |
Reliability | |
Error rate (non-recoverable bits read) | 1 in 1015 |
Load/Unload cycles (at 40oC) | 600,000 |
Availability (hrs/day x days/wk) | 24x7 |
MTBF (M hours) | 2.5 |
Annualized Failure Rate(AFR) | 0.35% |
Limited warranty (yrs) | 5 |
