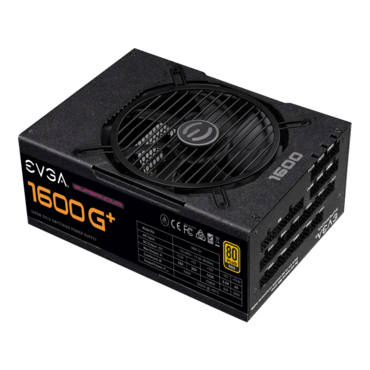

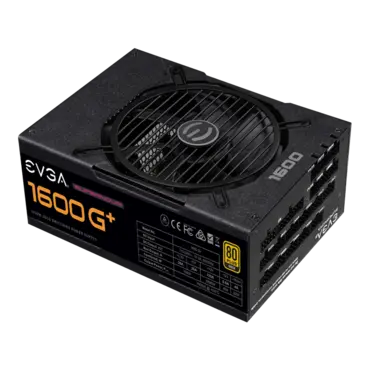

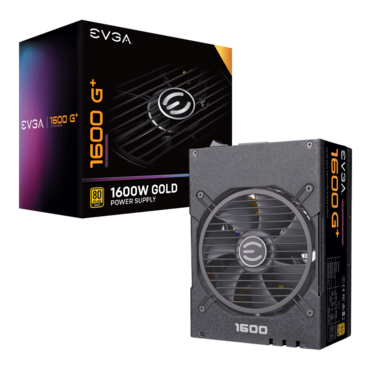

1600 G+, 80 PLUS Gold 1600W, ECO Mode, Fully Modular, ATX Power Supply
Quantity:
- SKU: 13538301
- Manufacturer: EVGA
- MPN: 220-GP-1600-X1
- Availability: CONTACT US
Starting At
$321.98
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- Fully Modular to reduce clutter and improve airflow
- 100% Japanese Capacitors ensure long-term reliability
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
- DC-DC Converter improves 3.3V/5V stability
- Double Ball Bearing fan for exceptional reliability and quiet operation
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
| CABLE LENGTH | |||||
| ATX Cable | 1x 600mm | ||||
| EPS Cable | 2x 750mm | ||||
| PCIe Cable | 4x 750mm, 5x 750mm, 900mm | ||||
| SATA Cable | 2x 550mm, 650mm, 750mm, 850mm, 2x 550mm, 650mm, 750mm | ||||
| Four-Pin Peripheral Cable | 2x 550mm, 650mm, 750mm, 850mm | ||||
| Floppy Adapter | 1x 100mm | ||||
| AC Power | 1x 1800mm | ||||
| Modular Cable Type | Full | ||||

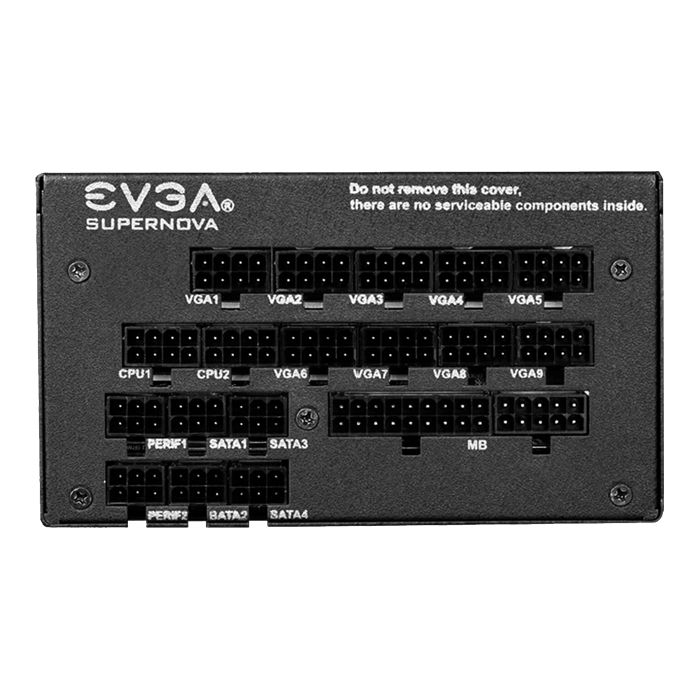

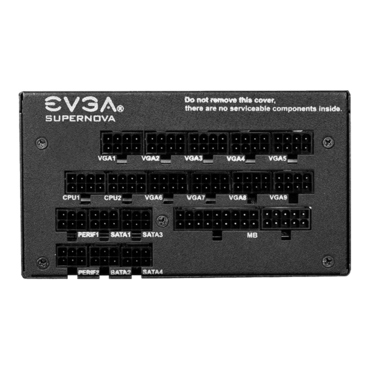

| CONNECTOR QUANTITY | |||||
| 24 Pin ATX | 1x | ||||
| EPS (CPU) | 2x 8pin (4+4) | ||||
| PCIe | 14x 8pin (6+2) | ||||
| SATA | 14x | ||||
| Four-Pin Peripheral | 8x | ||||
| Floppy | 1x | ||||
| INPUT | |||||
| Input Voltage | 115-240V~ | ||||
| AC Input | 17-9A | ||||
| Input Frequency Range | 60/50 Hz | ||||
| Efficiency | 90% or Higher Typical | ||||
| OUTPUT | |||||

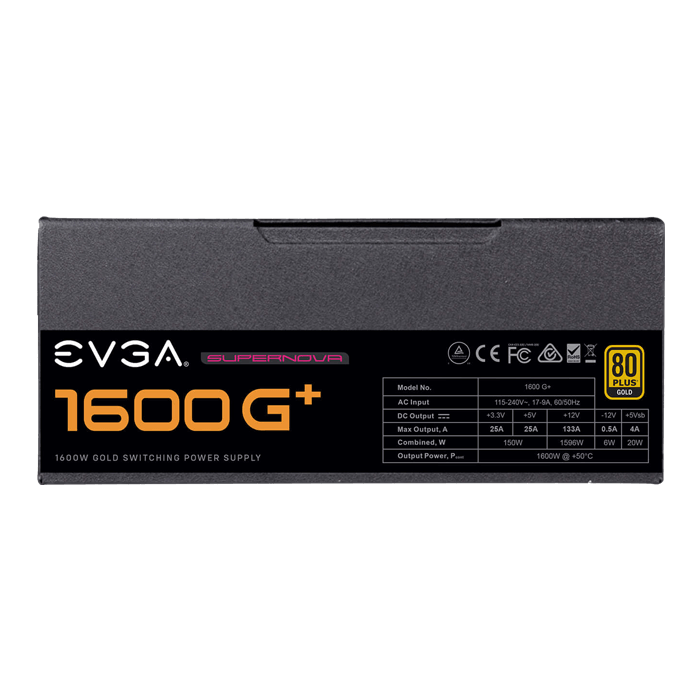

| Rail | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max output | 25A | 25A | 133A | 0.5A | 4A |
| 150W | 1596W | 6W | 20W | ||
| Total | 1600W | ||||
| ADDITIONAL DETAILS | |||||
| Operating Temperature | 0° to 50° C | ||||
| Japanese Capacitors | 100% | ||||
| ECO Mode | Yes | ||||
| MTBF | 100,000 Hours | ||||
| Net Weight | 10 lbs | ||||
| Size | 86mm (H) x 150mm (W) x 200mm (L) | ||||
| Approvals |
TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
||||
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing | ||||
| UPC | 843368052577 | ||||
| EAN | 4250812424280 | ||||
