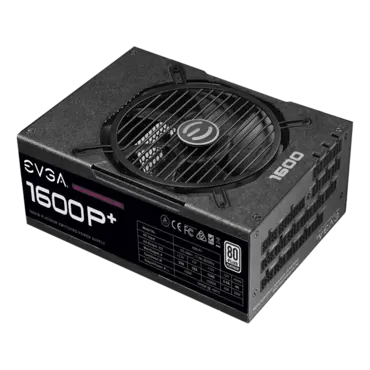

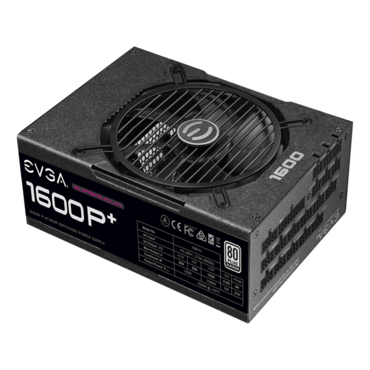

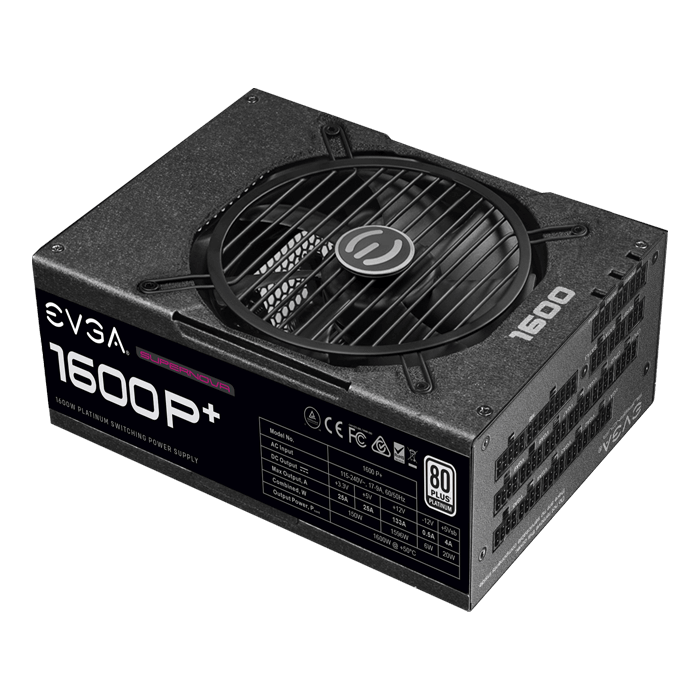

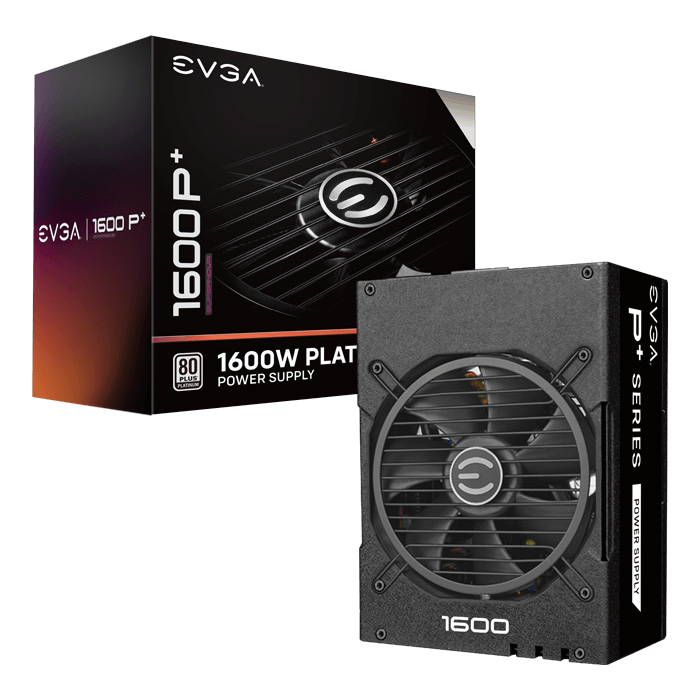

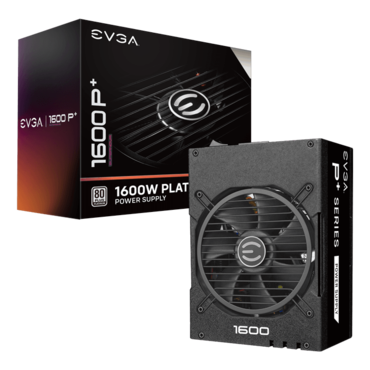

1600 P+, 80 PLUS Platinum 1600W, ECO Mode, Fully Modular, ATX Power Supply

  • SKU: 14695617
  • Manufacturer: EVGA
  • MPN: 220-PP-1600-X1
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At

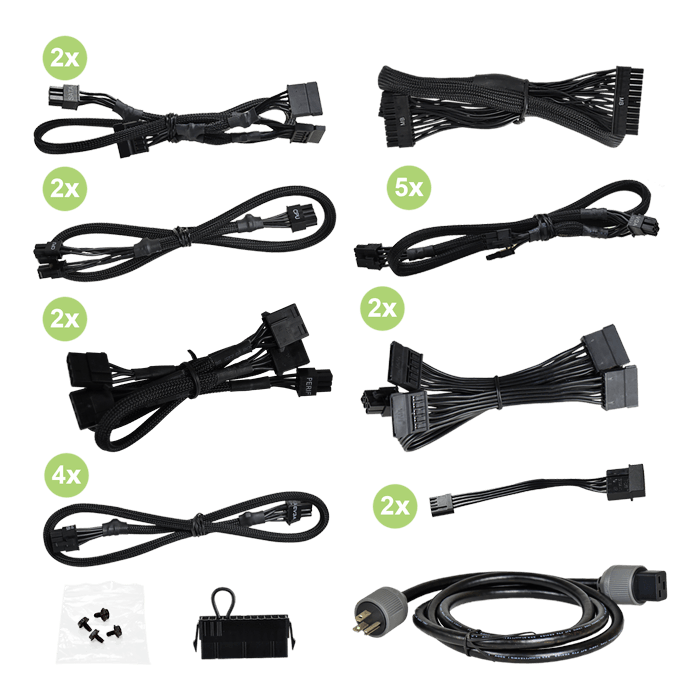

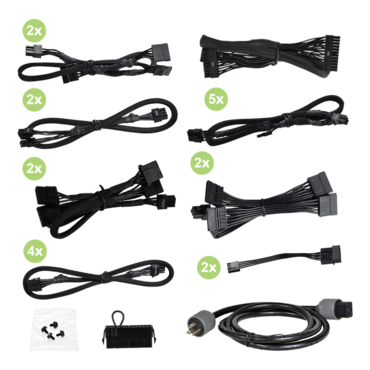

Cable Length
ATX Cable 1x 600mm (m)
EPS Cable 2x 700mm (m)
PCIe Cable 4x 750mm, 5x 750mm, 900mm
SATA Cable 2x 550mm, 650mm, 750mm, 850mm, 2x 550mm, 650mm, 750mm
Four-Pin Peripheral Cable 2x 550mm, 650mm, 750mm, 850mm
Floppy Adapter 2x 100mm
AC Power 2x 1800mm (m)
Modular Cable Type Full

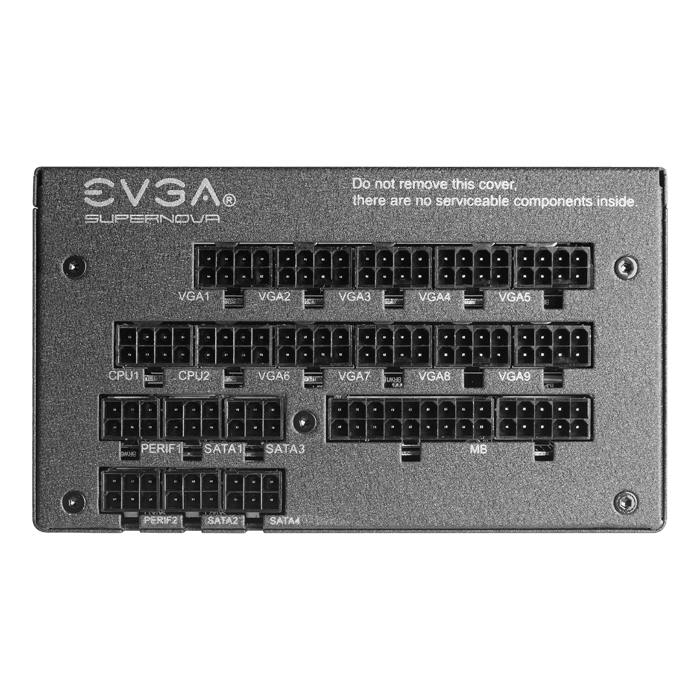

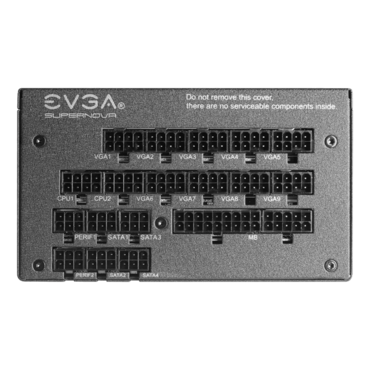

Connector Quantity
24 Pin ATX 1x 24pin
EPS (CPU) 2x 8pin (4+4)
PCIe 14x 8pin (6+2)
SATA 14x
Four-Pin Peripheral 8x
Floppy 2x
Input Voltage 115-240V~
AC Input 17-9A
Input Frequency Range 60/50Hz
Efficiency 92% or Higher Typical

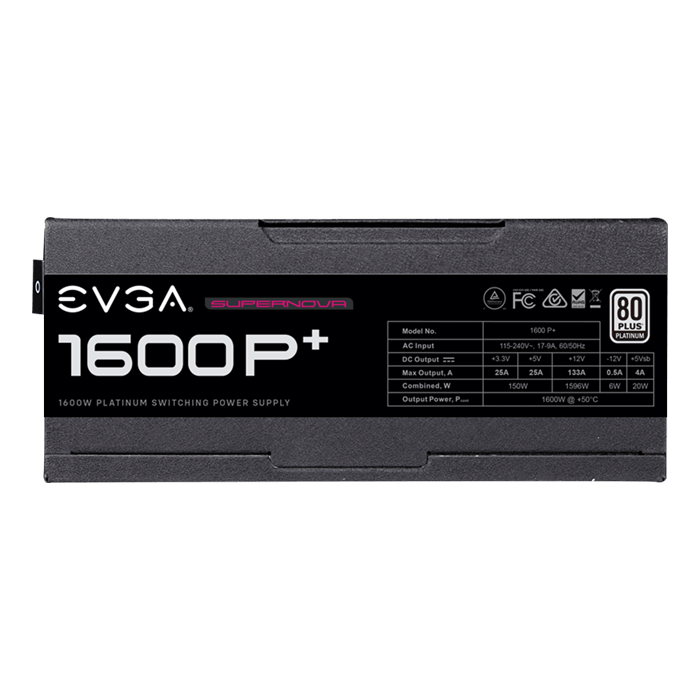

Power Specs
Rail +3.3V +5V +12V -12V +5Vsb
Max Output 25A 25A 133A 0.5A 4A
150W 1596W 6W 20W
Total 1600W
Additional Details
Operating Temperature 0° to 50° C
Japanese Capacitors 100%

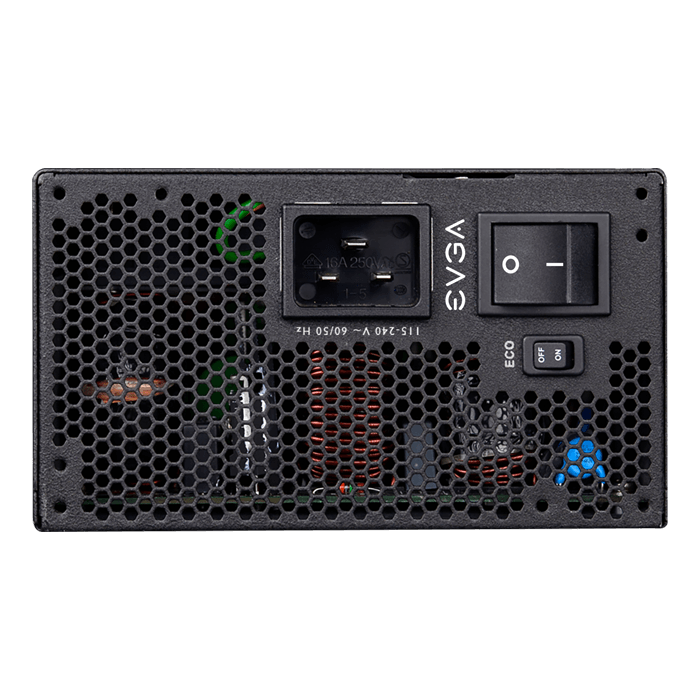

ECO Mode Yes
MTBF 100,000 Hours
Net Weight 10 lbs
Size 86mm (H) x 150mm (W) x 200mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing 135mm Fluid Dynamic Bearing
UPC 843368067632
