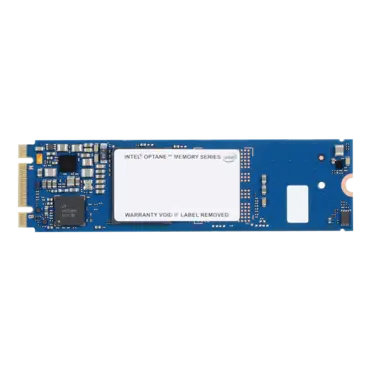

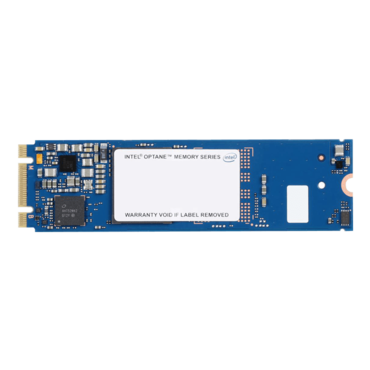

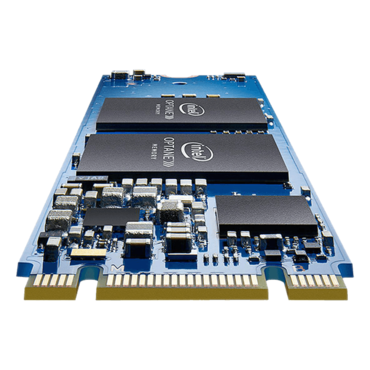

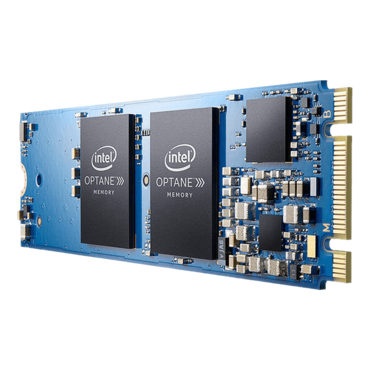

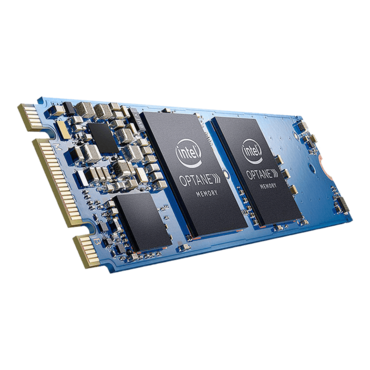

16GB, 900 / 145 MB/s, 3D Xpoint, PCIe NVMe 3.0 x2, M.2 Optane Memory 2280 SSD
Quantity:
- SKU: 11199545
- Manufacturer: INTEL
- MPN: MEMPEK1W016GAXT
- Availability: LOW STOCK
Starting At
$21.43
$37.60
- 16GB (1 x 16GB) Capacity
- M.2 2280 Form Factor
- PCIe NVMe 3.0 x2 Interface
- Up to 145 MB/s Sequential Write Speed
- Up to 900 MB/s Sequential Read Speed
- Up to 35,000 IOPS Random Writes
- Up to 190,000 IOPS Random Reads
- 1.6 Million Hours MTBF
- 182.5TB Lifetime Writes
- Compatible with Intel 7th Gen Processors
| Performance | |
|---|---|
| Capacity | 16 GB |
| Sequential Read | Up to 900 MB/s |
| Sequential Write | Up to 145 MB/s |
| Random Read (8 GB Span) | Up to 190,000 IOPS |
| Random Read (100% Span) | 190,000 IOPS |
| Random Write (8 GB Span) | Up to 35,000 IOPS |
| Random Write (100% Span) | 35,000 IOPS |
| Latency - Read | 7 µs |
| Latency - Write | 18 µs |
| Power - Active | 3.5 W |
| Power - Idle | 1.0 W |
| Reliability | |
| Vibration (Operating) | 2.17 Grms (5-800 Hz), max |
| Vibration (Non-Operating) | 3.13 Grms (5-800 Hz), max |
| Shock (Operating and Non-Operating) | 1500 G / 0.5 ms |
| Temperature (Operating) | 32 to 158°F / 0 to 70°C |
| Endurance Rating (Lifetime Writes) | 182.5 TB |
| Mean Time Between Failures (MTBF) | 1.6 Million |
| Uncorrectable Bit Error Rate (UBER) | < 1 sector per 1015 bits read |
| Package Specifications | |
| Form Factor | M.2 2280 (22 x 80 mm) |
| Interface | PCIe NVMe 3.0 x2 |
| Advanced Technologies | |
| Enhanced Power Loss Data Protection | No |
| Temperature Monitoring and Logging | Yes |
| End-to-End Data Protection | Yes |
| Intel Rapid Start Technology | Yes |
| Intel Remote Secure Erase | No |
