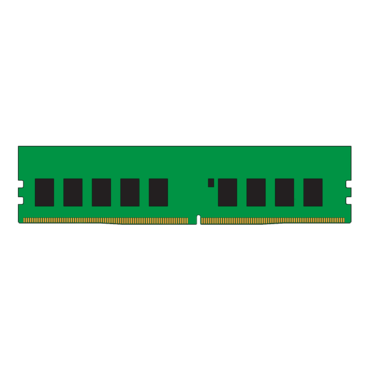

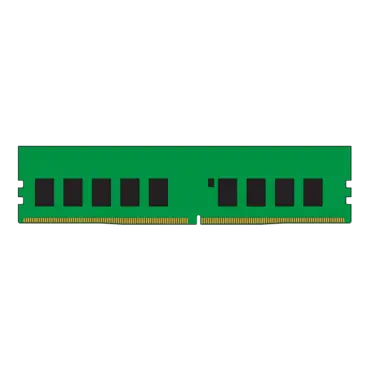

16GB KSM26ED8/16HD Dual-Rank, DDR4 2666MHz, CL19, ECC Unbuffered Memory
Quantity:
- SKU: 13556576
- Manufacturer: KINGSTON
- MPN: KSM26ED8/16HD
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$45.42
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- Temperature sensor with integrated SPD
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
| Brand | Kingston |
| Model | KSM26ED8/16HD |
| Capacity | 16GB |
| Form Factor | DIMM |
| Type | 288-Pin DDR4 SDRAM |
| Speed | DDR4-2666 |
| CAS Latency | 19 |
| Timing | 19-19-19 |
| Voltage | 1.2V |
| ECC | Yes |
| Buffered/Registered | Unbuffered |
| Rank | 2Rx8 |
| Heat Spreader | No |
