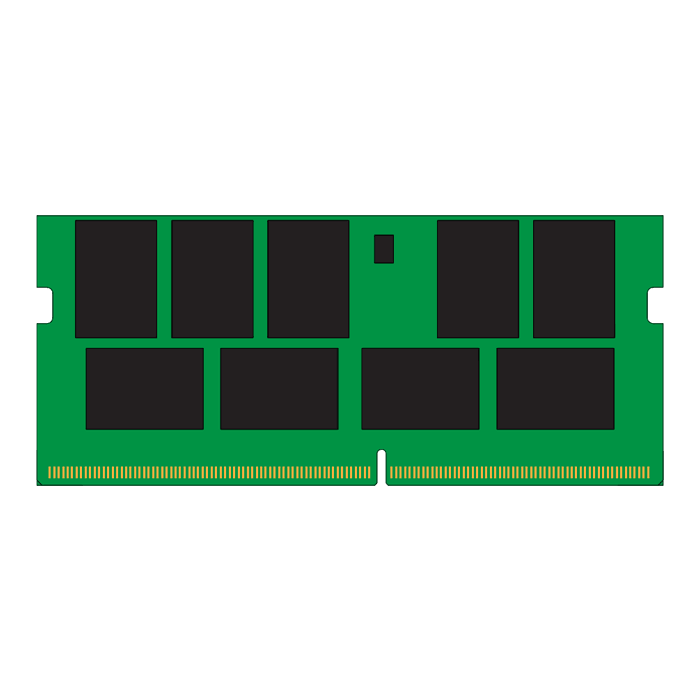

16GB KSM26SED8/16HD DDR4 2666MHz, CL19, ECC Unbuffered, SO-DIMM Memory

  • SKU: 13556560
  • Manufacturer: KINGSTON
  • MPN: KSM26SED8/16HD
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
  • Power Supply: VDD = 1.2V
  • VDDQ = 1.2V
  • VPP = 2.5V
  • VDDSPD = 2.20V to 3.60V
  • Functionality and operations comply with the DDR4 SDRAM datasheet
  • 16 internal banks
  • Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available
  • Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
  • Bi-Directional Differential Data Strobe
  • 8 bit pre-fetch
  • Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
  • Supports ECC error correction and detection
  • On-Die Termination (ODT)
  • Temperature sensor with integrated SPD
  • This product is in compliance with the RoHS directive.
  • Per DRAM Addressability is supported
  • Internal Vref DQ level generation is available
  • Write CRC is supported at all speed grades
  • CA parity (Command/Address Parity) mode is supported
  • RoHS Compliant and Halogen-Free
Brand Kingston
Model KSM26SED8/16HD
Capacity 16GB
Form Factor SODIMM
Type 260-Pin DDR4 SDRAM
Speed DDR4 2666
CAS Latency 19
Timing 19-19-19
Voltage 1.2V
Buffered/Registered Unbuffered
Rank 2Rx8
Heat Spreader No
