16GB ValueRAM Single Rank, DDR4 3200MHz, CL22, SO-DIMM Memory

Quantity:
  • SKU: 13526675
  • Manufacturer: KINGSTON
  • MPN: KVR32S22S8/16
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$33.15
Quantity:
16GB ValueRAM Single Rank, DDR4 3200MHz, CL22, SO-DIMM Memory

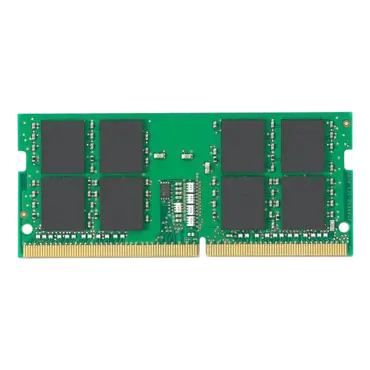

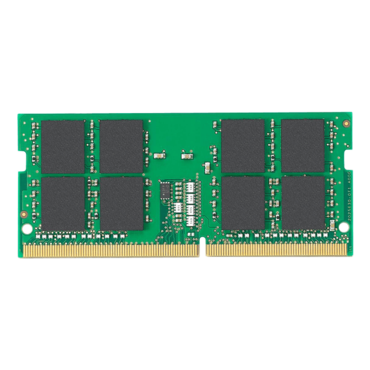

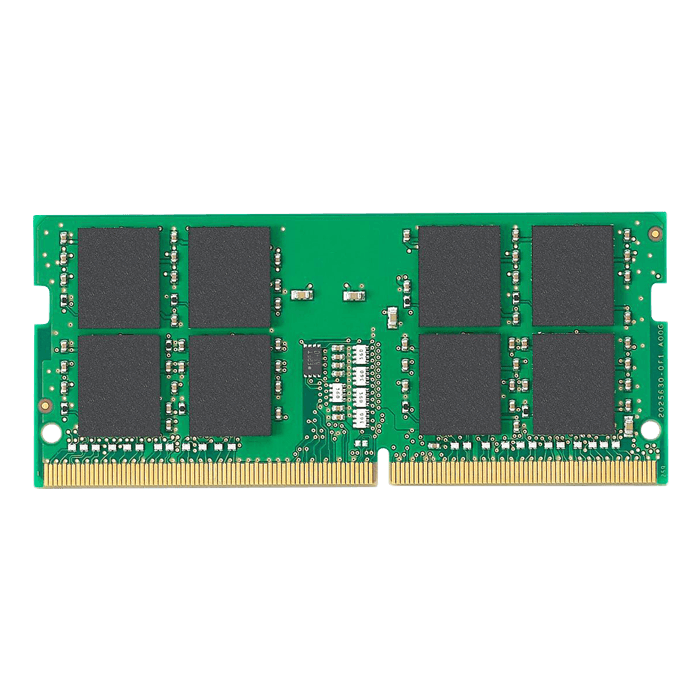

ValueRAM's KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows

  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.18” (30.00mm)
  • RoHS Compliant and Halogen-Free
Brand Kingston
Series ValueRAM
Model KVR32S22S8/16
Capacity 16GB
Type 260-Pin DDR4 SO-DIMM
Speed DDR4 3200MHz
CAS Latency 22
Voltage 1.2V
ECC No
Rank Single Rank
Buffered/Registered Unbuffered
Color N/A
