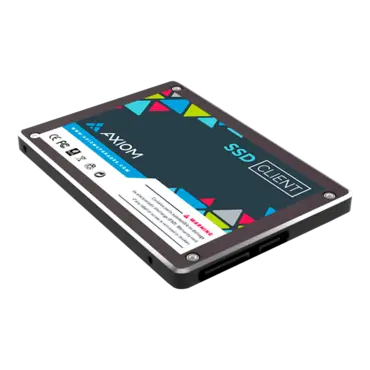

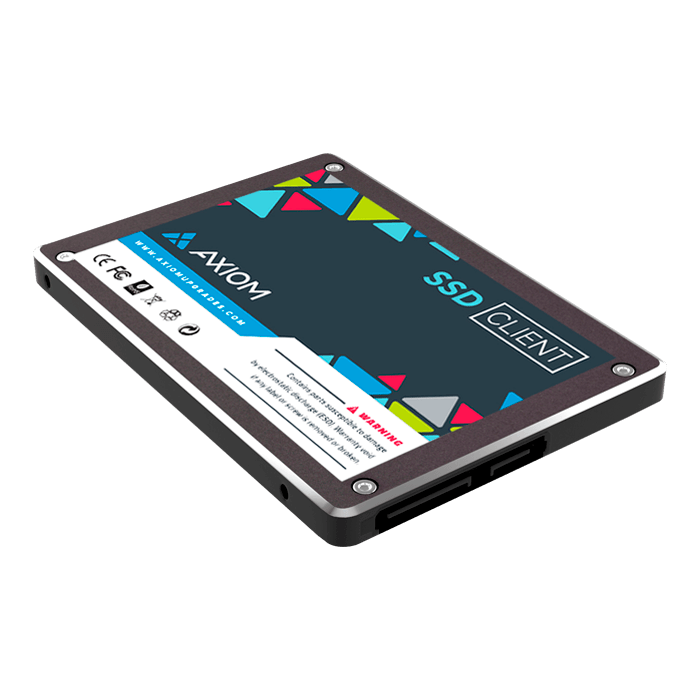

16TB C550h 7mm, 550 / 530 MB/s, 3D QLC NAND, SATA 6Gb/s, 2.5" SSD - TAA Compliant

  • SKU: 17179697
  • Manufacturer: AXIOM
  • MPN: AXG101000
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
Capacity 16TB
Features • Phison S12 controller
• SLC caching accelerates burst performance
• Global wear leveling evens program/erase counts to extend drive lifespan
• StaticDataRefresh technology ensures data integrity
• Intelligent garbage collection routines for advanced free space management
• TRIM command support (OS dependent)
• S.M.A.R.T. support
• LDPC hard and soft decode ECC
• DEVSLP support
• Field-upgradeable firmware
• SATA 3.1 Compliant SATA 6Gb/s backwards compatible with SATA 3Gb/s and 1.5Gb/s
• ATA/ATAPI-8-ACS3 command set compliant
• Industry-standard 512 byte sector support
• Temperature sensor
• Native Command Queuing (NCQ) support with 32 command queue depth
• RoHS-compliant package
• DRAM support
Performance • Sequential Read: Up to 550MB/s
• Sequential Write: Up to 530MB/s
• Random Read: Up to 98K IOPS (4K block size)
• Random Write: Up to 90K IOPS (4K block size)**
Endurance • TBW: Up to 11375TB
• DWPD: 0.62
Security • User selectable ATA password support
• Secure Erase support
Reliability • MTBF: 1.5 million device hours*
• Low Density Parity Check (LDPC) ECC
• Static and dynamic wear leveling
• Uncorrectable Bit Error Rate: =1 sector per 1016 bits read
Electrical • +5VDC (±5%) power supply
• Power Consumption: up to 3.5W (Active), 1.9W (Idle)
Environmental • Operating temperature: 0-70°C
• Non-Operating temperature: -40-85°C
• Operating humidity: 5-95% relative
• Shock: 1500G/0.5ms
• Vibration: 2-500Hz, 3.1G
RoHS Compliant
TAA Compliant
Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment
*Based on Telcordia SR-332 reliability prediction procedure.
**Max sequential speeds measured using ATTO 2.46 at queue depth 10. Max IOPS measured using IOMeter 1.1 at queue depth 32
