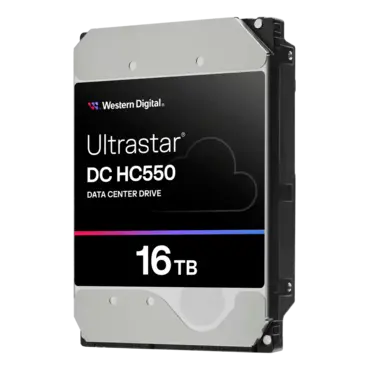

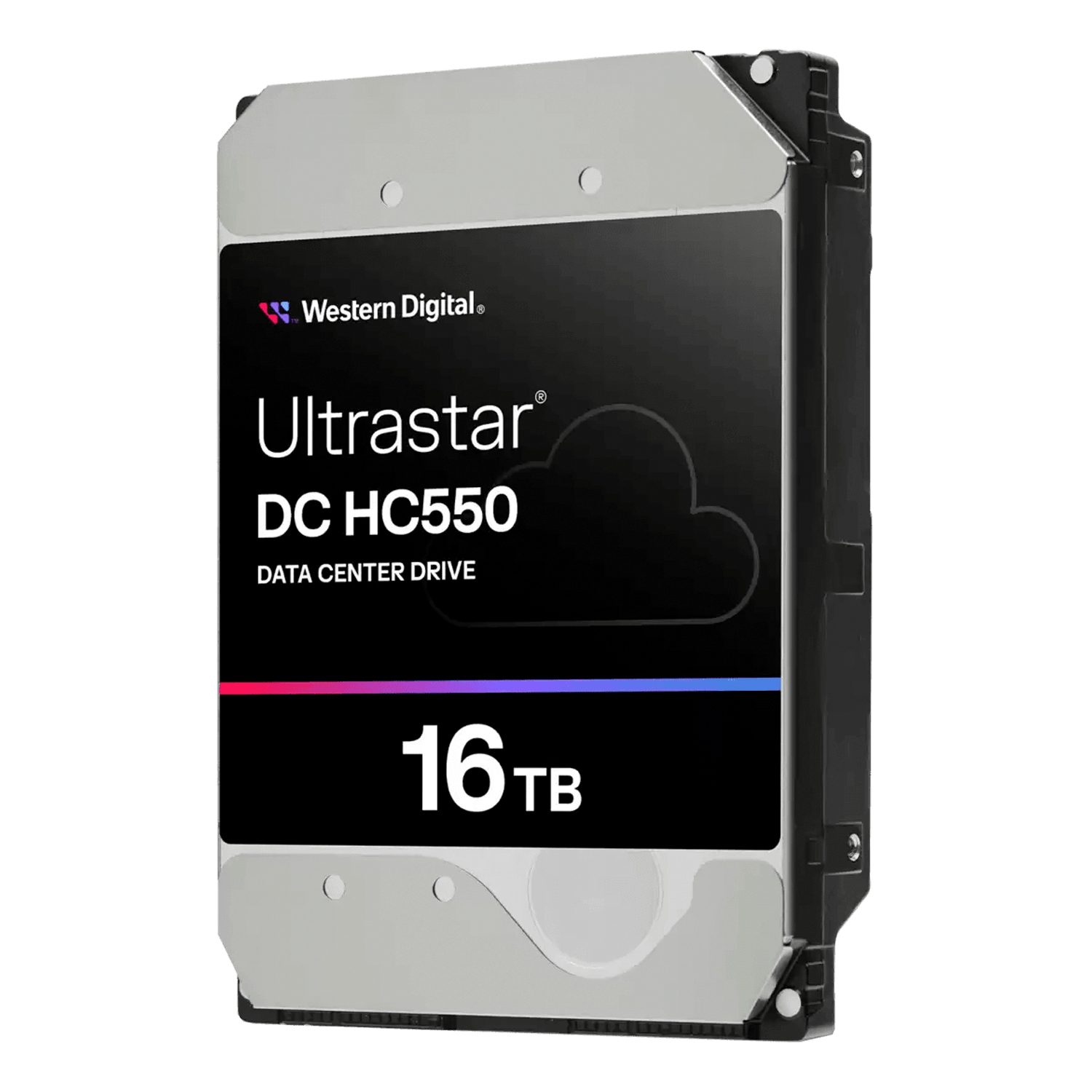

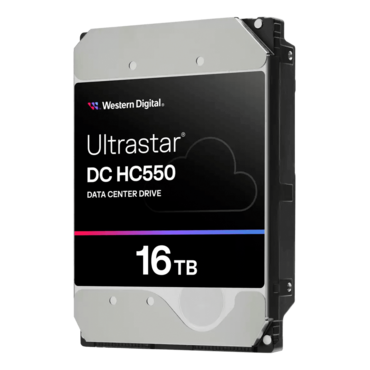

16TB Ultrastar DC HC550 WUH721816AL5201, 7200 RPM, SAS 12Gb/s, 512e/4Kn, 512MB cache, SED, TCG Enterprise SSC, 3.5" HDD

Quantity:
  • SKU: 13452502
  • Manufacturer: WESTERN DIGITAL
  • MPN: 0F38356
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$398.87
Quantity:
Model WUH721816AL5201
Configuration
Interface SAS 12Gb/s
Capacity 16TB
Format: Sector size (bytes) 4Kn: 4096, 4160, 4224
512e: 512, 520, 528
Areal Density (Gbits/sq. in, max) 918 (16TB)
Performance
Data buffer (MB) 512
Rotational speed (RPM) 7200
Latency average (ms) 4.16
Interface transfer rate (MB/s, max) 1200
Sustained transfer rate
(MB/s, max) / (MiB/s, max)
262/250 (16TB)
Reliability
Error rate (non-recoverable bits read) 1 in 1015
Load/Unload cycles (at 40°C) 600,000
Availability (hrs/day x days/wk) 24x7
MTBF (M hours, projected)  2.5
Annualized Failure Rate
(AFR, projected)
0.35%
Workloads Up to 550 TB/year
Limited warranty (yrs) 5
Acoustics
Idle/Operating (Bels, typical) 2.0/3.6
Power
Requirement +5 VDC, +12VDC
Operating (W) 8.8
Idle (W) 5.8
Power consumption efficiency at idle (W/TB) 0.36
Physical Size
z-height (mm) 26.1
Dimensions (width x depth, mm) 101.6 (+/-0.25) x 147
Weight (g, max) 690
Environmental (Operating)
Ambient temperature 5° to 60°C
Shock (half-sine wave, 2ms, G) 50
Vibration (G RMS, 5 to 500Hz) 0.67 (XYZ)
Environmental (Non-operating)
Ambient temperature -40° to 70°C
Shock (half-sine wave, 2ms, G) 250 (2ms)
Vibration (G RMS, 2 to 200Hz) 1.04 (XYZ)
