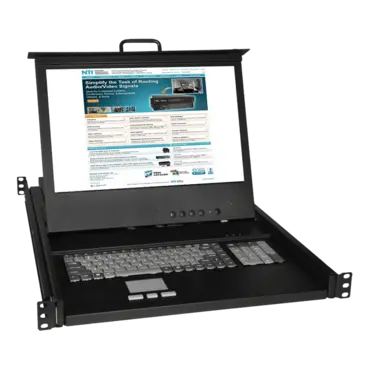

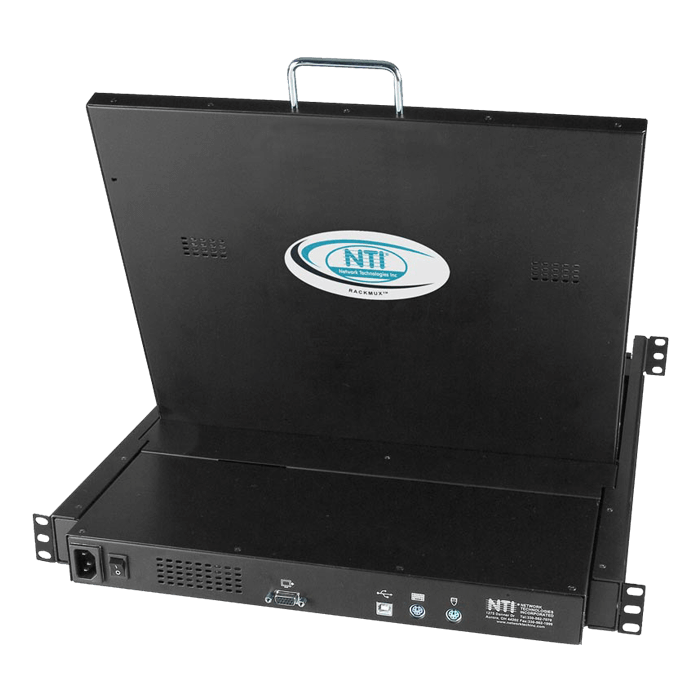

17 inch Hi-Res VGA USB + PS/2 KVM Drawer with Numeric Keypad

SKU: 12804991

Manufacturer: NTI

MPN: rackmux-v17hr-n

Availability: Unknown


Price: $1,397.25
or as low as $45/month
Quantity:

VGA USB PS/2 KVM Drawer Rackmount Keypad Numeric Folding Hi-Res 17 inch

17 inch Hi-Res VGA USB + PS/2 KVM Drawer with Numeric Keypad
  • 17 inch Active Matrix LCD flat panel VGA monitor
  • Compatible with USB and PS/2 computers
  • Supports resolutions to 1920x1200
  • 17-key numeric keypad
  • Specifications
  • Host Interface
    • Compatible with PS/2, UNIX and USB computers.
    • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
    • One female 15-pin HD, one female USB Type B, and two female 6-pin minDIN connectors.
    • Use with NTI Multi-Platform KVM Switches to control multiple PC, SUN and MAC computers.
    Monitor
    • Forward-folding 17" Active Matrix TFT LCD flat panel VGA monitor.
    • Resolution:
      • RACKMUX-V17-N: 1280x1024
      • RACKMUX-V17HR-N: 1920x1200
    • Tilt: up to 120°.
    • Frequency:
      • RACKMUX-V17-N:
        • Horzontal: 31 to 80 KHz
        • Vertical: 55 to 76 Hz.
      • RACKMUX-V17HR-N:
        • Horizontal: 30 to 80 KHz
        • Vertical: 56 to 75 KHz
    • Brightness:
      • RACKMUX-V17-N: 300 nits
      • RACKMUX-V17HR-N: 275 nits
    • Contrast Ratio:
      • RACKMUX-V17-N: 500:1
      • RACKMUX-V17HR-N: 800:1
    • Supports DDC1 and DDC2B protocols.
    • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
    Cables
    • 6-foot (1.8-meter) 15-pin HD VGA male to male cable included.
    • 6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
    • 6-foot (1.8-meter) power supply cable included.
    Devices
    • Keyboard available in: English (US).
      • 100-key (US) keyboard with numeric keypad.
    • Three button touchpad mouse.
    • Front panel USB 1.1 port to connect external USB devices.
      • Female USB Type A connector.
      • KVM drawer must be connected to a USB-enabled computer.
    MTBF
    • RACKMUX-V17-N: 40,530 hrs
    Power
    • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
    • Available power cord lengths: 1/1.5/3/6 feet
    • Power Consumption: 30 W
    • Maximum Inrush Current: 30A
    Environmental
    • Operating temperature: 32 to 104°F (0 to 40°C).
    • Storage temperature: -4 to 140°F (-20 to 60°C).
    • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
    Dimensions
    • WxDxH: 19x23.9x1.75 Inches. (483x607x44 millimeters)
      • Handle adds an additional 1.5" (38 mm) to the depth when monitor is in closed position.
    • Weight: 26 lbs. (12 kg)
    • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
    • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
    Regulatory Approvals
    • CE, RoHS
    Warranty
    • Two years
