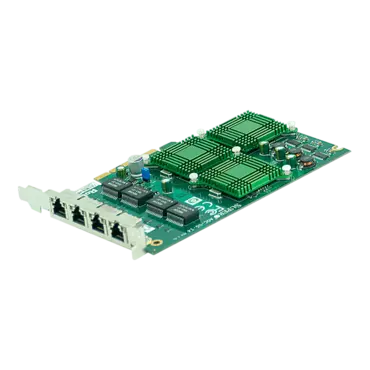

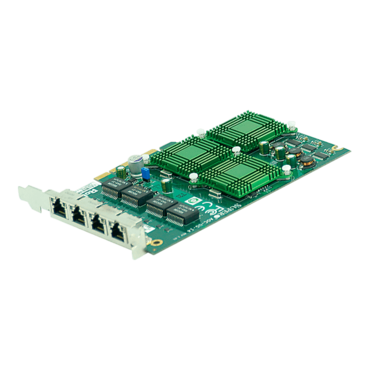

1Gbps Universal I/O Ethernet Network Adapter, AOC-UG-I4, (4x RJ45)

  • SKU: 717583
  • Manufacturer: SUPERMICRO
  • MPN: AOC-UG-i4
  • Availability: LOW STOCK
Starting At
1Gbps Universal I/O Ethernet Network Adapter, AOC-UG-I4, (4x RJ45)

AOC-UG-i4 is a high performance 4-port Supermicro Universal I/O (UIO) Gigabit Ethernet LAN card based on the Intel® 82571EB Gigabit Ethernet Controller. It interfaces with Supermicro UIO motherboard through a PCI Express UIO slot to maximize the I/O bandwidth. The dedicated input/output connections of the PCI-e ensure priority performance on each port without bus-sharing. The AOC-UG-i4 improves performance especially in multi-processor systems by balancing network loads across multiple CPU and processing cores.

  • UIO Full-height Form Factor *
  • Dual Intel® 82571EB Dual-port Ethernet Controllers
  • PCI-E x8 Connector
  • Four RJ45 Jacks
  • Intel® I/O Acceleration Technology (I/OAT)
  • Jumbo Frame Support for up to 9KB Packets
  • Wake-on-LAN (WOL) Support (Port A only)
  • Intel® PROSet Utility for Windows?Device Manager
  • Full-height half-length PCI-E x8 UIO card that is optimized for Supermicro UIO motherboards and servers
  • Four Gigabit Ethernet ports that maximize connectivity in small spaces through RJ45 connectors
  • Dual Gigabit Ethernet LAN chips that ensure priority performance on each port without bus sharing
  • Dual Intel® 82571 dual-port Ethernet LAN chips
  • PCI-E x8 interface through PLX through PEX 8518
  • Intel® I/OAT accelerates I/O with higher throughput and lower CPU utilization
  • Caches up to 64 packet descriptors (per queue)
  • Integrated PHY for 10/100/1000 Mbps operation
  • IEEE 802.3ab Auto-Negotiation support
  • IPv6 Offloading
  • Support Pre-boot Execution Environment (PXE) on Supermicro UIO motherboards and servers
  • Wake-On-LAN (WOL) support (Port A only)
  • RoHS 6/6 environmental standard compliant
  • Intel® PROSet Utility for Windows® supports network teaming
  • OS supported: Windows® 2000/XP/2003/2008/Vista, RedHat and SuSE Linux, Netware, FreeBSD
  • Operating temperature: 0°C to 55°C
