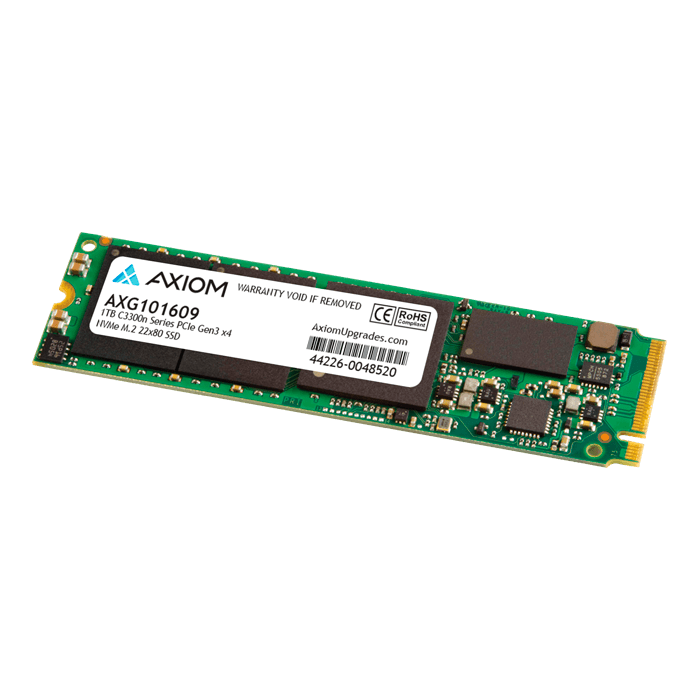

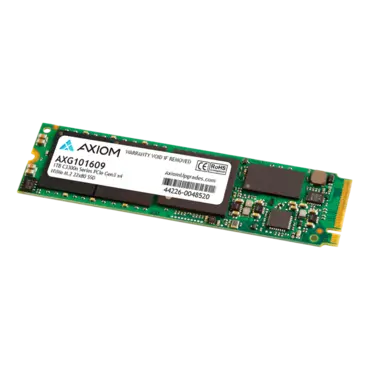

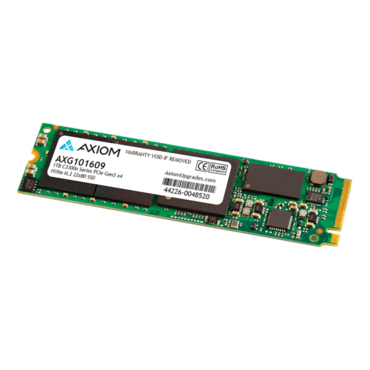

1TB C3300n, 3300 / 2900 MB/s, 3D NAND, PCIe NVMe 3.0 x4, M.2 2280 SSD - TAA Compliant

Quantity:
  • SKU: 15948594
  • Manufacturer: AXIOM
  • MPN: AXG101609
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$98.77
Quantity:
Capacity 1TB
Features • Innogrit IG5216 controller
• SLC caching accelerates burst performance
• Global wear leveling evens program/erase counts to extend drive lifespan
• StaticDataRefresh technology ensures data integrity
• Intelligent garbage collection routines for advanced free space management
• NVMe Deallocate support
• Host Memory Buffer (HMB) support (OS dependent)
• S.M.A.R.T. support
• Performance optimized LDPC engine
• PCIe revision 3.1 compliant
• NVMe protocol 1.3 compliant
• PCIe Gen3 x4
• Industry-standard 512 byte sector support
• RoHS-compliant package
• 3D NAND
Performance • Sequential Read: Up to 3300MB/s
• Sequential Write: Up to 2900MB/s
• Random Read: Up to 336K IOPS (4K block size)
• Random Write: Up to 288K IOPS (4K block size)
Endurance • TBW: Up to 500TB
• DWPD: 0.46 (3y)
Security • NVMe Security Erase support
Reliability • MTBF: 1.5 million device hours*
• Low Density Parity Check (LDPC) ECC
• Static and dynamic wear leveling
• Uncorrectable Bit Error Rate: <1 sector per 1015 bits read
Electrical/Mechanical • +3.3VDC (±5%) power supply
• Power Consumption: up to 4.75W (Active), 0.3W (Idle)
• Dimensions: M.2: 22.0 mm x 80.0 mm
• Weight: 0.088lb
Environmental • Operating temperature: 0-70°C
• Non-Operating temperature: -40-85°C
• Operating humidity: 5-95% relative
• Shock: 1500G/0.5ms
• Vibration: 2-500Hz, 3.1G
RoHS Compliant
TAA Compliant
Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment. Specifications are subject to change without notice.
*Based on Telcordia SR-332 reliability prediction procedure.
