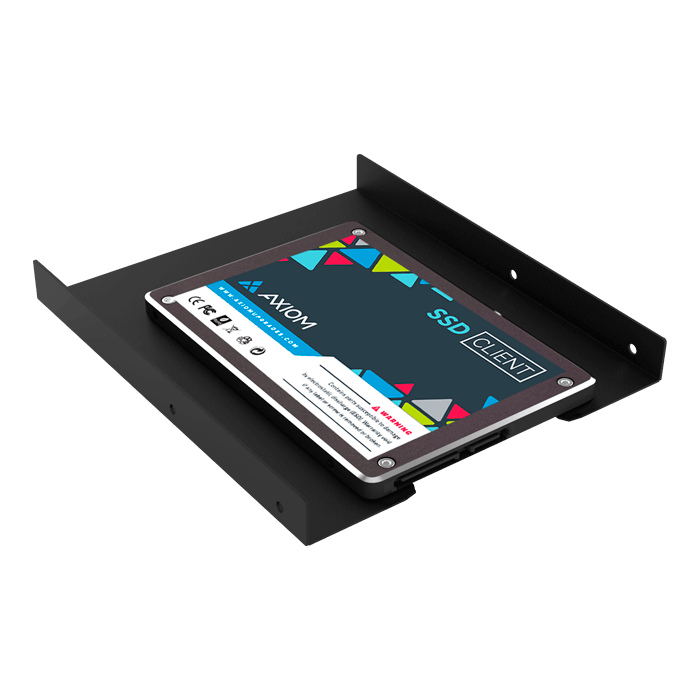

1TB C550n 7mm, 550 / 505 MB/s, 3D TLC NAND, SATA 6Gb/s, 2.5" (in 3.5" carrier) SSD - TAA Compliant

  • SKU: 13047552
  • Manufacturer: AXIOM
  • MPN: AXG99251
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
Capacity 1TB
Features • Silicon Motion 3D TLC Flash controller
• StaticDataRefresh technology ensures data integrity
• SLC caching accelerates burst performance
• Device Sleep mode (DEVSLP) supported for ultra low idle power consumption
• SATA 3.0 (6Gb/s) interface (backwards compatible with SATA 2.0 (3Gb/s) and SATA 1.0 (1.5Gb/s))
• Supports Security Erase
• TRIM support (OS/driver support required)
• High-reliability 3D TLC NAND flash
• S.M.A.R.T. support
• Temperature sensor
Performance • Sequential Read: Up to 550MB/s
• Sequential Write: Up to 505MB/s
• Random Read: Up to 73K IOPS (4K block size)
• Random Write: Up to 80K IOPS (4K block size)**
Endurance • TBW: Up to 625TB
• DWPD: 0.57
Security • User selectable ATA password support
• Secure Erase support
Reliability • MTBF: 1.5 million device hours*
• Low Density Parity Check (LDPC) ECC
• Static and dynamic wear leveling
• Uncorrectable Bit Error Rate: =1 sector per 1016 bits read
Electrical • +5VDC (±5%) power supply
• Power Consumption: up to 2.1W (Active), 0.09W (Idle)
Environmental • Operating temperature: 0-70°C
• Non-Operating temperature: -40-85°C
• Operating humidity: 5-95% relative
• Shock: 1500G/0.5ms
• Vibration: 2-500Hz, 3.1G
RoHS Compliant
TAA Compliant
Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment
*Based on Telcordia SR-332 reliability prediction procedure.
**Max sequential speeds measured using ATTO 2.46 at queue depth 10. Max IOPS measured using IOMeter 1.1 at queue depth 32
