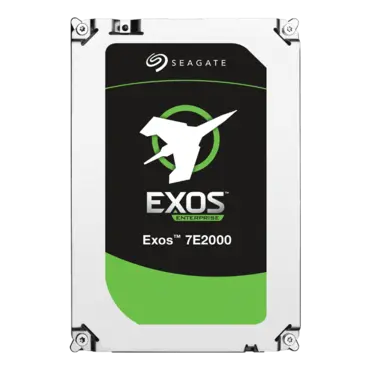

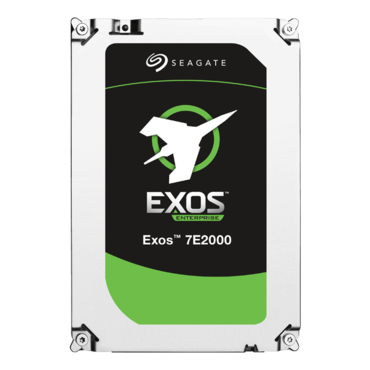

1TB Exos® 7E2000 ST1000NX0313, 7200 RPM, SATA 6Gb/s, 512e, 128MB cache, 2.5" HDD
- SKU: 9009102
- Manufacturer: SEAGATE
- MPN: ST1000NX0313
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$97.38
| Specifications | 512 Emulation |
| Capacity | 1TB |
| Standard Model Numbers | ST1000NX0313 |
| Features | |
| Interface | SATA 6Gb/s |
| PowerChoice™ Technology | Yes |
| Protection Information | No |
| Low Halogen | Yes |
| Seagate RAID Rebuild® | Yes |
| Reliability/Data Integrity | |
| MTBF | 2,000,000 hr |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.44% |
| Non-recoverable Read Errors per Bits Read, Max | 1 sector per 10E15 |
| Pow er-On Hours per Year (24×7) | 8,760 |
| Sector Size (Bytes per Logical Sector) | 512 |
| Limited Warranty (years) | 5 |
| Performance | |
| Spindle Speed (RPM) | 7,200 RPM |
| Cache, Multi-segmented (MB) | 128 |
| Interface Access Speed (Gb/s) | 6.0, 3.0, 1.5 |
| Max. Sustained Transfer Rate OD (M B/s) | 136MB/s |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotational Vibration @ 1800 H z (rad/s²) | 16 |
| POWER CONSUMPTION | |
| Average Idling Power (W) | 3.51 |
| Typical Operating, Random Read (W) | 4.74 |
| PowerChoice(TM) Technology (Standby) (W) | 1.14 |
| Power Supply Requirements | +12 V and +5 V |
| Environmental | |
| Temperature, Operating (°C) | 5°C – 55°C |
| Vibration, Operating, 5Hz to 500Hz (Grms) | 0.5 |
| Vibration, Non-operating, 5Hz to 500Hz (Grms) | 3 |
| Shock, Operating, 2 ms (Gs) | 25 |
| Shock, Non-operating, 2 ms (Gs) | 400 |
| Acoustics, typical - idling (bels) | 2.8 |
| Acoustics, typical - seek (bels) | 3.2 |
| Physical | |
| Height (in/mm) | 0.591 in/15 m m |
| Width (in/mm) | 2.76 in/70.1 m m |
| Depth (in/mm) | 3.955 in/100.45 m m |
| Weight (lb/g) | 190 g/0.419 lb |
