Home › Components › Core Components › Motherboards › Server and Workstation Motherboards

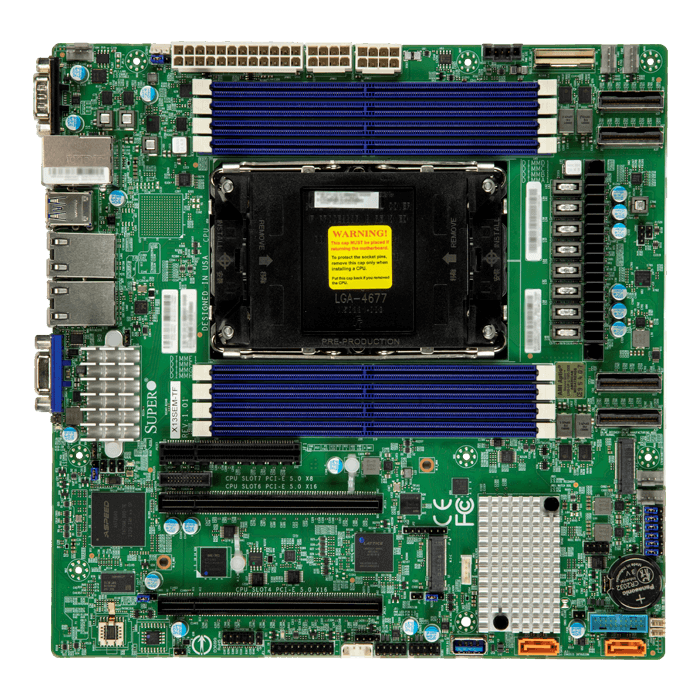

X13SEM-TF, Intel® C741, LGA 4677, DDR5-5600 2TB ECC RDIMM / 8, VGA, M.2 / 2, USB 3.2 Gen1 / 2, 10GbLAN / 2, microATX Retail
X13SEM-TF, Intel® C741, LGA 4677, DDR5-5600 2TB ECC RDIMM / 8, VGA, M.2 / 2, USB 3.2 Gen1 / 2, 10GbLAN / 2, microATX Retail

X13SEM-TF, Intel® C741, LGA 4677, DDR5-5600 2TB ECC RDIMM / 8, VGA, M.2 / 2, USB 3.2 Gen1 / 2, 10GbLAN / 2, microATX Retail

  • SKU: 15783474
  • Manufacturer: SUPERMICRO
  • MPN: MBD-X13SEM-TF-O
  • Availability: CONTACT US
Product SKUs MBD-X13SEM-TF
Physical Stats
Form Factor
  • microATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
  • Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
  • *BIOS 2.1 or above is required to support 5th Gen Intel® Xeon® Scalable processors
Core
  • Up to 64 cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC RDIMM, DDR5-5600MHz
  • **24GB & 48GB DIMM only support 1 DPC.
  • *24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel® Xeon-SP CPU.
Memory Type
  • 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
DIMM Sizes
  • 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel® C741
SATA
  • Intel® C741 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 Aspeed AST2600 BMC port(s)
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X550

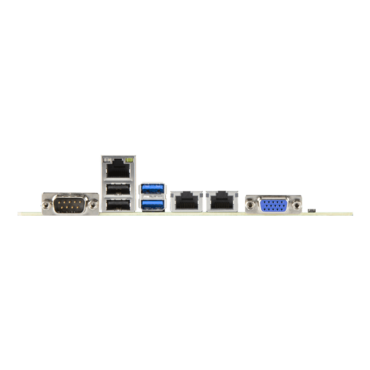

Input / Output
SATA
  • 10 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 10 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 2 PCIe 5.0 x16,
  • 1 PCIe 5.0 x8,
  • 4 PCIe 5.0 x8 MCIO connector
M.2
  • M.2 Interface: 2 PCIe 4.0 x2
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5
  • UEFI 2.8 or above
Management
Software
  • Redfish API, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
  • 5 fans with tachometer status monitoring
  • Overheat LED indication
Other Features
  • WOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
