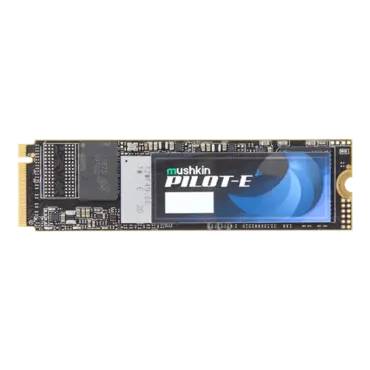

1TB PILOT-E, 3500/3000 MB/s, 3D TLC NAND, PCIe NVMe 3.0 x4, M.2 2280 SSD
Quantity:
- SKU: 13230365
- Manufacturer: MUSHKIN
- MPN: MKNSSDPE1TB-D8
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$101.86
| General | |
| Brand | Mushkin Enhanced |
| Series | Pilot-E |
| Model | MKNSSDPE1TB-D8 |
| Type | M.2 (2280) Internal Solid State Drive (SSD) |
| Used For | Consumer |
| UPC | 846651028235 |
| Physical | |
| Form Factor | M.2 (2280) |
| Capacity | 1TB |
| Memory Components | 3D TLC |
| Interface | PCIe Gen3 x4 NVMe 1.3 |
| Controller | Silicon Motion SM2262EN |
| Height | 3.8mm |
| Width | 80.0mm |
| Depth | 22.0mm |
| Weight | 7g |
| Performance | |
| Max Sequential Read | Up to 3500MB/s |
| Max Sequential Write | Up to 3000MB/s |
| 4KB Random Read | Up to 331,000 |
| 4KB Random Write | Up to 353,000 |
| Seek Time | <0.1ms |
| TBW | 600TB |
| MTBF | 1,500,000 hours |
| Features | |
| TCG Opal, AES, and eDrive (IEEE1667) encryption support. Self-encrypting drive (SED) | |
| MEDS (Mushkin Enhanced Data-protection Suite) ensures valuable data is protected | |
| - Built-in LDPC ECC provides the most-powerful data correction level in use today | |
| - Internal flash RAID provides additional error correction capability | |
| - End-to-end data path protection | |
| - Data shaping increases endurance | |
| - StaticDataRefresh ensures data integrity | |
| - Global wear-leveling evens program/erase counts across data blocks to extend lifespan | |
| DRAM on board for performance optimization | |
| SLC caching accelerates burst performance | |
| L1.2 power mode support for ultra-low idle power consumption | |
| NVMe Security Erase support | |
| NVMe Deallocate function support (NVMe equivalent of TRIM command) | |
| High-reliability 3D TLC NAND flash | |
| S.M.A.R.T. support | |
| Temperature sensor | |
| RoHS, FCC, CE | |
| Power Consumption (Idle): 0.3W | |
| Power Consumption (Active Max): 5.7W | |
| Max sequential speeds and IOPS measured using CrystalDiskMark 6.0.2 x64. | |
| Environmental | |
| Operating Temperature | 0°C-70°C |
| Storage Temperature | -40°C-85°C |
| Max Shock Resistance | 1500G |
| Power Supply | 3.3V DC |
| Warranty | 3-year limited warranty* or 600TB TBW (Terabytes Written) |
