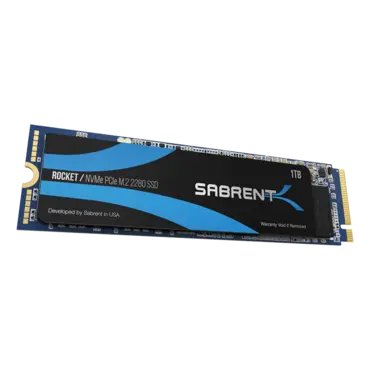

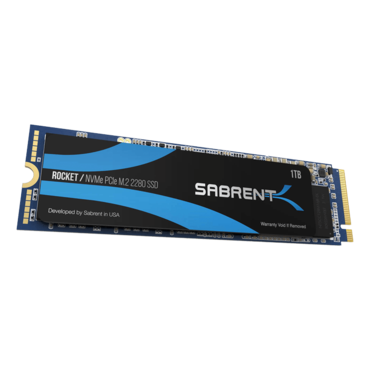

1TB Rocket, 3450 / 3000 MB/s, 3D TLC NAND, PCIe NVMe 3.1 x4, M.2 2280 SSD
Quantity:
- SKU: 13252298
- Manufacturer: SABRENT
- MPN: SB-ROCKET-1TB
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$75.45
1TB Rocket, 3450 / 3000 MB/s, 3D TLC NAND, PCIe NVMe 3.1 x4, M.2 2280 SSD
The Sabrent 1TB ROCKET NVMe PCIe M.2 2280 Internal SSD High Performance Solid State Drive (SB-ROCKET-1TB) delivers all the advantages of flash disk technology with PCIe Gen3 x4 interface and it is fully compliant with the standard Next Generation Form Factor (NGFF), commonly known as M.2.
Based on 3D TLC NAND Flash memory, its performance speeds can reach up to 3400 MB/s (read) and 3000 MB/s (write). Power consumption is much lower than traditional hard drives, making it the best embedded solution for new systems.
- M.2 PCIe Gen3 x 4 Interface.
- PCIe 3.1 Compliant / NVMe 1.3 Compliant.
- Power Management Support for APST / ASPM / L1.2.
- Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.
- Advanced Wear Leveling, Bad Block Management, and Over-Provision.
| Model | |
| Brand | Sabrent |
| Series | ROCKET NVMe |
| Model | SB-ROCKET-1TB |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Details | |
| Form Factor | M.2 2280 |
| Capacity | 1TB |
| Memory Components | 3D TLC NAND |
| Interface | PCI-Express 3.1 x4 |
| Controller | Phison |
| Performance | |
| Max Sequential Read | Up to 3400 MBps |
| Max Sequential Write | Up to 3000 MBps |
| 4KB Random Read | Up to 650,000 IOPS |
| 4KB Random Write | Up to 640,000 IOPS |
| MTBF | 1,800,000 hours |
| HeatSink | No |
| Environmental | |
| Power Consumption (Active) |
R: 6.6W W: 5.3W |
| Operating Temperature | 0°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Max Shock Resistance | 1500G |
