1TB SPATIUM M480, 7000 / 5500 MB/s, 3D NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD

Quantity:
  • SKU: 14623260
  • Manufacturer: MSI
  • MPN: SM480N1TB
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$87.38
Quantity:

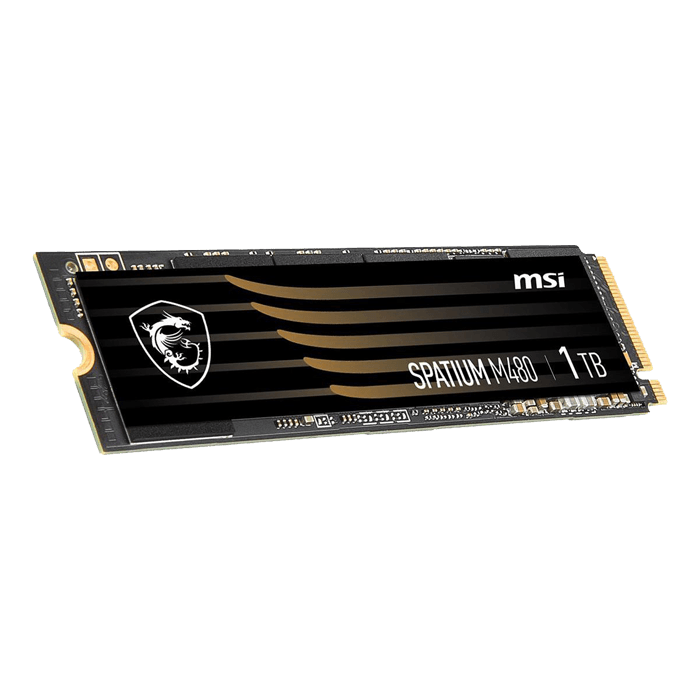

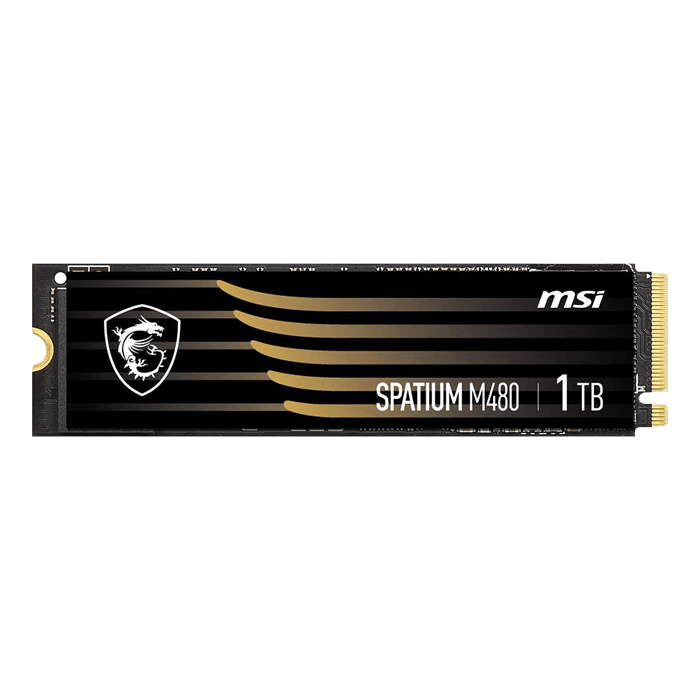

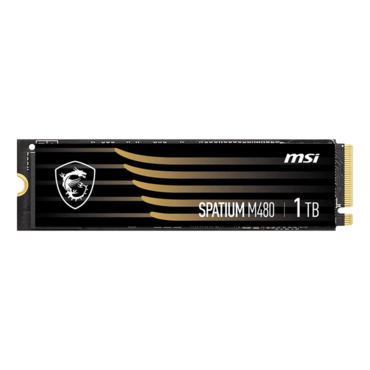

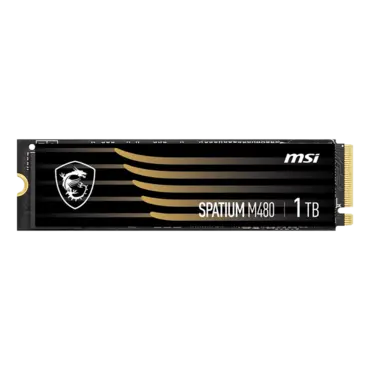

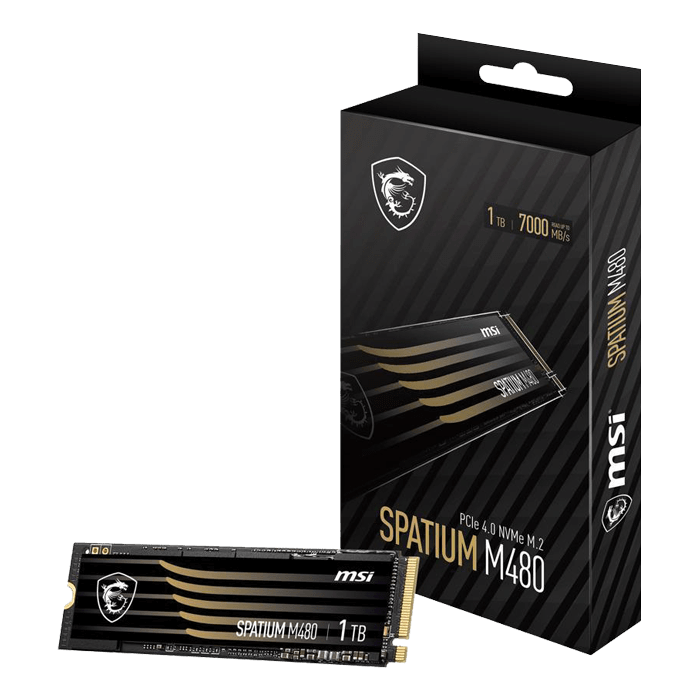

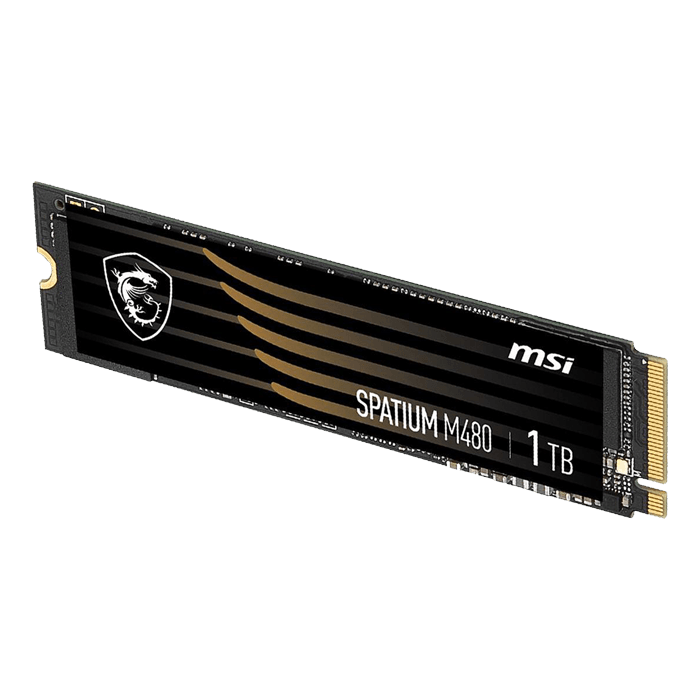

1TB SPATIUM M480, 7000 / 5500 MB/s, 3D NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD

From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM. Optimized for the PCIe Gen4 interface, SPATIUM M480 (SM480N1TB) SSD reaches read/write speeds up to 7000/6800 MB/s, allowing for rapid data transfer and shortened game load times. The latest 3D NAND flash technology brings dense storage in a compact design and allows SPATIUM storage capacities up to 2TB.

  • PCIe Gen4x4 interface and complies with the NVMe 1.4 standard
  • Sequential Read speeds up to 7000MB/s and Write speeds up to 6800MB/s
  • Up to 1400 TBW
  • Built-in data security and error-correction capabilities
  • 500GB to 2TB capacities in M.2 2280 form factor
  • Suitable for both desktop and notebook
  • 5-Year Warranty
MANUFACTURER NUMBER SM480N1TB
PRODUCT CONDITION New
INTERFACE TYPE PCIe Gen4x4, NVMe 1.4
COMPATIBILITY MODEL PCIe Gen4 / Gen3 / Gen2 / Gen1
STORAGE CAPACITY 1TB
CONTROLLER PHISON E18
FLASH MEMORY 3D NAND
DRAM CACHE 1GB DDR4
FORM FACTOR M.2 2280
SEQUENTIAL READ UP TO (MB/S) 7000
SEQUENTIAL WRITE UP TO (MB/S) 5500
RANDOM READ 4KB UP TO (IOPS) 350,000
RANDOM WRITE 4KB UP TO (IOPS) 700,000
MAXIMUM OPERATING POWER (W) 6.6
IDLE POWER PS3 (MW) 14
LOW POWER L1.2 (MW) 3
OPERATING TEMPERATURES 0°C – 70°C
STORAGE TEMPERATURES -40°C – 85°C
TERABYTES WRITTEN (TBW) 700
MEAN TIME BETWEEN FAILURE (MTBF) Up to 1,600,000 Hours
ADVANCED FEATURES TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security)
DIMENSIONS 3.14" (L) x 0.86" (W) x 0.08" (H)
WEIGHT 1 lbs
MANUFACTURER WARRANTY 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
