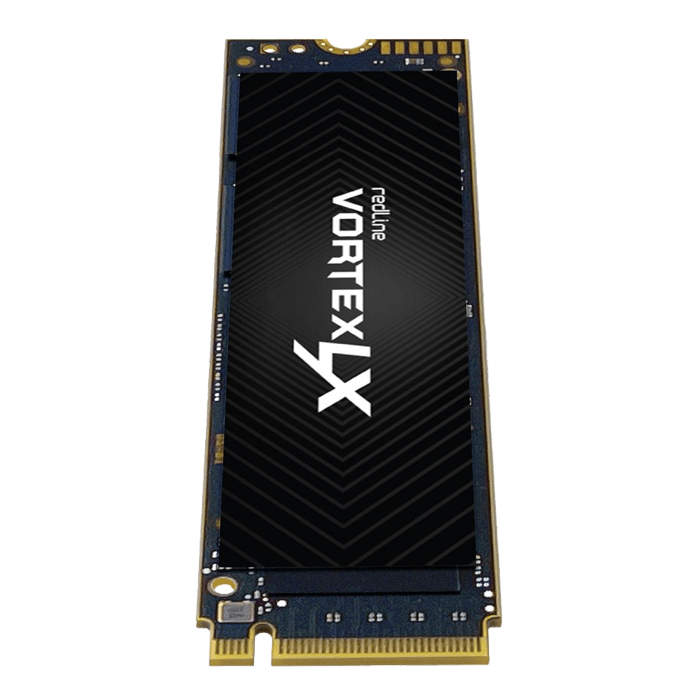

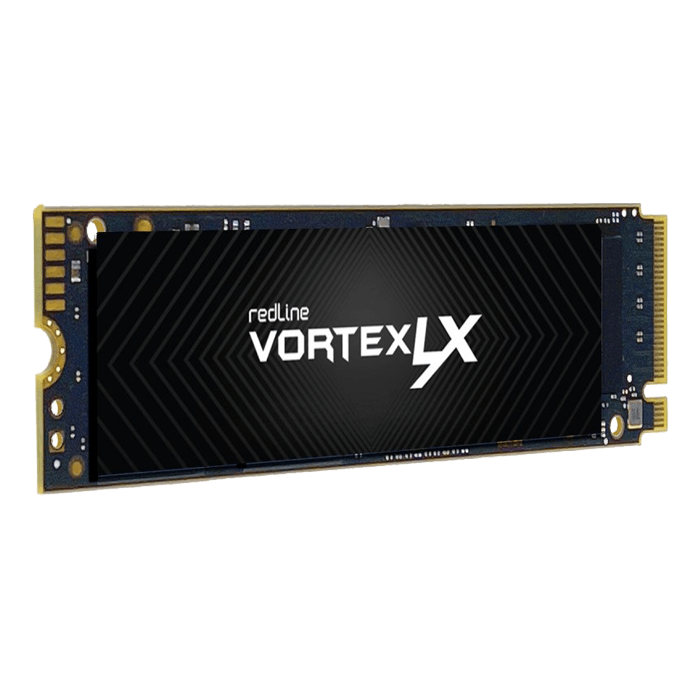

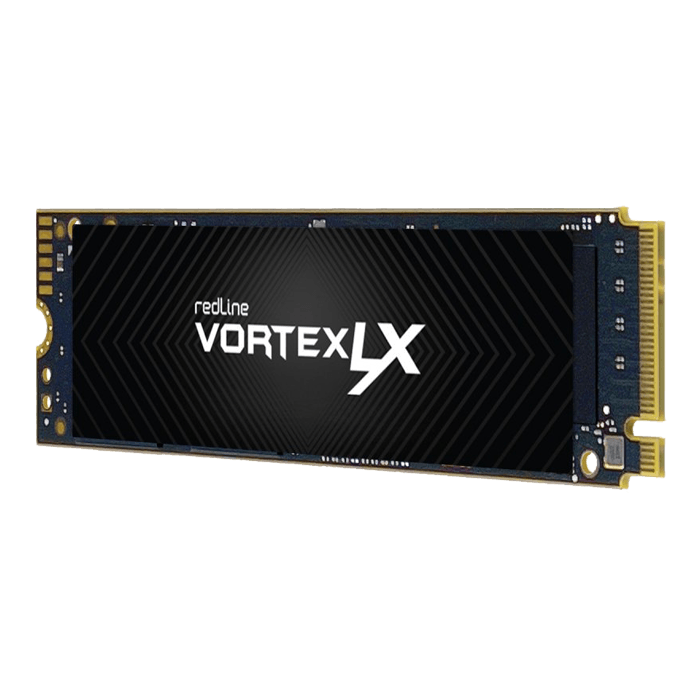

1TB Vortex LX, 5200 / 4370 MB/s, 3D NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD

Quantity:
  • SKU: 16218293
  • Manufacturer: MUSHKIN
  • MPN: MKNSSDVL1TB-D8
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$72.73
Quantity:
General
Brand Mushkin Enhanced
Series Vortex LX
Model MKNSSDVL1TB-D8
Type M.2 (2280) Internal Solid State Drive (SSD)
Used For Consumer
Physical
Form Factor M.2 (2280)
Capacity 1TB
Interface PCIe Gen4 x4 NVMe 1.4
Controller InnoGrit IG5220
Height 3.8mm
Width 80.0mm
Depth 22.0mm
Weight 7g
Performance
Max Sequential Read Up to 5200MB/s
Max Sequential Write Up to 4370MB/s
MTBF 1,500,000 hours
TBW 500
Features
Features MEDS (Mushkin Enhanced Data-protection Suite) ensures valuable data is protected
- Built-in LDPC ECC provides the most-powerful data correction level in use today
- End-to-end data path protection
- Global wear-leveling evens program/erase counts across data blocks to extend lifespan
Host Memory Buffer (HMB) uses system DRAM to boost performance
SLC caching accelerates burst performance
L1.2 power mode support for ultra-low power consumption
NVMe Security Erase support
NVMe Deallocate function support (NVMe equivalent of TRIM command)
High-reliability 3D NAND flash
S.M.A.R.T. support
User-upgradeable firmware
Temperature sensor
RoHS, FCC, CE
Power Consumption (Idle): 80mW
Power Consumption (Active): Up to 4W
Max sequential speeds and IOPS measured using CrystalDiskMark 8.0.1 x64.
Environmental
Operating Temperature 0°C-70°C
Storage Temperature -40°C-85°C
Max Shock Resistance 1500G
Power Supply 3.3V DC
