READY TO SHIP

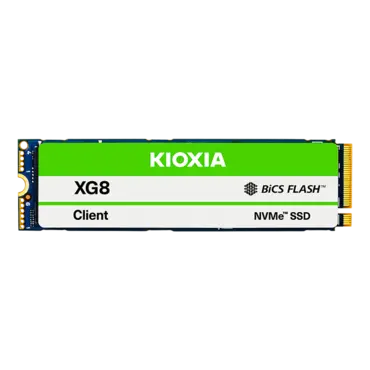

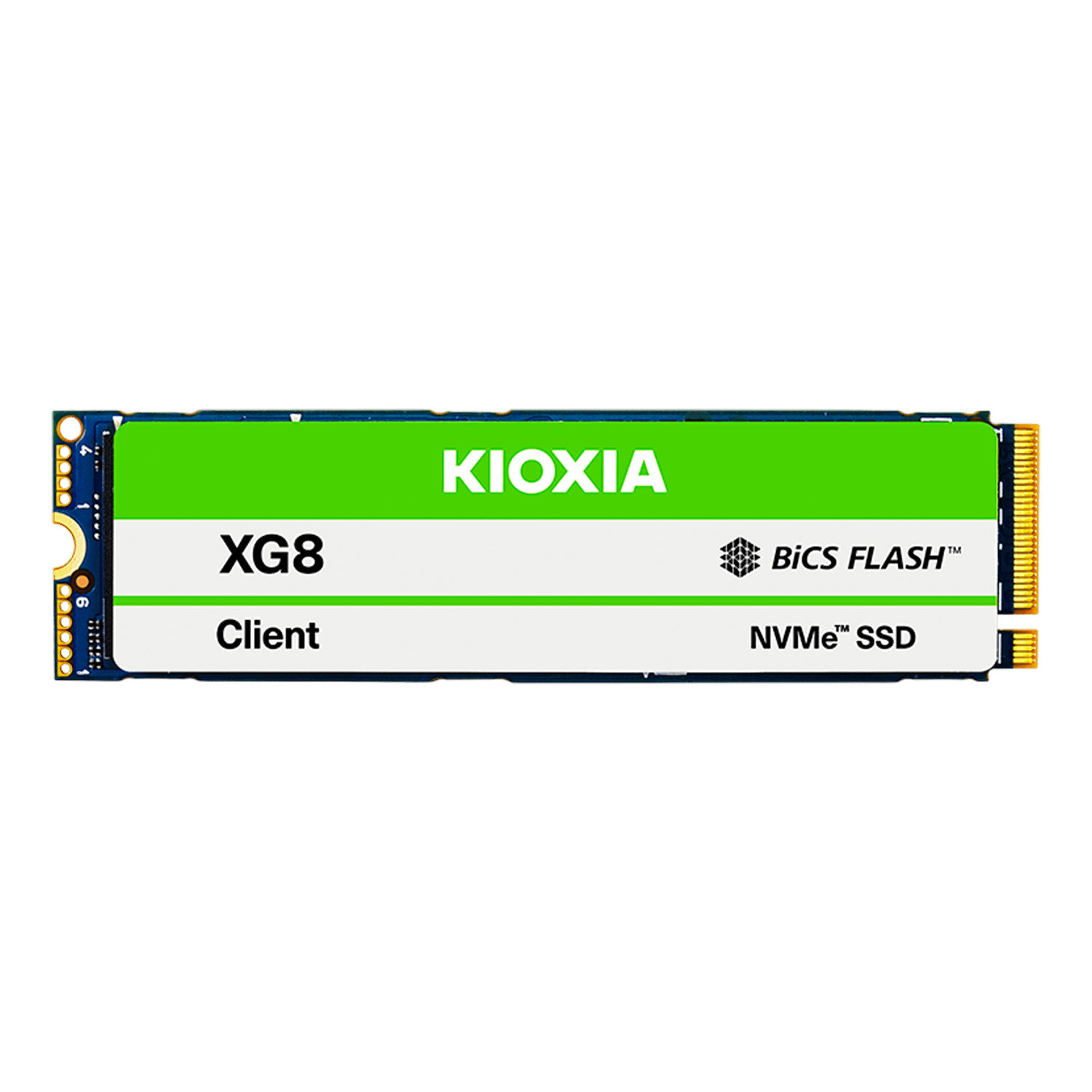

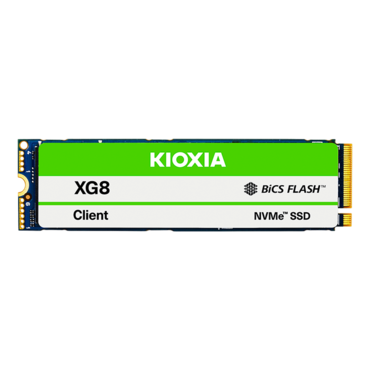

1TB XG8 Series, 7000 / 5600 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD
- SKU: 15991183
- Manufacturer: Kioxia
- MPN: KXG80ZNV1T02
- Availability: LOW STOCK
Price
$113.85
| Model Number | KXG80ZNV1T02 | ||
| Capacity | 1,024 GB | ||
| Basic Specifications | |||
| Form Factor | M.2 2280-S2 Single-sided | ||
| lnterface | PCIe® 4.0, NVMe™ 1.4 | ||
| Maximum Interface Speed | 64 GT/s (PCIe® Gen4 x4) | ||
| Flash Memory Type | BiCS FLASH™ TLC | ||
| Performance (Up to) | |||
| Sequential Read | 7,000 MB/s | ||
| Sequential Write | 5,600 MB/s | ||
| Random Read | 900K IOPS | ||
| Random Write | 620K IOPS | ||
| Power Requirements | |||
| Supply Voltage | 3.3 V ± 5 % | ||
| Power Consumption (Active) | 7.7 W typ. | ||
| Power Consumption (L1.2 mode) | 3.0 mW typ. | ||
| Reliability | |||
| MTTF | 1,500,000 hours | ||
| TBW | 600 | ||
| Dimensions | |||
| Thickness | 2.23 mm Max | ||
| Width | 22.0 mm ± 0.15 mm | ||
| Length | 80.0 mm ± 0.15 mm | ||
| Weight | 6.8 g Max | ||
| Environmental | |||
| Temperature (Operating) | 0 ? to 95 ? (Controller Temperature) | ||
| Temperature (Operating) | 0 ? to 85 ? (Other Components Temperature) | ||
| Temperature (Non-operating) | -40 ? to 85 ? | ||
| Humidity (Operating) | 0 % to 90 % R.H. | ||
| Vibration (Operating) | 196 m/s2 { 20 Grms } ( 20 Hz to 2,000 Hz ) | ||
| Shock (Operating) | 14.7 km/s2 { 1,500 G } ( 0.5 ms ) | ||
