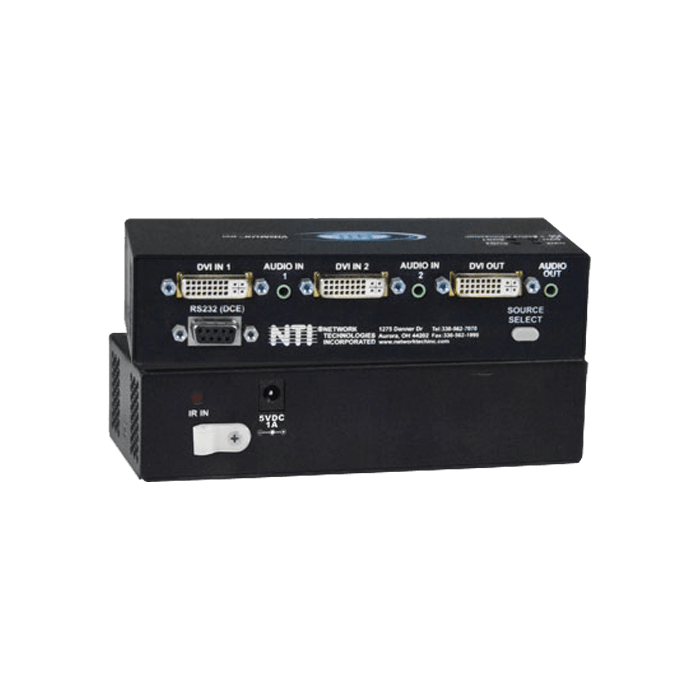

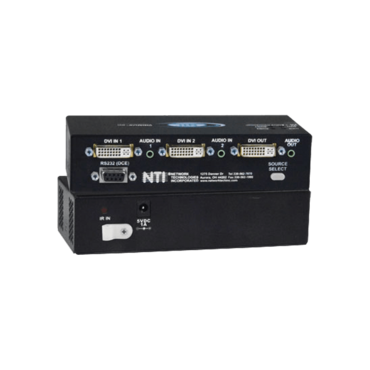

2-Port DVI-D/HDMI Video Switch with Audio + RS232
DVI HDMI Video Switch audio 4 port monitor HDTV RS232 cascade
2-Port DVI-D/HDMI Video Switch with Audio + RS232
Share one DVI-D/HDMI monitor among 2 video and audio sources
Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200
3.5mm stereo audio jacks
Baud rate 300 through 9600
Audio/Video Input |
- Female DVI-I connectors.
- 3.5 mm stereo audio jacks.
- SE-DVI-8ARS: audio out/mic in for two-way audio support.
- Compatible with computers and HDTV video sources (satellite receivers, DVD players, etc) with single link digital DVI outputs.
|
Audio/Video Output |
- One Female DVI-I connector.
- One 3.5 mm stereo audio jack.
- SE-DVI-8ARS: audio out/mic in for two-way audio support.
- Single link DVI-D signal.
- Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
|
Power |
- 100 to 240 VAC at 50 or 60 Hz via AC Adapter.
- Input voltage: 5VDC
|
Dimensions (WxDxH) |
- SE-DVI-2ARS: 6.46x2.77x1.55 in (164x70x39 mm).
- SE-DVI-8ARS: 17.3x5.16x1.73 in (440x131x44 mm).
- Includes 1RU rackmount kit.
|
Cables |
- SE-DVI-8ARS: 5' RJ45 CAT5 patch cable and DB9 female to RJ45 female adapter for RS232 connection.
- Use DVI-HD-xx-MM DVI-D to HDMI interface cable to connect the video source or display with integrated speakers (not included).
- Use HD-xx-MM HDMI cables with HDMIF-DVIDM adapters to connect an HDMI source or display up to 100 feet away from the switch.
|
Regulatory Approvals |
|
Warranty |
|
Compatible NTI Products |
- Combine NTI's extenders, switches, splitters and cables for complex applications
- DVI-I Single Link Interface Cable (DVI-IS-xx-MM)
- DVI-D to HDMI Single Link Interface Cable (DVI-HD-xx-MM)
|
