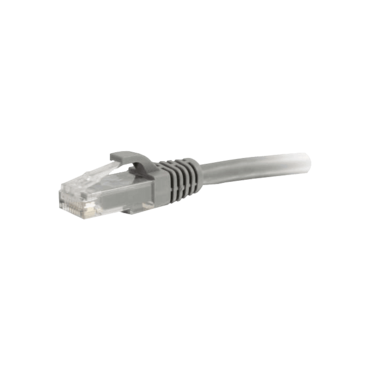

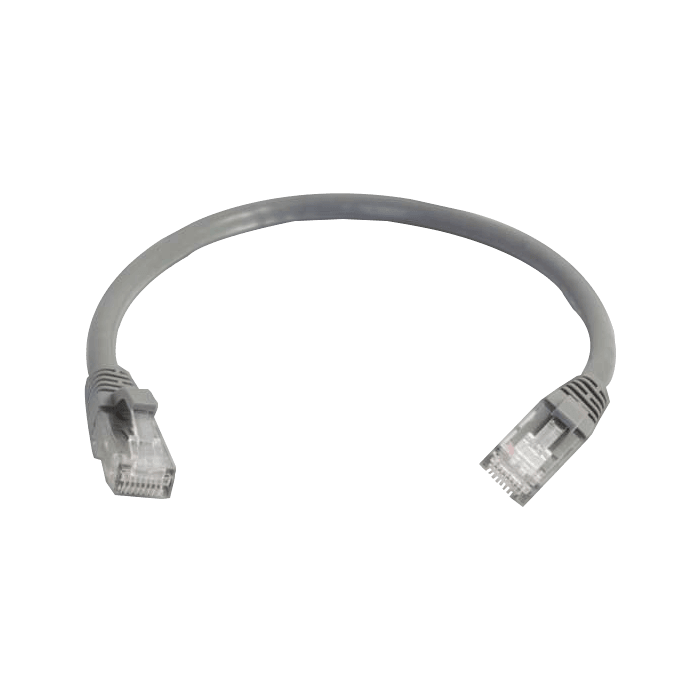

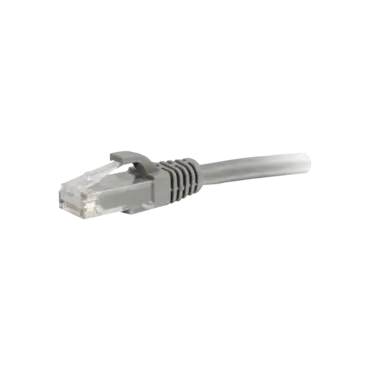

20-ft Grey Network Patch Cable, Cat 6a

  • SKU: 8008907
  • Manufacturer: CABLES TO GO
  • MPN: 00668
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
20-ft Grey Network Patch Cable, Cat 6a

This Snagless Unshielded Cat6a patch cable is ideal for use with 10GBase-T ports and equipment, such as network adapters, hubs, switches, routers, DSL/cable modems and patch panels, and enables 10 Gigabit data transmission over a 4 pair copper cable allowing connections up to 100 meters. Current Cat6 cabling systems may only support 10 Gigabit Ethernet over limited distances. Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.

Constructed from high quality cable and plugs, this design offers improved alien cross talk performance. The Snagless hood is ideal for high density switch applications. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use.

Color : Grey
Length : 20.00 Foot
Jacket Rating : Standard Non-Rated
UPC : 757120006688
Warranty : Lifetime
Vendor : C2G
Weight : 0.514 LB
Cable type Stranded UTP
Wiring scheme 568B
Temperature rating 75°C
Testing ANSI/TIA 568 C.2 Cat6a channel tested
Conductor (4 pair)
Conductor type 26AWG (7/0.16) (bare copper)
Insulation HD-PE
Overall cable
Foil shield Aluminum foil (100% coverage)
Jacket PVC
Connector Type RJ-45 Male
Housing Polycarbonate
Contacts 50µm gold plated
Hood Molded Snagless PVC
Dimension (L x W x H) 38.2 x 11.6 x 15.1
