240GB 5300 MAX 7mm, 540 / 380 MB/s, 3D TLC NAND, SATA 6Gb/s, 2.5" SSD
Quantity:
- SKU: 13045114
- Manufacturer: Micron
- MPN: MTFDDAK240TDT-1AW1ZABYY
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$183.10

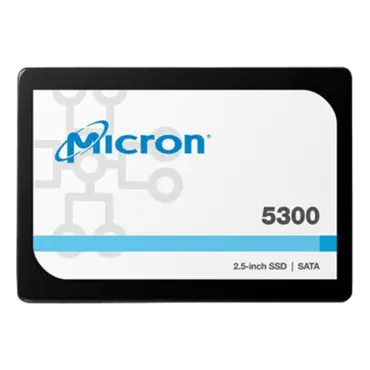

240GB 5300 MAX 7mm, 540 / 380 MB/s, 3D TLC NAND, SATA 6Gb/s, 2.5" SSD
Micron 240GB 5300 MAX (MTFDDAK240TDT-1AW1ZABYY). Refresh your data center and gain performance upgrades. Modernize your racks, stacks, and server arrays by updating your data center with the performance, consistency, and expanded data security of the Micron 5300 SSD. Its enterprise-class SATA storage delivers robust, consistent performance at 6 Gb/s for your data center and cloud, along with sequential read speeds of 540 MB/s.2.
96-Layer NAND SATA
- With the industry’s first cost-effective, 96-layer, 3D TLC NAND for SATA, the Micron 5300 modernizes your data center with high performance, affordability, and consistent performance. Choose from market-friendly M.2 (22x80mm) and 2.5-inch form factors.
Security for Your Data
- Solid, secure firmware-based security includes options for TCG Enterprise, TCG Opal 2.0 to support on-device encryption for SEDs, and ATA Security. The 5300 also includes power-loss protection for data at-rest and inflight, as well as enterprise data path protection for user and meta data.
Performance for Read-Intensive, Mixed-Use
- Take advantage of the Micron 5300 optimizations for read-intensive and mixed-use workloads. Your cloud and data centers will show strong performance for media streaming, online transaction processing (OLTP), block and object stores, business intelligence and data SS, and small random block. The Micron 5300 PRO delivers in the capacity tier on VDI/ virtualization, while the Micron 5300 MAX delivers on the capacity tier.
Broadest SATA Portfolio Gives You Options
- Micron’s long-term commitment to the enterprise SATA SSD space means you have options in how you move to an all-flash future. Extend your SATA infrastructure from 240GB boot drives (a new model for robust startup that keeps data storage slots available), to highcapacity 8TB SSDs.
| Capacity/Model | 240GB / 5300MAX | ||||
| Performance | Seq. Read (MB/s) | 540 | |||
| Seq. Writ (MB/s) | 380 | ||||
| Rand. Read (K IOPS) | 82 | ||||
| Rand. Write (K IOPS) | 60 | ||||
| Endurance (Total Bytes Written in TB) | 2190 | ||||
| Form Factor | 2.5” | ||||
| Basic Attributes | Interface | SATA (6 Gb/s) | |||
| Form Factor | 2.5-inch: 7mm | ||||
| NAND | Micron 96-layer 3D TLC NAND | ||||
|
99.9% Latency |
Random read: 175µs to 200µs; Random write: 100µs to 650µs | ||||
| Reliability | Mean Time to Failure | 3 million device hours | |||
| UBER | <1 sector per 10 bits read | ||||
| Warranty | Up to 5 years | ||||
| Environmental Characteristics | Power |
Sequential read: <3W MAX Sequential write: <3.9W MAX |
|||
| Operating Temp. | 0-70°C | ||||
| Physical Characteristics | Size (L x W x H) |
2.5-inch: 100.45mm x 69.85mm x 7.00mm |
|||
| Weight |
2.5-inch: <70g M.2: <10g |
||||
| Advanced Features | Flex Capacity, AES 256-bit encryption, TCG Enterprise configurability, TCG Opal, power loss protection for data at-rest and in- flight, enterprise data path protection for user and meta data, secure firmware, adaptive thermal monitoring, easy to install (hot- pluggable), Storage Executive SSD management tool, RAIN | ||||
