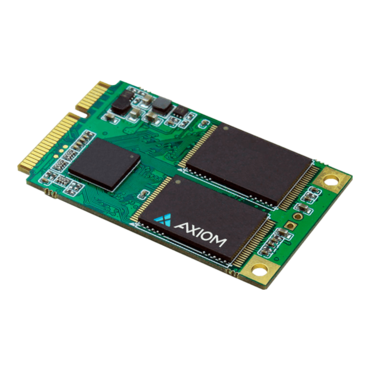

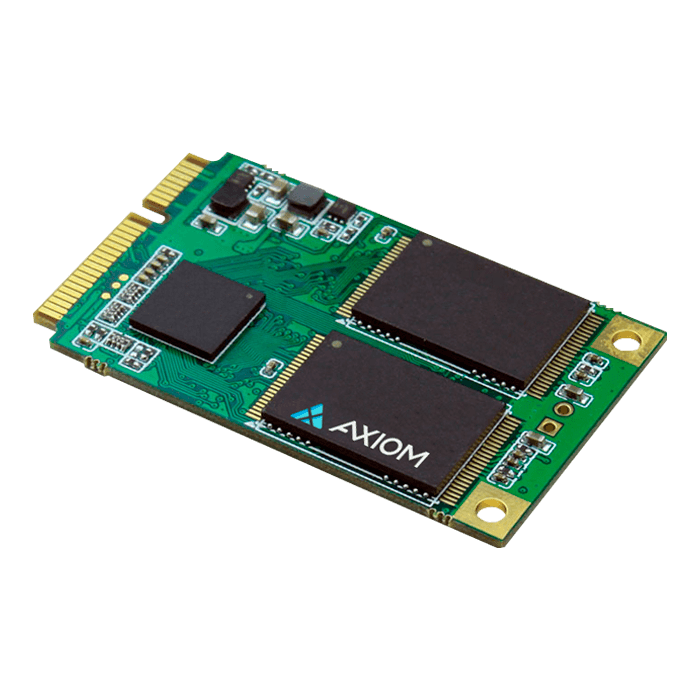

240GB C550n, 560 / 515 MB/s, 3D NAND, SATA 6Gb/s, mSATA SSD - TAA Compliant

  • SKU: 11523612
  • Manufacturer: AXIOM
  • MPN: AXG97562
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
Capacity 240GB
Features • Silicon Motion 3D TLC Flash controller
• SATA 3.2 Compliant
• SATA 6.0Gb/s with 3Gb/s and 1.5Gb/s support
• ATA/ATAPI-8-ACS3 command set compliant
• SLC caching accelerates burst performance
• StaticDataRefresh technology ensures data integrity
• Industry-standard 512 byte sector support
• TRIM command support (OS dependent)
• LDPC hard and soft decode ECC
• Internal flash RAID-like parity scheme provides an additional layer of error correction
• Field-upgradeable firmware
• Native Command Queuing (NCQ) support with 32 command queue depth
• RoHS-compliant package
• S.M.A.R.T. support
Performance • Sequential Read: Up to 560MB/s
• Sequential Write: Up to 515MB/s
• Random Read: Up to 54K IOPS (4K block size)
• Random Write: Up to 81K IOPS (4K block size)
Endurance • TBW: Up to 100TB
• DWPD (3yr): 0.39
Security • User Selectable Password (if BIOS supported)
• Secure Erase (Factory Reset - ATA)
Reliability • MTBF: 1.5 million device hours*
• Low Density Parity Check (LDPC) ECC
• Static and dynamic wear leveling
• Uncorrectable Bit Error Rate: =1 sector per 1016 bits read
Electrical/Mechanical • +3.3VDC (±5%) power supply
• Power Consumption: up to 2.1W (Active), 0.09W (Idle)
• Dimensions: MO-300: 50.8 x 30.0 x 4.8 mm
• Weight: 0.013lb
Environmental • Operating temperature: 0-70°C
• Non-Operating temperature: -40-85°C
• Operating humidity: 5-95% relative
• Shock: 1500G/0.5ms
• Vibration: 2-500Hz, 3.1G
RoHS Compliant
TAA Compliant
Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment
*Based on Telcordia SR-332 reliability prediction procedure.
