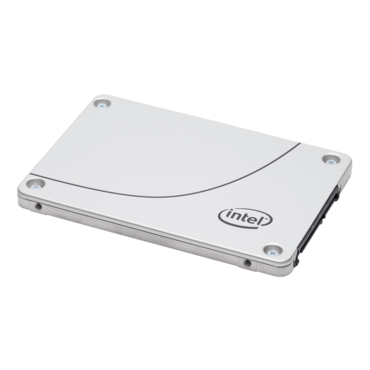

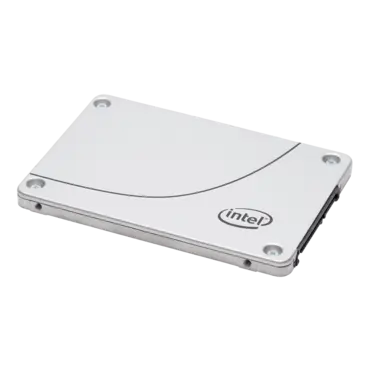

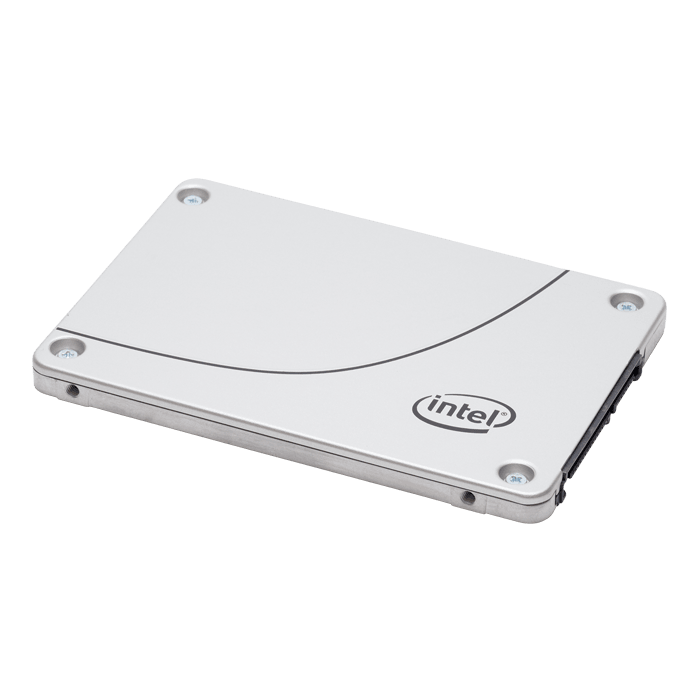

240GB D3-S4510 7mm, 560 / 280 MB/s, 3D TLC NAND, SATA 6Gb/s, 2.5" SSD

  • SKU: 12247593
  • Manufacturer: INTEL
  • MPN: SSDSC2KB240G801
Starting At
Product Collection Intel® SSD D3-S4510 Series
Code Name Products formerly Youngsville Refresh
Capacity 240 GB
Status Launched
Launch Date Q3'18
Lithography Type 3D NAND TLC
Use Conditions Server/Enterprise
Sequential Read (up to) 560 MB/s
Sequential Write (up to) 280 MB/s
Random Read (100% Span) 90000 IOPS
Random Write (100% Span) 16000 IOPS
Latency - Read 36 µs
Latency - Write 37 µs
Power - Active 2.4W
Power - Idle 1.0W
Vibration - Operating 2.17 GRMS
Vibration - Non-Operating 3.13 GRMS
Shock (Operating and Non-Operating) 1000 G/0.5 msec
Operating Temperature Range 0°C to 70°C
Endurance Rating (Lifetime Writes) 0.9 PBW
Mean Time Between Failures (MTBF) 2 million hours
Uncorrectable Bit Error Rate (UBER) 1 sector per 10^17 bits read
Warranty Period 5 yrs
Supplemental Information
Additional Information URL View now
Package Specifications
Form Factor 2.5" 7mm
Interface SATA 3.0 6Gb/S
Advanced Technologies
Enhanced Power Loss Data Protection Yes
Hardware Encryption AES 256 bit
High Endurance Technology (HET) No
Temperature Monitoring and Logging Yes
End-to-End Data Protection Yes
Intel® Smart Response Technology No
Intel® Rapid Start Technology No
Intel® Remote Secure Erase No
