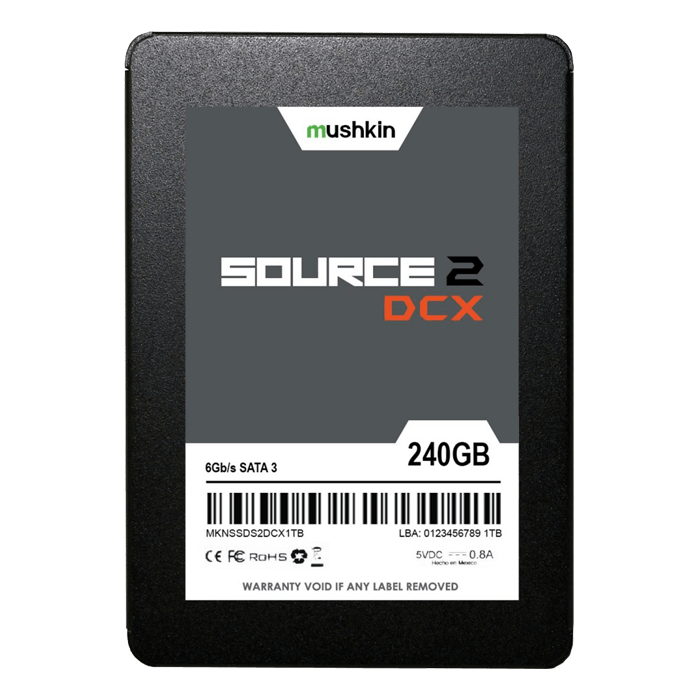

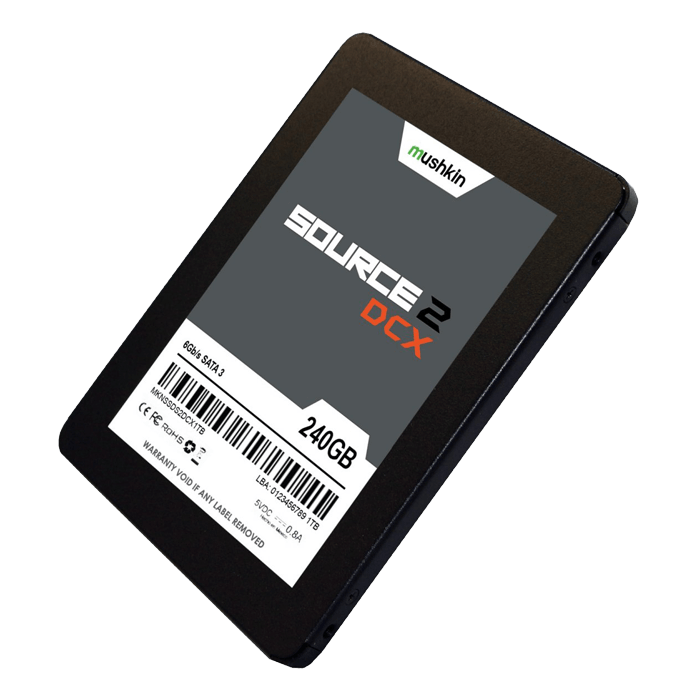

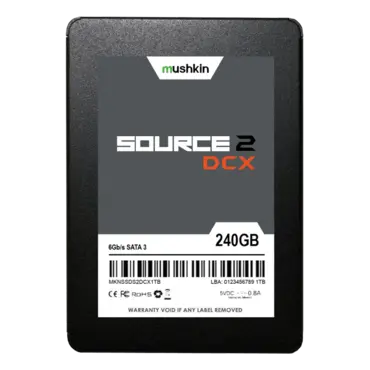

240GB Source 2 DCX 7mm, 560 / 235 MB/s, 3D NAND, SATA 6Gb/s, SED, TCG Opal SSC, 2.5" SSD
- SKU: 17396727
- Manufacturer: MUSHKIN
- MPN: MKNSSDDC240GB
- Availability: CONTACT US
Price
$48.30
| General | |
| Brand | Mushkin Enhanced |
| Series | DCX |
| Model | MKNSSDDC240GB |
| Type | 7mm Internal Solid State Drive (SSD) |
| Used For | Consumer |
| UPC | 846651029591 |
| Physical | |
| Form Factor | 2.5" |
| Capacity | 240GB |
| Interface | SATA 6Gb/s |
| Controller | Silicon Motion |
| Height | 7mm |
| Width | 69.85mm |
| Depth | 100.45mm |
| Weight | 50g |
| Performance | |
| Max Sequential Read | Up to 560MB/s |
| Max Sequential Write | Up to 235MB/s |
| 4KB Random Read | Up to 45,000 |
| 4KB Random Write | Up to 3,500 |
| Seek Time | <0.1ms |
| TBW | 115 (0.26 DWPD) |
| MTBF | 1,500,000 hours |
| Features | |
| Features | MEDS (Mushkin Enhanced Data-protection Suite) ensures valuable data is protected |
| - Built-in LDPC ECC provides the most-powerful error correction method in use today | |
| - Data shaping increases endurance | |
| - StaticDataRefresh ensures data integrity | |
| - Global wear-leveling evens program/erase counts across data blocks to extend lifespan | |
| 256MB DRAM | |
| Power Loss Protection (PLP) enhances data integrity in the event of an unexpected power loss | |
| Self-encrypting Drive (SED) with IEEE1667 (eDrive) and TCG Opal support | |
| SLC caching accelerates burst performance | |
| TRIM support (OS/driver support required) | |
| High-reliability NAND flash | |
| S.M.A.R.T. support | |
| Supports Security Erase | |
| Temperature sensor | |
| RoHS, FCC, CE | |
| Power Consumption (Idle): 0.08W | |
| Power Consumption (Active): 3W | |
| Max sequential speeds and IOPS measured using CrystalDiskMark 6.0.2 x64 | |
| Environmental | |
| Operating Temperature | 0°C-70°C |
| Storage Temperature | -40°C-85°C |
| Max Shock Resistance | 1500G |
| Power Supply | 5V DC |
