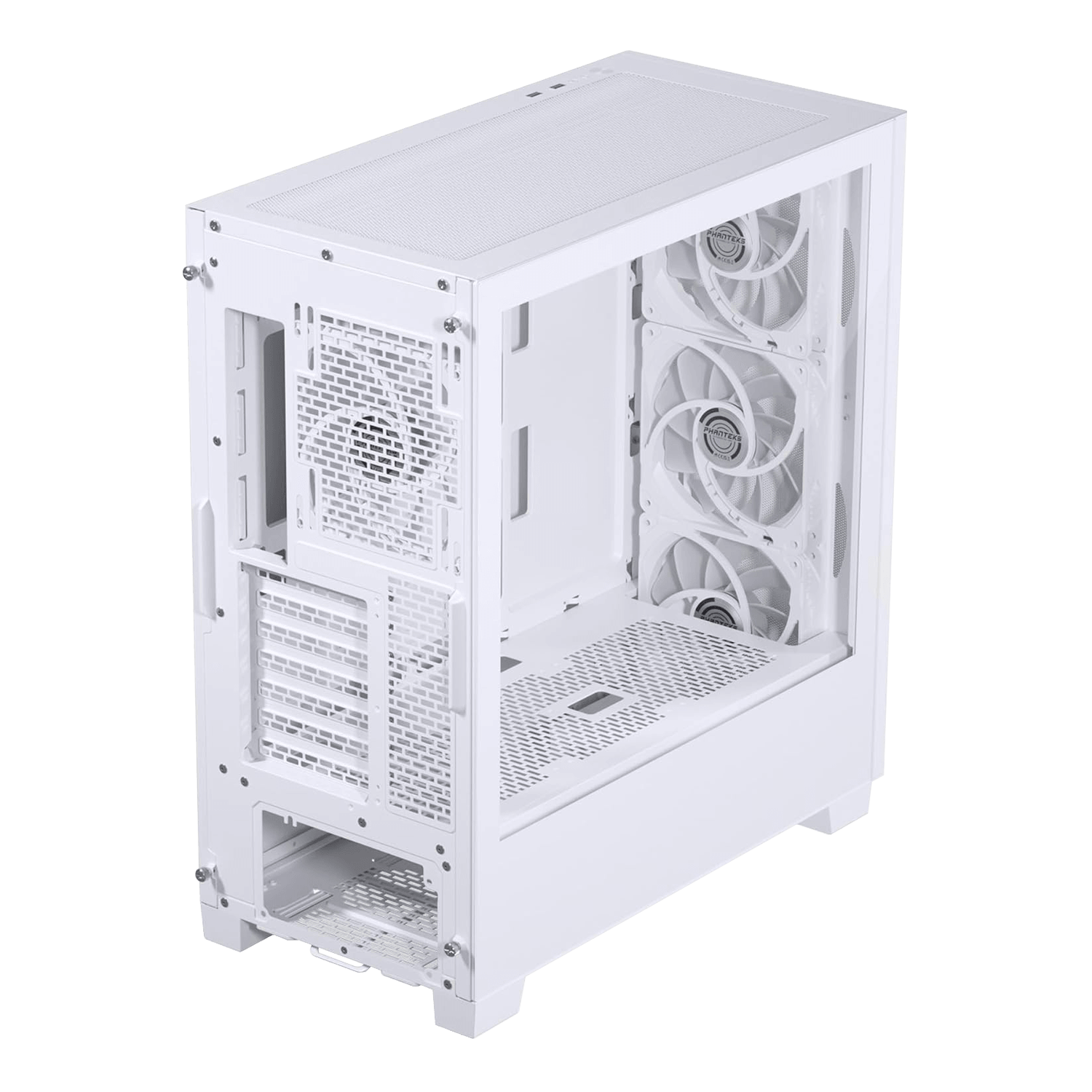

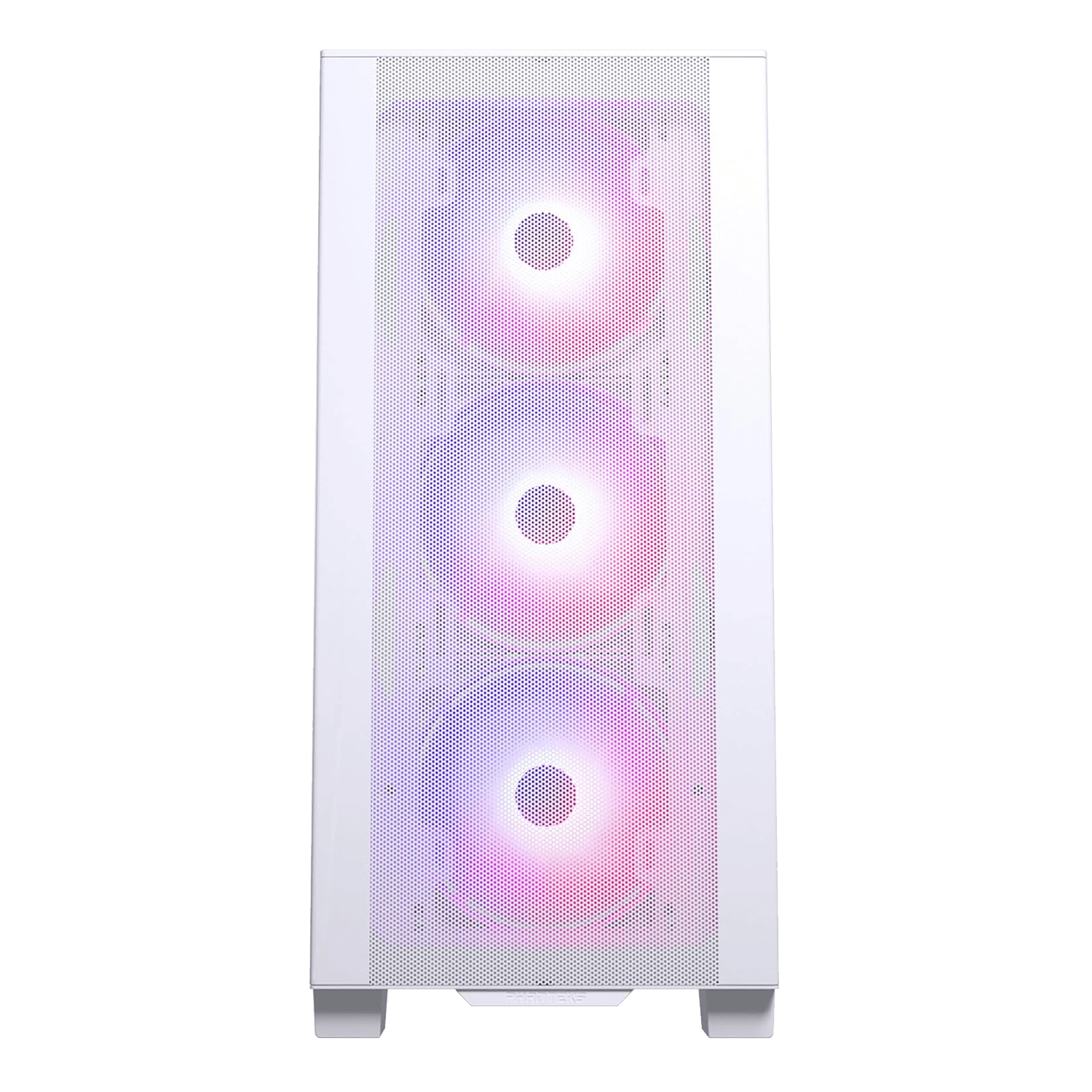

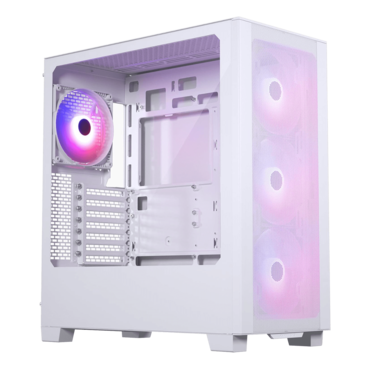

XT Pro Ultra, Tempered Glass, No PSU, E-ATX, White, Mid Tower Case
- SKU: 17811094
- Manufacturer: PHANTEKS
- MPN: PH-XT523P1_DWT01
- Availability: CONTACT US
| General | |
| Model No. | PH-XT523P1_DWT01 |
| UPC Code | 886523303145 |
| Case Dimensions | 450 x 230 x 500 mm | 17.7×9.05×19.68 in |
| Form Factor | Mid-Tower |
| Mainboard Support |
E-ATX* | ATX | Micro-ATX | Mini-ITX *Up to 280mm wide |
| Materials | Steel chassis | Tempered glass | ABS plastic |
| Side Window | Yes |
| PCI Slots | 7 |
| Vertical GPU Support |
3-slots Riser Cable sold separately |
| Internal 2.5″ Bay |
5 + 1x 3.5″ HDD |
| Internal 3.5″ Bay |
2 + 3x 2.5″ SSD |
| Front I/O |
1x USB-C 3.2 Gen2 1x USB 3.0 Microphone | Headphone combo Power Button Reset Button |
| Fans | |
| Total Fans |
120 mm | 140 mm 10x | 6x |
| Top | 3x | 2x |
| Front | 3x | 3x |
| Side | – | – |
| Rear | 1x | 1x |
| Midplate | 3x | – |
| Radiators | |
| Top | Max. 360 | – |
| Front | Max. 240 | – |
| Side | – | – |
| Rear | 120 | – |
| Midplate | – | – |
| Clearance | |
| CPU Cooler | Height 184 mm | 7.24 in |
| GPU |
Length 415 mm | 16.33 in |
| GPU |
Width 184 mm | 7.24 in |
| Power Supply |
Length 270 mm | 10.62 in |
| Top Radiator |
Length x Width x Height 415 x 138 x 60 mm | 16.33 x 5.43 x 2.36 in |
| Front Radiator |
Length x Width 170 x 132 mm | 6.69 x 5.19 in |
| Side Radiator |
Length x Width – |
| Midplate Radiator |
Length x Width – |
| Extra | |
| Net Weight | 7.55 kg | 16.64 lbs |
| Gross Weight | 9.45 kg | 20.83 lbs |
| Warranty |
5 Years limited Learn more |
| Scope of Delivery |
1x XT Pro Ultra chassis 4x M25-140 D-RGB fans |
| Accessory | 30x Zip ties |
| Screws |
30x Mainboard | SSD screws 4x Power supply screws 8x HDD screws 4x Thumb screws 12x 30mm Fan Screw 1x Motherboard stand-off 1x Stand-off removal tool |
