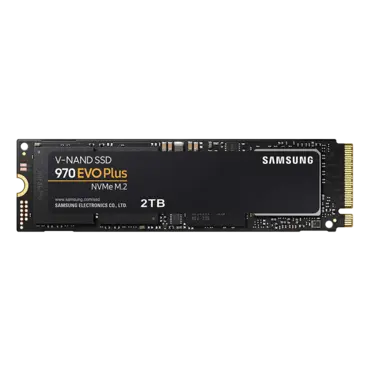

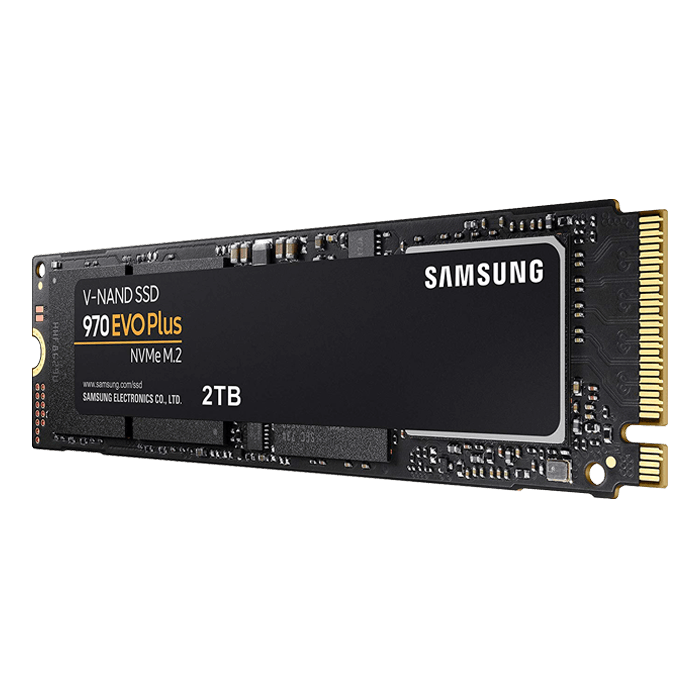

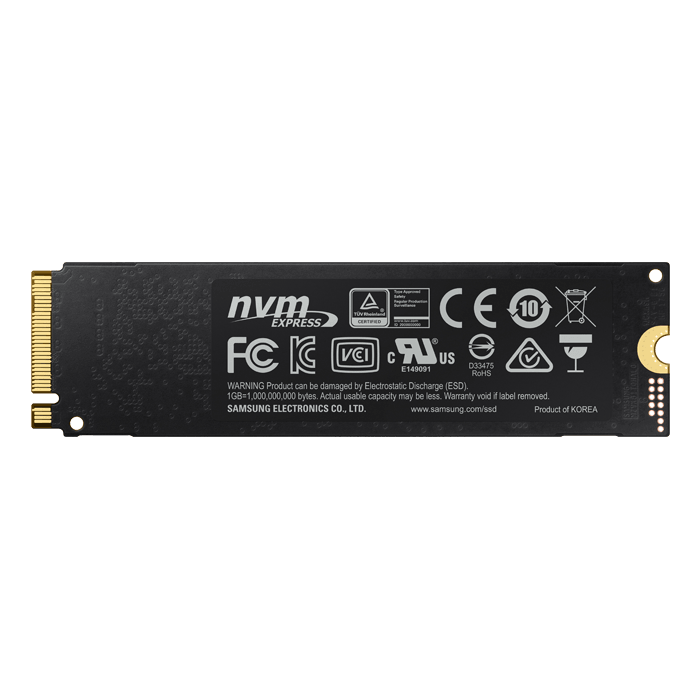

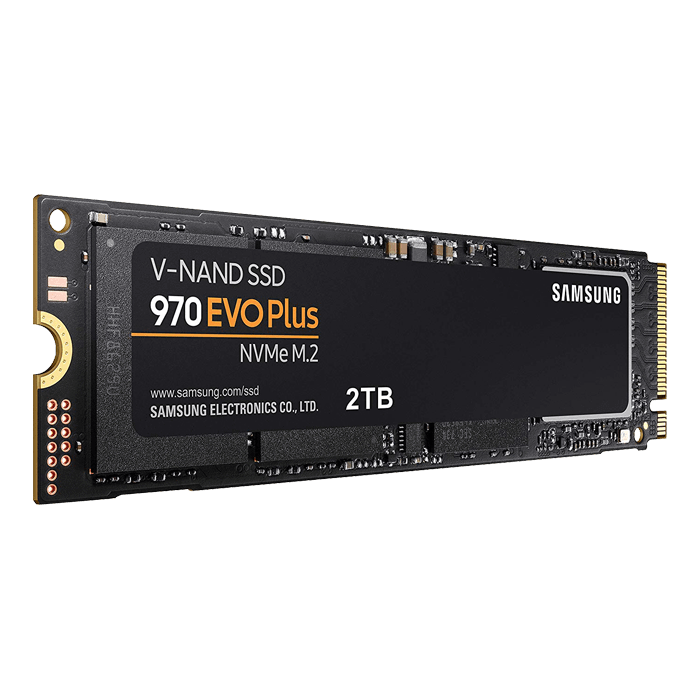

2TB 970 EVO Plus, 3500 / 3300 MB/s, V-NAND 3-bit MLC, PCIe NVMe 3.0 x4, M.2 2280 SSD

Quantity:
  • SKU: 12646715
  • Manufacturer: SAMSUNG
  • MPN: MZ-V7S2T0B/AM
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$263.53
Quantity:
Type
Product Type SSD
Series 970 EVO Plus
Usage Application Client PCs
Interface PCIe Gen 3.0 x 4, NVMe 1.3
Application
Consumer Yes
Storage
Capacity 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Key Features
Sequential Read Speed Up to 3,500 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Speed Up to 3,300 MB/s * Performance may vary based on system hardware & configuration
Random Read Speed Random Read (4KB, QD32): Up to 620,000 IOPS; Random Read (4KB, QD1): Up to 19,000 IOPS * Performance may vary based on system hardware & configuration
Random Write Speed Random Write (4KB, QD32): Up to 560,000 IOPS; Random Write (4KB, QD1): Up to 62,000 IOPS * Performance may vary based on system hardware & configuration
Controller Samsung Phoenix Controller
NAND Flash Samsung V-NAND 3-bit MLC
Cache Memory Samsung 1GB Low Power DDR4 SDRAM
Trim Support Supported
AES Encryption AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support Supported
GC (Garbage Collection) Auto Garbage Collection Algorithm
WWN Support Not supported
Device Sleep Mode Support Yes
Temperature proof Yes
NVMe Yes
Gaming SSDs Yes
General
Average Power Consumption (system level) * Average: 6 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle) Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
Voltage 3.3 V ± 5 % Allowable voltage
Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
Environmental Specs
Operating Temperature 0 - 70 °C Operating Temperature
Shock 1,500 G & 0.5 ms (Half sine)
Form Factor
Product M.2 (2280)
Dimensions (W x H x D)
Product 80.15 x 22.15 x 2.38 (mm)
Weight
Product Max 8.0 g Weight
Software
Management SW Magician Software for SSD management
Warranty
Product 5-Year Limited Warranty or: 600 TBW Limited Warranty
