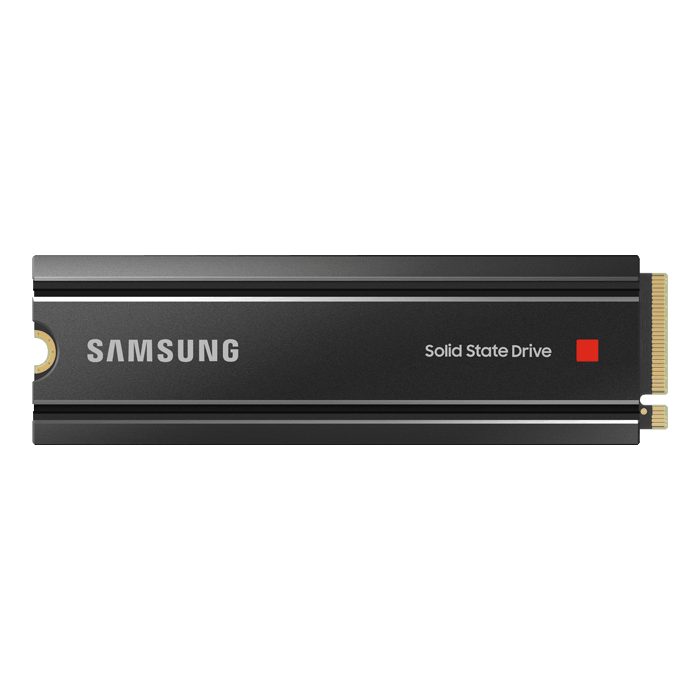

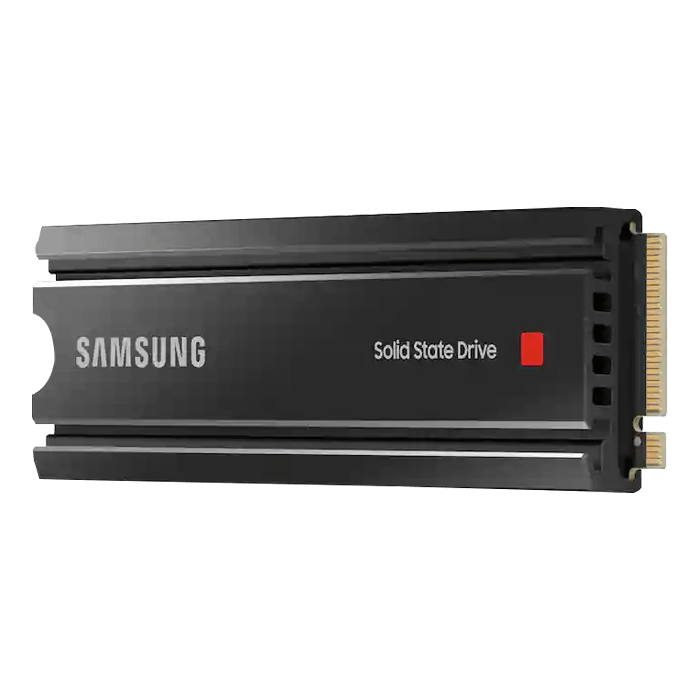

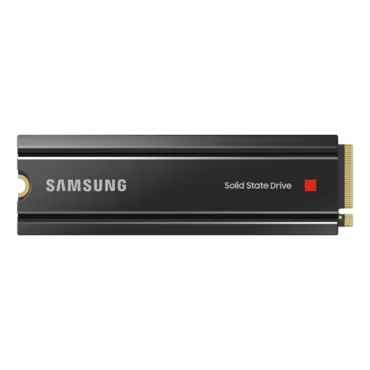

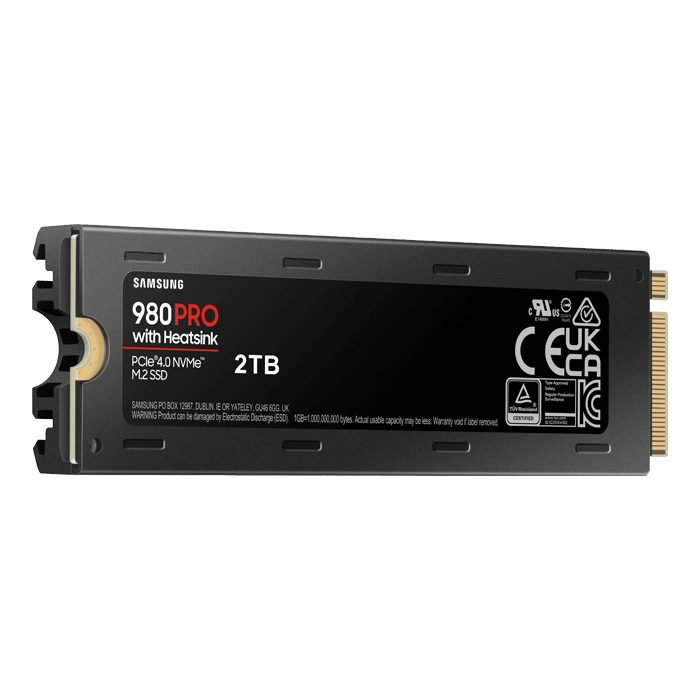

2TB 980 PRO, w/ Heatsink, 7000 / 5100 MB/s, V-NAND 3-bit MLC, PCIe NVMe 4.0 x4, M.2 2280 SSD
Quantity:
- SKU: 14930047
- Manufacturer: SAMSUNG
- MPN: MZ-V8P2T0CW
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$239.23
2TB 980 PRO, w/ Heatsink, 7000 / 5100 MB/s, V-NAND 3-bit MLC, PCIe NVMe 4.0 x4, M.2 2280 SSD
Next-level performance
with maximum heat control
Unleash the power of the Samsung 980 PRO with Heatsink for next-level computing and gaming. With a PCIe® 4.0 NVMe™ interface, get up to 2x the data transfer rate of PCIe® 3.0* while remaining compatible with PCIe® 3.0.
The integrated heatsink disperses heat to maintain speed, power efficiency, and thermal control, preventing downtime from overheating on Playstation® 5 and PCs.
- True PCIe ® 4.0 NVMe™ speed (up to 7,000 MB/s for seq. reads, 5,100MB/s for seq. writes)
- Ideal for heavy computing, high resolution graphics and PC gaming.
- For console gaming, compatible only with Playstation ® 5.
| General Feature | |
| Product Type | NVMe™ SSD |
| Family Line | 980 PRO with Heatsink PCIe® 4.0 NVMe™ SSD |
| Capacity | 2TB |
| Interface | PCIe® 4.0 |
| Compatibility | PC & Playstation® 5 |
| Performance | |
| Encryption | AES 256-bit (SED), TCG V2.0, Encrypted Drive (IEEE1667) |
| Type | |
| Interface | PCIe Gen 4.0 x4, NVMe 1.3c |
| Read/Write Speeds | 7,000/5,100MB/s |
| Usage Application | Client PCs, Game Consoles |
| Storage | |
| Capacity | 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
| Key Features | |
| Sequential Read Speed | Up to 7,000 MB/s * Performance may vary based on system hardware & configuration |
| Sequential Write Speed | Up to 5,100 MB/s * Performance may vary based on system hardware & configuration |
| Compatibility | 980 PRO is backward compatible with PCIe 3.0. Sequential performances (up to): 3450 MB/s (1TB), 3470 MB/s (2TB) for writes. Random (up to): 690K IOPS (1TB), 680K IOPS (2TB) for reads, 660K IOPS (1TB), 630K IOPS (2TB) for writes. |
| Cache Memory | Samsung 2GB Low Power DDR4 SDRAM |
| Trim Support | Supported |
| S.M.A.R.T. Support | Supported |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| WWN Support | Not supported |
| Device Sleep Mode Support | Yes |
| Thermal protection | Heatsink |
| General | |
| Average Power Consumption (system level) | *Average: 6.1 W*Maximum: 7.2 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration |
| Power consumption (Idle) | Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration |
| Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
| Environmental Specs | |
| Shock | 1,500 G & 0.5 ms (Half sine) |
| Form Factor | |
| Product | M.2 (2280) with Heatsink complying PCI-SIG® D8 standard |
| Dimensions (W x H x D) | |
| Product | 24 x 80 x 8.6 mm (with heatsink) |
| Weight | |
| Product | Max 30.5g |
