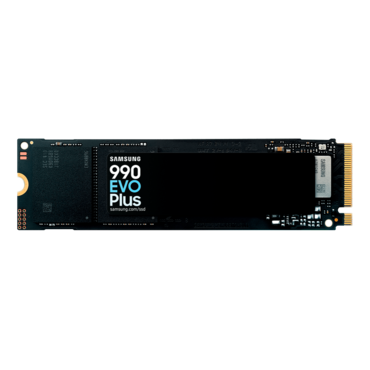

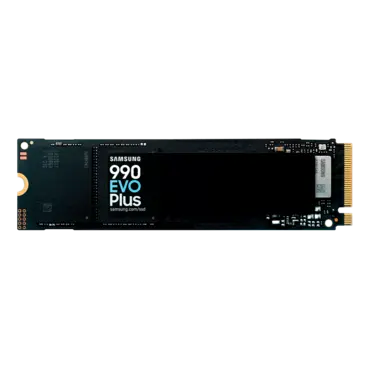

2TB 990 EVO Plus, 7250 / 6300 MB/s, V-NAND 3-bit TLC, PCIe NVMe 5.0 x2, M.2 2280 SSD
- SKU: 18030233
- Manufacturer: SAMSUNG
- MPN: MZ-V9S2T0B/AM
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$156.75
| Model Code (Capacity) | |
| MZ-V9S2T0BW | (2TB) |
| General Feature | |
| Application | Client PCs |
| FORM FACTOR | M.2 (2280) |
| INTERFACE | PCIe® Gen 4.0 x4 / 5.0 x2 NVMe™ 2.0 |
| DIMENSION (WxHxD) | 80.15 x 22.15 x 2.38mm |
| WEIGHT | Max 9.0g Weight |
| STORAGE MEMORY | Samsung V-NAND TLC |
| CONTROLLER | Samsung in-house Controller |
| CACHE MEMORY | HMB(Host Memory Buffer) |
| Special Feature | |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| GC (GARBAGE COLLECTION) | Auto Garbage Collection Algorithm |
| ENCRYPTION SUPPORT |
AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive) |
| WWN SUPPORT | Not supported |
| DEVICE SLEEP MODE SUPPORT | Yes |
| Performance | |
| SEQUENTIAL READ | 2TB: Up to 7,250 MB/s |
| SEQUENTIAL WRITE | 2TB: Up to 6,300 MB/s |
| RANDOM READ (4KB, QD32) | 2TB: Up to 1,000,000 IOPS |
| RANDOM WRITE (4KB, QD32) | 2TB: Up to 1,350,000 IOPS |
| Environment | |
| AVERAGE POWER CONSUMPTION (System Level) | 2TB: Average: Read 4.6 W / Write 4.2 W |
| POWER CONSUMPTION (IDLE) | 2TB: Typical 60 mW |
| POWER CONSUMPTION (DEVICE SLEEP) | 2TB: Typical 5mW |
| ALLOWABLE VOLTAGE | 3.3 V ± 5 % Allowable voltage |
| RELIABILITY (MTBF) | 1.5 Million Hours Reliability (MTBF) |
| OPERATING TEMPERATURE | 0 - 70 °C Operating Temperature |
| Shock | 1,500 G & 0.5 ms (Half sine) |
| Accessories | |
| INSTALLATION KIT | Not Available |
| Software | |
| MANAGEMENT SW | Magician Software for SSD management |
| Warranty | |
| MZ-V9S2T0BW(2TB) | 5-year or 1200 TBW limited warranty |
