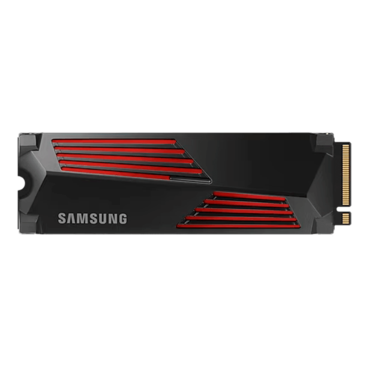

2TB 990 PRO, w/ Heatsink, 7450 / 6900 MB/s, V-NAND 3-bit MLC, PCIe NVMe 4.0 x4, M.2 2280 SSD
Quantity:
- SKU: 16228934
- Manufacturer: SAMSUNG
- MPN: MZ-V9P2T0CW
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$215.69
| Model | MZ-V9P2T0CW |
| Capacity | 2TB |
| General Feature | |
| APPLICATION | Client PCs, Game Consoles |
| DIMENSION (WxHxD) | 80.15 x 25 x 8.88mm (with heatsink) |
| CONTROLLER | Samsung in-house Controller |
| FORM FACTOR | M.2 (2280) |
| WEIGHT | Max 28.0g Weight |
| CACHE MEMORY | Samsung 2GB Low Power DDR4 SDRAM (2TB) |
| INTERFACE | PCIe Gen 4.0 x4, NVMe 2.0 |
| STORAGE MEMORY | Samsung V-NAND 3-bit TLC |
| Special Feature | |
| TRIM SUPPORT | Supported |
| ENCRYPTION SUPPORT |
AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive) |
| S.M.A.R.T SUPPORT | Supported |
| WWN SUPPORT | Not supported |
| GC (GARBAGE COLLECTION) | Auto Garbage Collection Algorithm |
| DEVICE SLEEP MODE SUPPORT | Yes |
| Performance | |
| SEQUENTIAL READ | Up to 7,450 MB/s |
| RANDOM WRITE (4KB, QD32) | Up to 1,550,000 IOPS |
| SEQUENTIAL WRITE | Up to 6,900 MB/s |
| RANDOM READ (4KB, QD1) | Up to 22,000 IOPS |
| RANDOM READ (4KB, QD32) | Up to 1,400,000 IOPS |
| RANDOM WRITE (4KB, QD1) | Up to 80,000 IOPS |
| Environment | |
|
AVERAGE POWER CONSUMPTION (SYSTEM LEVEL) |
Average 5.5 W Maximum 8.5 W (Burst mode) |
| ALLOWABLE VOLTAGE | 3.3 V ± 5 % Allowable voltage |
| SHOCK | 1,500 G & 0.5 ms (Half sine) |
| POWER CONSUMPTION (IDLE) | Max. 55 mW |
| RELIABILITY (MTBF) | 1.5 Million Hours Reliability (MTBF) |
| POWER CONSUMPTION (DEVICE SLEEP) | Max. 5mW |
| OPERATING TEMPERATURE | 0 - 70 ? Operating Temperature |
| Accessories | |
| INSTALLATION KIT | Not Available |
| Software | |
| MANAGEMENT SW | Magician Software for SSD management |
| Warranty | |
| MZ-V9P1T0CW (1TB) | 5-Year Limited Warranty or 1200 TCW Limited Warranty |
