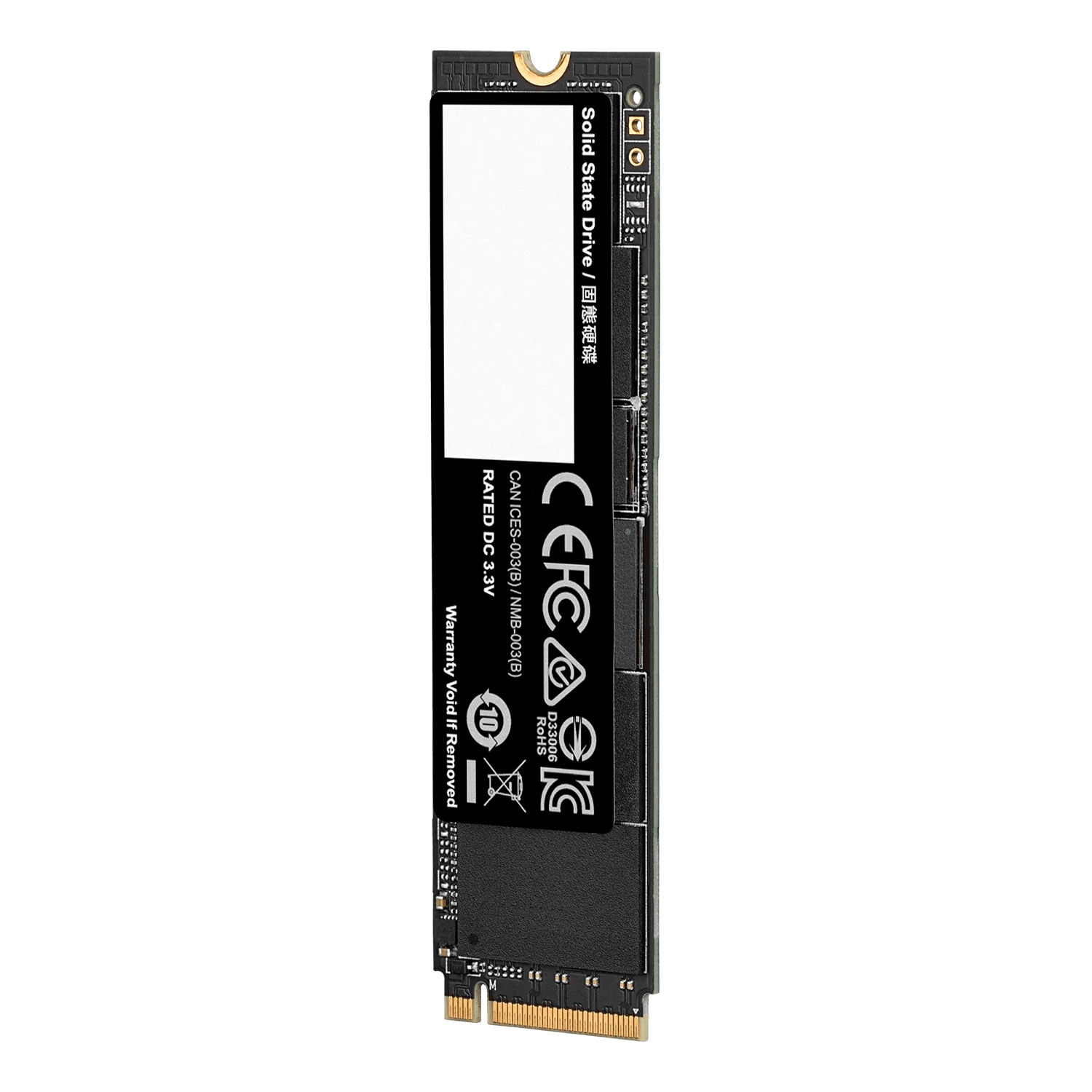

2TB AORUS Gen4 7300, w/ Heatsink, 7300 / 6850 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD

2TB AORUS Gen4 7300, w/ Heatsink, 7300 / 6850 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD

SKU: 17549374
Manufacturer: GIGABYTE
MPN: AG4732TB
Availability: TEMPORARILY OUT OF STOCK

Price

$171.33

Interface	PCI-Express 4.0 x4, NVMe 1.4
Form Factor	M.2 2280
Total Capacity	2000GB
NAND	3D TLC NAND Flash
External DDR Cache	DDR4 2GB
Sequential Read speed	Up to 7300 MB/s
Sequential Write speed	Up to 6850 MB/s
Dimension	SSD without Heatsink: 80 x 22 x 3.5 mm (Double Side) SSD with Heatsink: 80.5 x 23.5 x 11.25 mm
Mean time between failure (MTBF)	1.6 million hours
Max. Operating Power	Read: 8.1W Write: 7.4W
Power Consumption (Idle, PS3)	30mW
Power Consumption(PS4, L1.2)	3mW
Temperature (Operating)	0°C to 70°C
Temperature (Storage)	-40°C to 85°C
Warranty	1. Limited 5-years or 1400TBW. 2. Limited warranty based on 5 years or 1400TBW, whichever comes first. (TBW is evaluated by JEDEC workload standard. ) TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. 3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
Note	Test system configuration: configuration may vary by models, we will choose the latest platform for verification. Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0. Speeds based on internal testing. Actual performance may vary. 1GB = 1 billion bytes. Actual useable capacity may vary.
Test Configuration	OS: Windows 11 22H2 (OS build 22621.819) CPU: AMD Ryzen 9 7950X 16-Core Processor 4.5G Memory: DDR5 5600 16GBx2 Chipset: AM5 X670 (X670E AORUS MASTER)
