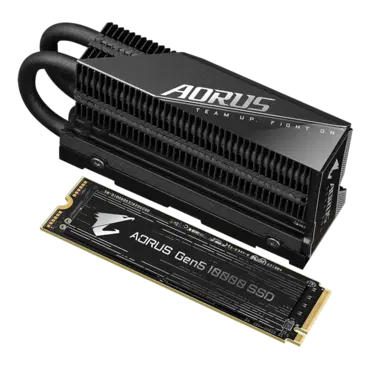

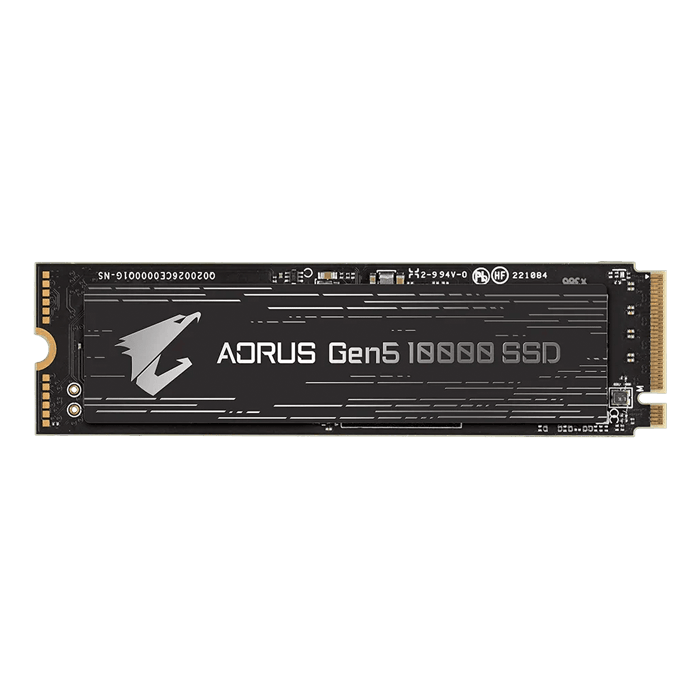

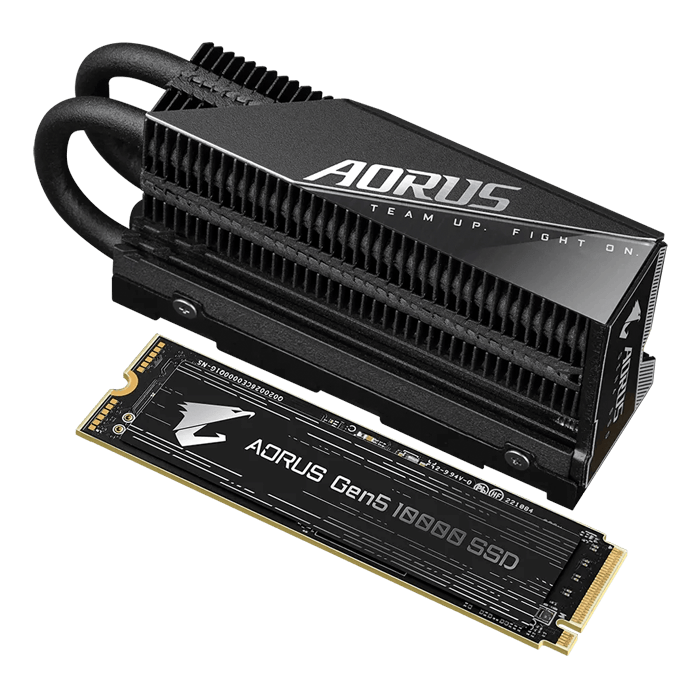

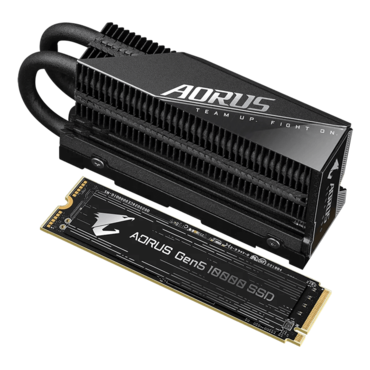

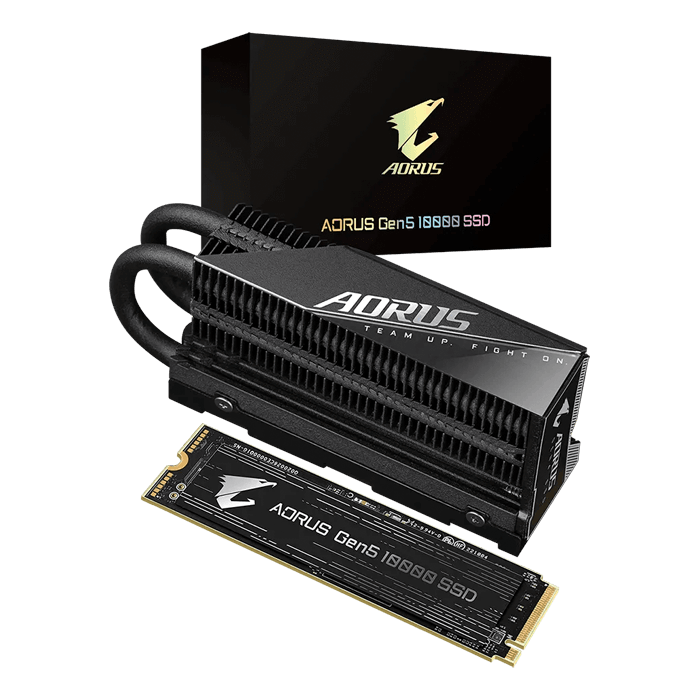

2TB AORUS Gen5 10000, w/ Heatsink, 10000 / 9500 MB/s, 3D TLC NAND, PCIe NVMe 5.0 x4, M.2 2280 SSD

  • SKU: 17516774
  • Manufacturer: GIGABYTE
  • MPN: AG510K2TB
Starting At
Interface PCI-Express 5.0 x4, NVMe 2.0
Form Factor M.2 2280
Total Capacity 2000GB
External DDR Cache LPDDR4 4GB
Sequential Read speed Up to 10,000 MB/s
Sequential Write speed UP to 9,500 MB/s
Dimension SSD without Heatsink: 80 x 22 x 3.5mm
SSD with Heatsink: 92 x 23.5 x 44.7 mm
Please refer to the file to check the M.2 Thermal Guard XTREME Incompatible List
Mean time between failure (MTBF) 1.6 million hours
Max. Operating Power 11W
Power Consumption (Idle, PS3) <144mW
Power Consumption(PS4, L1.2) <85mW
Temperature (Operating) 0°C to 70°C
Temperature (Storage) -40°C to 85°C
Warranty 1. Limited 5-years or 1400TBW.
2. Limited warranty based on 5 years or 1400TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
Note Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
Speeds based on internal testing. Actual performance may vary.
1GB = 1 billion bytes. Actual useable capacity may vary.
* To keep AORUS Gen5 10000 SSD from overheating, please adopt the motherboard build-in heatsink or Thermal Guard Xtreme heatsink to prevent throttling.
