| Specification |
| Interface M.2 22801,2 |
PCIe Gen3 8 Gb/s, up to 4 Lanes |
| Formatted Capacity3 |
2TB |
| Performance² |
2TB |
| Sequential Read up to (MB/s) (Queues=32, Threads=1) |
3,400 |
| Sequential Write up to (MB/s) (Queues=32, Threads=1) |
2,900 |
| Rand Read 4KB IOPS up to (Queues=32, Threads=1) |
480K |
| Rand Write 4KB IOPS up to (Queues=32, Threads=8) |
550K |
| Endurance4 (TBW) |
1,200 |
| Power |
| Peak Power (10us) |
2.8A |
| PS3 (low power)5 |
100mW |
| Sleep (PS4) (low power)5 |
2.5mW |
| Reliability |
| MTTF6 |
1,750,000 hours (Telcordia SR-332, GB, 40°C) |
| Environmental |
| Operating Temperatures7 |
32°F to 158°F (0°C to 70°C) |
| Non-operating Temperatures8 |
-67°F to 185°F (-55°C to 85°C) |
| Certifications |
UL, TUV, CE, BSMI, FCC, KCC, RCM, Morocco, VCCI |
| Limited Warranty (years)9 |
5 years |
| Physical Dimensions |

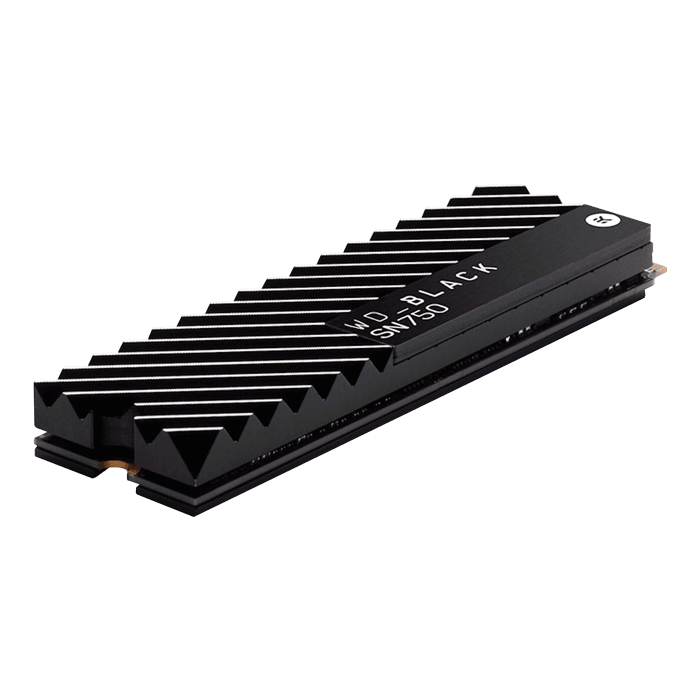

M.2 2280 with Heatsink |
| Form Factor |
M.2 2280 with heatsink |
| Length |
80 ± 0.15mm |
| Width |
24.2 ± 0.30mm |
| Height |
8.10mm |
| Weight |
33.2g ± 1g |
|
1 Backward compatible with PCIe Gen3 x2, PCIe Gen3 x1, PCIe Gen2 x4, PCIe Gen2 x2, and PCIe Gen2 x1.
2 As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second.
IOPS = input/output operations per second. Performance will vary depending on your hardware and software components and configurations.
3 Not all products may be available in all regions of the world. As used for storage capacity, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending
on operating environment.
4 TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
5 Measured using MobileMark™ 2014 on HP EliteBook X360 1030 G2 with i7-7600U, 8GB RAM. Windows 10 Pro 64-bit RS3 using Microsoft StorNVMe driver, Primary drive.
6 MTTF = Mean Time To Failure based on internal testing using Telcordia stress part testing (Telcordia SR-332, GB, 25°C). MTTF is based on a sample population and is estimated by statistical measurements and
acceleration algorithms. MTTF does not predict an individual drive’s reliability and does not constitute a warranty.
7 Operational temperature as reported by device (composite temperature).
8 Non-operational storage temperature does not guarantee data retention.
9 5 years or Max Endurance (TBW) limit, whichever occurs first. See support.wdc.com for regional specific warranty details.
10 The M.2 2280 with heatsink version is not recommended for laptops.
|
