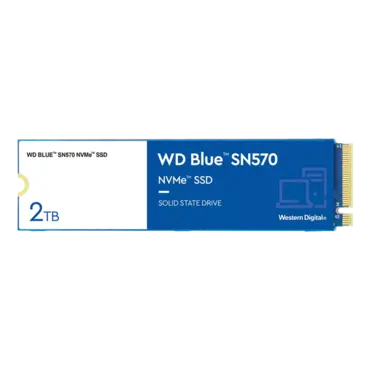

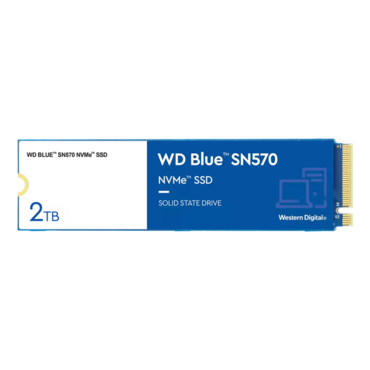

2TB Blue SN570 2280, 3500 / 3500 MB/s, 3D NAND TLC, PCIe 3.0 x4 NVMe, M.2 SSD

  • SKU: 14794325
  • Manufacturer: WESTERN DIGITAL
  • MPN: WDS200T3B0C
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
Capacity 2 TB
Interface M.2 2280 3 PCIe® Gen3 8 Gb/s, up to 4 Lanes
Performance 1
Sequential Read (MB/s) up to
(Queues = 32, Threads = 1)
Sequential Write (MB/s) up to
(Queues = 32, Threads = 1)
Random Read 4KB IOPS up to
(Queues=32, Threads=16)
Random Write 4KB IOPS up to
(Queues=32, Threads=16)
Endurance (TBW) 6 900
Average Active Power 7 90mW
Low Power (PS3) 30mW
Sleep (PS4) (low power) 5mW
Maximum Operating Power 8 4.5W
MTTF (hours) 9 1.5M
Operating Temperatures 10 32°F to 158°F (0°C to 70°C)
Non-operating Temperatures 11 -40°F to 185°F (-40°C to 85°C)
Operating Vibration 5.0 gRMS, 10–2000 Hz, 3 axes
Non-Operating Vibration 4.9 gRMS, 7–800 Hz, 3 axes
Shock 1,500 G @ 0.5 msec half sine
Certifications BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco,
Limited Warranty 5 5 years
Physical Dimensions
Form Factor M.2 2280
Length 80 ± 0.15mm
Width 22 ± 0.15mm
Height 2.38mm
Weight 6.5g ± 1g
Ordering Information
Model Number WDS200T3B0C
Specifications subject to change without notice

1 Test Conditions: Performance is based on the CrystalDiskMark™ 8.0.1 benchmark, 1000MB LBA range, on an Asus™ ROG Crosshair VIII Hero X570 desktop with AMD® Ryzen 9 3950X 16-Core, 32GB 3200MHz DDR4, Windows® 10 Pro
64-bit 20H1 using Microsoft® StorNVMe™ driver, secondary drive. 1 MB/s = 1 million bytes per second. IOPS = input/output operations per second. Based on internal testing; performance may vary depending upon host device, usage
conditions, drive capacity, and other factors.
2 1GB = 1 billion bytes and 1TB = 1 trillion bytes. Actual user capacity may be less depending on operating environment.
3 Available for download at
4 Backwards compatible with PCIe Gen3 x1, PCIe Gen2 x4, PCIe Gen2 x2, and PCIe Gen2 x1.
5 5 years or Max Endurance (TBW) limit, whichever occurs first. See for regional specific warranty details.
6 Download and installation required. Includes 5-year license for your compatible drive. Redeem within 90-days of purchase. May not be combined with other offers. Limited time offer, see for more details. Offer subject
to change.
7 TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
8 Measured using MobileMark™ 2018 on Dell® Precision 7730 intel® Core™ i5-8300 CPU @ 2.30GHZ 8GB Windows 10 RS5 (1809) Bios 1.13.1.
9 Measured during continuous sequential read or write activity and indicates the average over 1 second intervals.
10 MTTF = Mean Time To Failure based on internal testing using Telcordia™ stress part testing (Telcordia SR-332, GB, 25°C). MTTF is based on a sample population and is estimated by statistical measurements and acceleration algorithms.
MTTF does not predict an individual drive’s reliability and does not constitute a warranty.
11 Operational temperature is measured by thermal sensors in NAND package. The SSD box package is rated up to 60ºC.
12 Non-operational storage temperature does not guarantee data retention.
