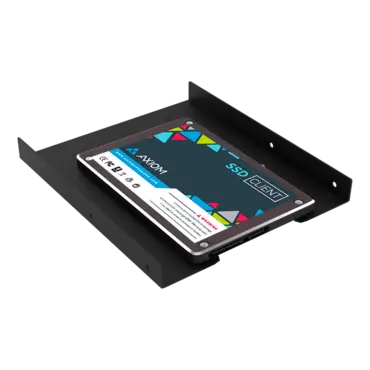

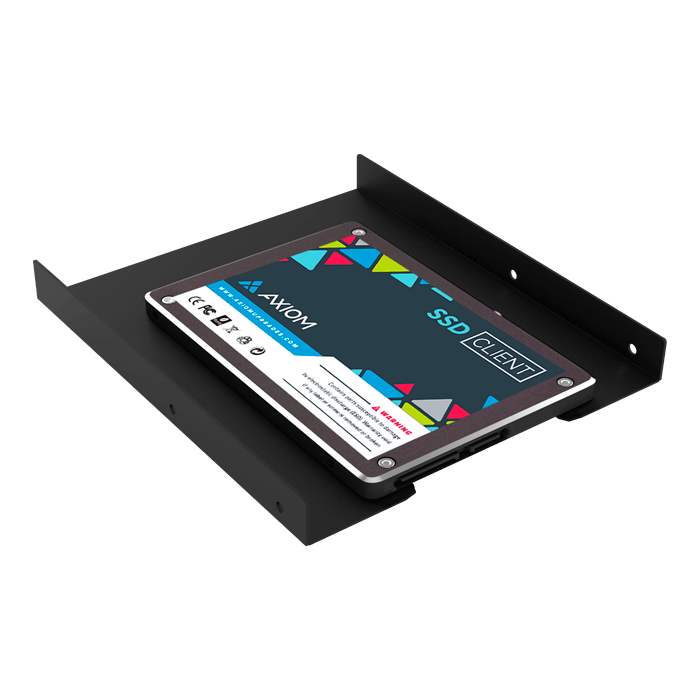

2TB C565e 7mm, 565 / 530 MB/s, 3D TLC NAND, SATA 6Gb/s, SED, TCG Opal SSC, 2.5" (in 3.5" carrier) SSD - TAA Compliant
Quantity:
- SKU: 12728984
- Manufacturer: AXIOM
- MPN: AXG99133
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$234.72
| Capacity | 2TB |
| Features |
• Silicon Motion SM2258 controller • SLC caching accelerates burst performance • Direct-to-TLC mode enhances sustained write performance • Global wear leveling evens program/erase counts to extend drive lifespan • StaticDataRefresh technology ensures data integrity • Intelligent garbage collection routines for advanced free space management • TRIM command support (OS dependent) • S.M.A.R.T. support • LDPC hard and soft decode ECC • DEVSLP support • Internal flash RAID-like parity scheme provides an additional layer of error correction • Field-upgradeable firmware • SATA 3.1 Compliant SATA 6Gb/s – backwards compatible with SATA 3Gb/s and 1.5Gb/s • ATA/ATAPI-8-ACS3 command set compliant • Industry-standard 512 byte sector support • Temperature sensor • Native Command Queuing (NCQ) support with 32 command queue depth • RoHS-compliant package • 3D TLC NAND • DRAM support |
| Performance |
• Sequential Read: Up to 565MB/s • Sequential Write: Up to 530MB/s • Random Read: Up to 100K IOPS (4K block size) • Random Write: Up to 91K IOPS (4K block size) |
| Endurance |
• TBW: Up to 600TB • DWPD (3yr): 0.27 |
| Security |
• OPAL 2.0 Compliant • 256-bit AES compliant Data Encryption • User selectable ATA password support • Secure Erase support |
| Reliability |
• MTBF: 1.5 million device hours* • Low Density Parity Check (LDPC) ECC • Static and dynamic wear leveling • Uncorrectable Bit Error Rate: =1 sector per 1016 bits read |
| Electrical |
• +5VDC (±5%) power supply • Power Consumption: up to 2.1W (Active), 0.09W (Idle) |
| Environmental |
• Operating temperature: 0-70°C • Non-Operating temperature: -40-85°C • Operating humidity: 5-95% relative • Shock: 1500G/0.5ms • Vibration: 2-500Hz, 3.1G |
| RoHS Compliant | |
| TAA Compliant | |
|
Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment *Based on Telcordia SR-332 reliability prediction procedur |
|
