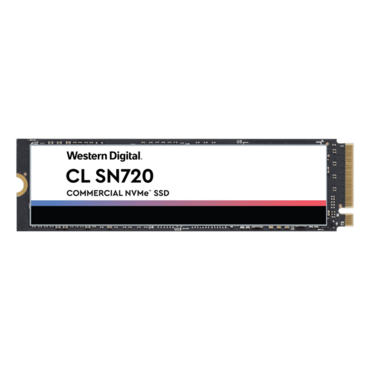

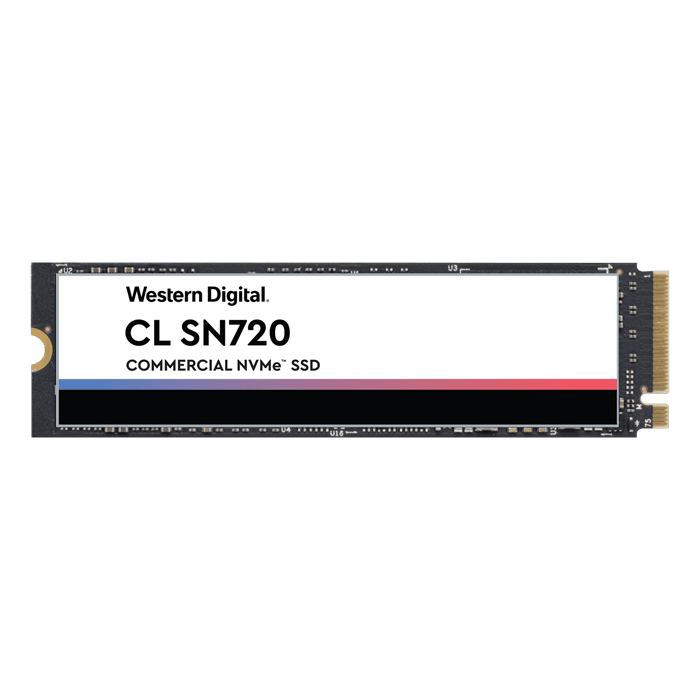

2TB CL SN720, 3470 / 2800 MB/s, 3D NAND, PCIe NVMe 3.0 x4, SED, TCG Opal SSC, M.2 2280 SSD
Quantity:
- SKU: 13209563
- Manufacturer: WESTERN DIGITAL
- MPN: SDAQNTX-2T00-2000
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$605.29
| Specification | |
| Form Factors | M.2 2280 |
| Interface | PCIe Gen3 X4 NVMe v1.3 |
| Capacity | 2TB |
| Security | TCG OPAL 2.01, SSC support |
| Performance | |
| Sequential Read (128KB MB/s up to) | 3,470 |
| Sequential Write (128KB MB/s up to) | 2,800 |
| Random Read (4KB, 32QD, IOPS up to) | 450K |
| Random Write (4KB, 32QD, IOPS up to) | 390K |
| Sustained Sequential Write (128KB MB/s up to) | 1,380 |
| Sustained Random Write (4K, IOPS up to) | 3,200 |
| Sustained Random 70/30 Read/Write (4K, IOPS up to) | 9,000 |
| Endurance (TBW) | 1600 |
| Peak Power (10μs) (A) | 2.8 |
| Average Active Power (mW) | up to 140 |
| Low Power (PS3) (mW) | up to 100 |
| Sleep (PS4) (MW) | 2.5 |
| Supply Voltage (V / +5%) | 3.3 |
| Reliability | |
| MTTF | up to 2M hours |
| UBER | 10-17 |
| Environmental | |
| Operating Temperatures | 0°C to 85°C |
| Non-operating Temperatures1 | -55°C to 85°C |
| Certifications | FCC, UL, TUV, KCC, BSMI, VCCI, C-Tick |
| Limited Warranty" | 5 years |
| Physical Dimensions | |
| Width | 22mm ± 0.15mm |
| Length | 80mm ± 0.15mm |
| Thickness (max) | 2.38mm |
| Weight | 7.5g + 1g |
