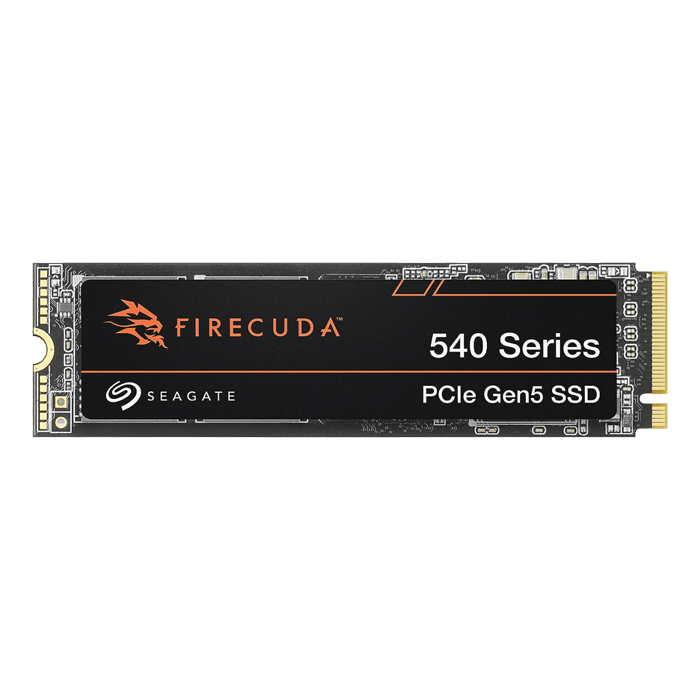

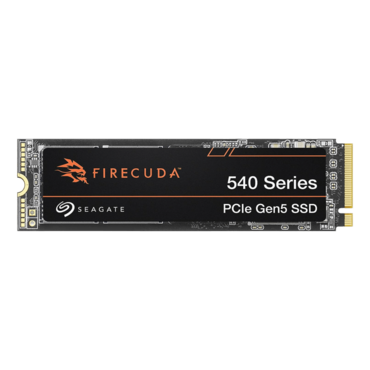

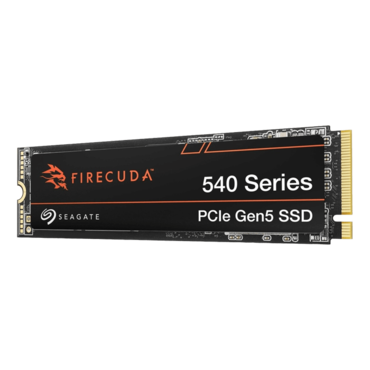

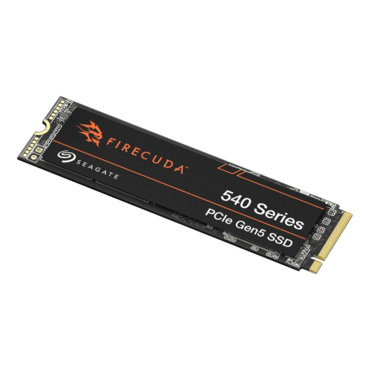

2TB FireCuda 540, 10000 / 10000 MB/s, 3D TLC NAND, PCIe NVMe 5.0 x4, M.2 2280 SSD
Quantity:
- SKU: 16288268
- Manufacturer: SEAGATE
- MPN: ZP2000GM3A004
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$325.50
2TB FireCuda 540, 10000 / 10000 MB/s, 3D TLC NAND, PCIe NVMe 5.0 x4, M.2 2280 SSD
Performance has a new name — FireCuda 540 SSD. With speeds up to 10,000 MB/s, this PCIe Gen5 takes no-prisoners, toppling Gen4 speeds by 50% and going 17 times faster than SATA SSDs. DirectStorage support brings faster load times to games and applications. Plus, handles upwards of 2000 TB total bytes written, perfect for powering through constant abuse. This SSD isn’t for the faint of heart.
- Full Tilt Speeds
Our PCIe Gen5 interface brings performance of up to 10,000 MB/s and 1.5M IOPS optimised for DirectStorage PC games. - Faster. Faster. Faster.
Transfer speeds up to 50% faster than PCIe Gen4 NVMe SSDs and up to 17× faster than SATA SSDs. - Built to Last
Up to 2,000 TB TBW means you can rewrite up to 1 TB of data every day, for five years (based on 2 TB capacity)
| SPECIFICATIONS | 2TB |
| Standard Model | ZP2000GM30004 |
| Interface | PCIe Gen5 ×4 NVMe 2.0 |
| NAND Flash Memory | 3D TLC |
| Form Factor | M.2 2280-D2 |
| Performance | |
| Sequential Read (Max, MB/s), 1MB | 10,000 |
| Sequential Write (Max, MB/s), 1MB | 10,000 |
| Random Read (Max, IOPS), 4KB QD32 T8 | 1,490,000 |
| Random Write (Max, IOPS), 4KB QD32 T8 | 1,500,000 |
| Endurance/Reliability | |
| Total Bytes Written (TB) | 2,000 |
| Mean Time Between Failures (MTBF, hours) | 1,800,000 hrs |
| Rescue Data Recovery Services (years) | 3 |
| Warranty, Limited (years) | 5 |
| Power Management | |
| Active Power, Average (W) | 11 |
| Idle Power PS3, Average (mW) | 144 |
| Environmental | |
| Temperature, Operating Internal (°C) | 0°C – 70°C |
| Temperature, Nonoperating (°C) | -40°C – 85°C |
| Shock, Nonoperating: 0.5ms (Gs) | 1500Gs |
| Special Features | |
| TRIM | Yes |
| S.M.A.R.T. | Yes |
| SED TCG Opal 2.01 | Yes |
| RoHS Compliance | Yes |
| Physical | |
| Length (mm/in, max) | 80.15mm/3.155in |
| Width (mm/in, max) | 22.15mm/0.872in |
| Height (mm/in, max) | 3.58mm/0.140in |
| Weight (g/lb) | 7.4g/0.016lb |
