2TB Rocket, 3400 / 2700 MB/s, 3D TLC NAND, PCIe NVMe 3.1 x4, M.2 2280 SSD

Quantity:
  • SKU: 13261430
  • Manufacturer: SABRENT
  • MPN: SB-ROCKET-2TB
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$153.96
Quantity:
2TB Rocket, 3400 / 2700 MB/s, 3D TLC NAND, PCIe NVMe 3.1 x4, M.2 2280 SSD

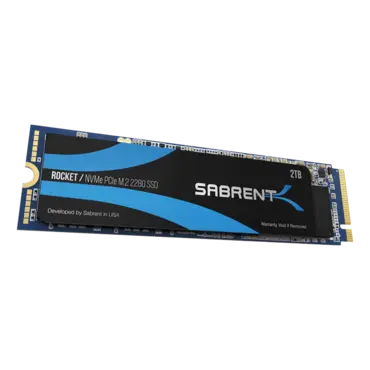

The Sabrent 2TB ROCKET NVMe PCIe M.2 2280 Internal SSD High Performance Solid State Drive (SB-ROCKET-2TB) delivers all the advantages of flash disk technology with PCIe Gen3 x4 interface and it is fully compliant with the standard Next Generation Form Factor (NGFF), commonly known as M.2.

Based on 3D TLC NAND Flash memory, its performance speeds can reach up to 3400 MB/s (read) and 2700 MB/s (write). Power consumption is much lower than traditional hard drives, making it the best embedded solution for new systems.

  • M.2 PCIe Gen3 x 4 Interface.
  • PCIe 3.1 Compliant / NVMe 1.3 Compliant.
  • Power Management Support for APST / ASPM / L1.2.
  • Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.
  • Advanced Wear Leveling, Bad Block Management, and Over-Provision.
Model
Brand Sabrent
Series ROCKET NVMe
Model SB-ROCKET-2TB
Device Type Internal Solid State Drive (SSD)
Used For Consumer
Details
Form Factor M.2 2280
Capacity 2TB
Memory Components 3D TLC NAND
Interface PCI-Express 3.1 x4
Controller Phison
Performance
Max Sequential Read Up to 3400 MBps
Max Sequential Write Up to 2700 MBps
4KB Random Read Up to 490,000 IOPS
4KB Random Write Up to 510,000 IOPS
MTBF 1,800,000 hours
HeatSink No
Features
Features M.2 PCIe Gen3 x4 Interface.

NVMe 1.3 Compliant.

Power Management Support for APST / ASPM / L1.2.

Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.

Advanced Wear Leveling, Bad Block Management, and Over-Provision.
Environmental
Power Consumption (Active) R: 5.7W
W: 5.4W
Operating Temperature 0°C ~ +70°C
Storage Temperature -40°C ~ +85°C
Max Shock Resistance 1500G
Dimensions & Weight
Height 3.30mm
Width 21.84mm
Depth 78.74mm
Weight 5.66g
Additional Information
Date First Available November 11, 2019
