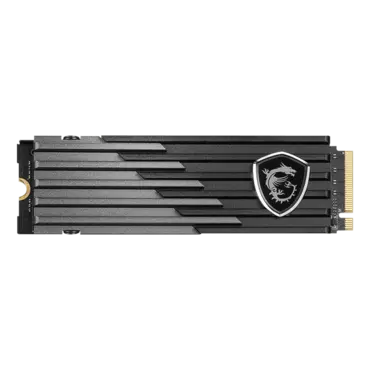

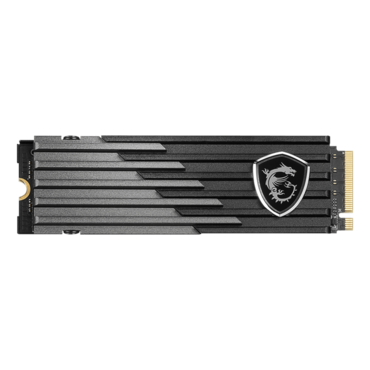

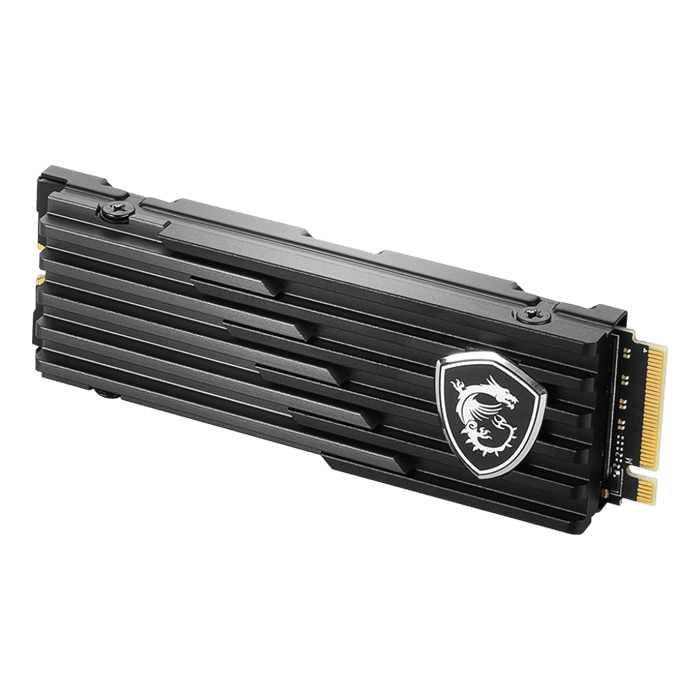

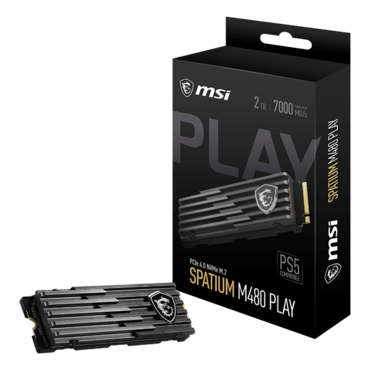

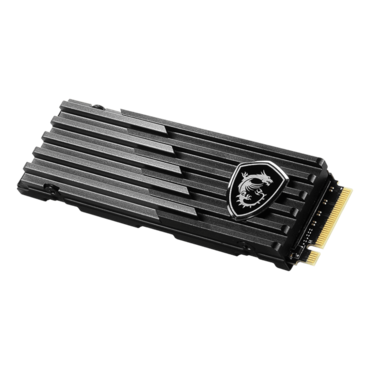

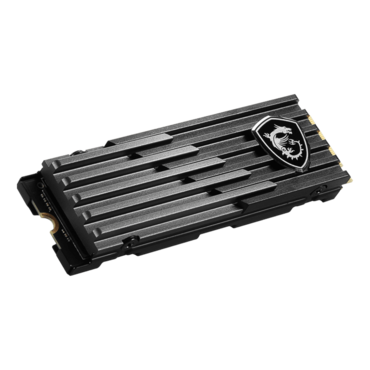

2TB SPATIUM M480 PRO PLAY, w/ Heatsink, 7400 / 7000 MB/s, 3D NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD

Quantity:
  • SKU: 17047552
  • Manufacturer: MSI
  • MPN: SM480PN2TB
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$144.33
Quantity:
2TB SPATIUM M480 PRO PLAY, w/ Heatsink, 7400 / 7000 MB/s, 3D NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD

PLAY BIG ON YOUR PS5™

The SPATIUM M480 PRO PLAY exceeding the PS5™ performance requirements is ready to expand your game library up to a massive 4TB to store as many titles as you want. It’s easy to install with a slim design that will fit the expansion slot while maximizing the performance.

  • PCIe Gen4x4 interface and complies with the NVMe 1.4 standard
  • Sequential Read speeds up to 7400MB/s and Write speeds up to 7000MB/s
  • Up to 3000 TBW
  • Built-in data security and error-correction capabilities
  • 1TB to 4TB capacities in M.2 2280 form factor
  • 5-Year Warranty
Differences are marked in red SPATIUM M480 PRO PCIe 4.0 NVMe M.2 2TB PLAY
Model Name SPATIUM M480 PRO PCIe 4.0 NVMe M.2 PLAY
Capacity 2TB
Controller PHISON E18
Flash Memory 3D NAND
DRAM Cache 2GB DDR4
Form Factor M.2 2280
Interface PCIe Gen4 x4, NVMe 1.4
Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions 80.40mm (L) x 24.00mm (W) x 10.70mm (H), PS5 Compatible
Sequential Read up to (MB/s) 7400
Sequential Write up to (MB/s) 7000
Random Read 4KB up to (IOPS) 1,000,000
Random Write 4KB up to (IOPS) 1,000,000
Maximum Operating Power (W) 10.5
Idle Power PS3 (mW) 45
Low Power L1.2 (mW) 3
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 1400
Mean Time Between Failure (MTBF) Up to 1,600,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
Advanced Features TRIM (Performance Optimization, OS Support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/Pyrite (Encryption, Data Security)
