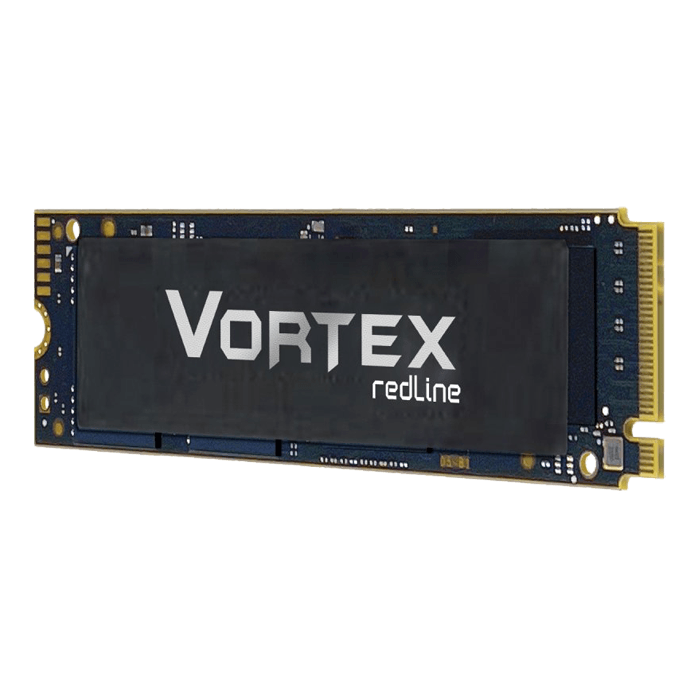

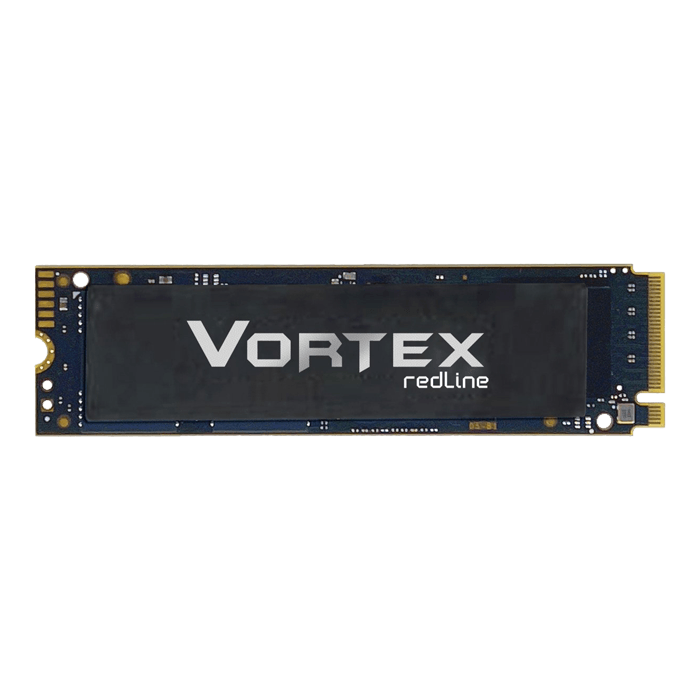

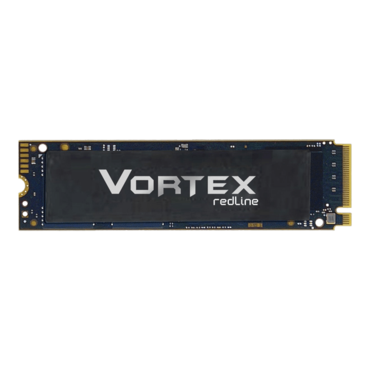

2TB Vortex, 7415 / 6800 MB/s, 3D NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD

Quantity:
  • SKU: 15826102
  • Manufacturer: MUSHKIN
  • MPN: MKNSSDVT2TB-D8
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$166.73
Quantity:
General
Brand Mushkin Enhanced
Series Vortex
Model MKNSSDVT2TB-D8
Type M.2 (2280) Internal Solid State Drive (SSD)
Used For Consumer
UPC 846651033666
Physical
Form Factor M.2 (2280)
Capacity 2TB
Interface PCIe Gen4 x4 NVMe 1.4
Controller InnoGrit IG5236
Height 3.8mm
Width 80.0mm
Depth 22.0mm
Weight 7g
Performance
Max Sequential Read Up to 7415MB/s
Max Sequential Write Up to 6800MB/s
Max 4K Random Read IOPS Up to 730,000
Max 4K Random Write IOPS Up to 1,500,000
MTBF 1,500,000 hours
TBW 1000TB
Features
Features MEDS (Mushkin Enhanced Data-protection Suite) ensures valuable data is protected
- Built-in LDPC ECC provides the most-powerful data correction level in use today
- End-to-end data path protection
- Global wear-leveling evens program/erase counts across data blocks to extend lifespan
2GB DDR4 DRAM
SLC caching accelerates burst performance
L1.2 power mode support for ultra-low power consumption
NVMe Security Erase support
NVMe Deallocate function support (NVMe equivalent of TRIM command)
High-reliability 3D NAND flash
S.M.A.R.T. support
User-upgradeable firmware
Temperature sensor
RoHS, FCC, CE
Power Consumption (Idle): 0.1W
Power Consumption (Active): Up to 7W
Max sequential speeds and IOPS measured using CrystalDiskMark 8.0.1 x64.
Environmental
Operating Temperature 0°C-70°C
Storage Temperature -40°C-85°C
Max Shock Resistance 1500G
Power Supply 3.3V DC
