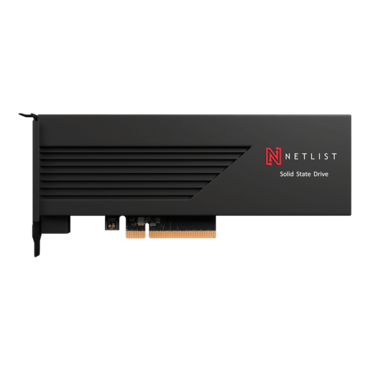

3.2TB N1952 E3, 5500 / 3100 MB/s, 3D NAND, PCIe 3.0 x4 NVMe, AIC SSD

SKU: 13830950

Manufacturer: Netlist

MPN: NS1952AH33T2-5M1A000

Availability: Special Order


Price: $1,138.15
or as low as $37/month
Quantity:
  • PCI Express Gen3 x8
  • NVM Express 1.2
  • NVMe-MI support
  • TCG Opal (encryption key management)
  • Self-Encrypting Drive (SED) with AES-256 encryption
  • Crypto Erase
  • T10 PI (DIF/DIX) – Types 0-4
    • Variable sector size support for data protection & resilience
      • (512B, 4KB, 512+8B, 4KB+8B, 4KB+64B)
  • Power Loss Protection (PLP)
  • S.M.A.R.T support
  • Thermal management & temp settings
  • Namespace capable (up to 32)
  • No reset required for firmware upgrades
  • 5-year warranty
  • Firmware, thermal, mechanical, & power customizations available
Capacity 3.2 TB
NAND Type 96-Layer 3D TLC NAND
Sequential Read 5.5 GB/s
Sequential Write 3.1 GB/s
Random Read 850K IOPS
Random Write 210K IOPS
Latency Read 88 µs
Latency Write 11 µs
Power Active 14 W
Power Idle 7 W
Endurance for 5 years 3 DWPD (up to 9 DWPD)1
Uncorrectable Bit Error Rate (UBER) 1 sector per 1017 bits
Mean Time Between Failure (MTBF) 2 million hours
Self-Encrypting Drive (SED) Yes
Power Loss Protection (PLP) Yes
Crypto Erase Yes
TCG Opal Yes
Note 1: Customizable over-provisioning (endurance) available up to 9 DWPD
