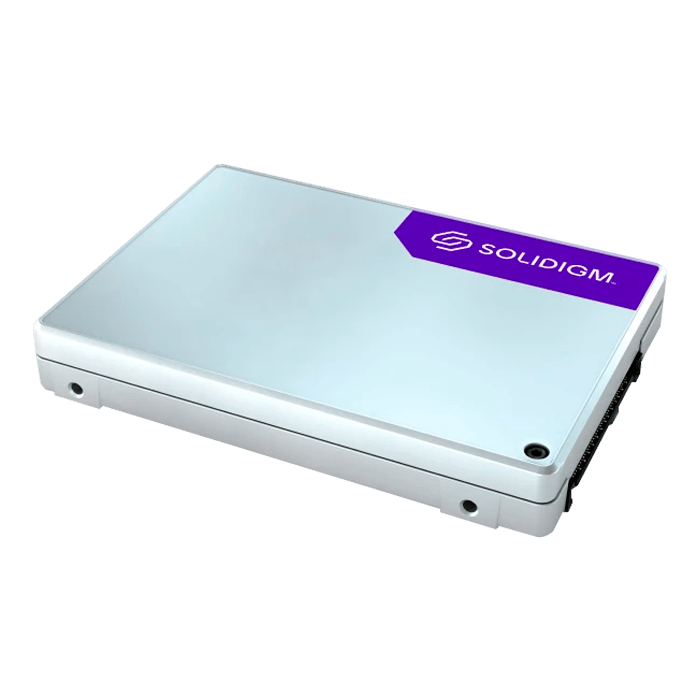

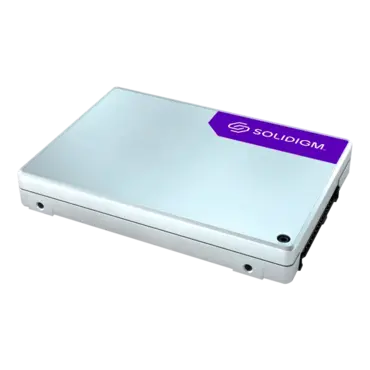

3.84TB D5-P5430 15mm, 5200 / 900 MB/s, 3D QLC NAND, PCIe NVMe 4.0 x4, U.2 2.5" SSD
- SKU: 16116389
- Manufacturer: Solidigm
- MPN: SBFPF2BU038T001
- Availability: CONTACT US
Price
$631.05
| Product Details | |
| Capacity | 3.84 TB |
| Form Factor | U.2 15mm |
| Interface | PCIe 4.0 x4, NVMe |
| Weight | 150g +/-10g |
| Lithography Type | 192L QLC 3D NAND |
| Use Conditions | Server/Enterprise |
| Performance | |
| Sequential Bandwidth - 100% Read (up to) | 5200 MB/s |
| Sequential Bandwidth - 100% Write (up to) | 900 MB/s |
| Random Read (100% Span) | 516000 IOPS (4K, QD256) |
| Random Write (100% Span) | 54500 IOPS (4K, QD256) |
| Power - Active | 13W |
| Power - Idle | 5W |
| Latency - Random Read (typ.) | 108μs |
| Latency - Random Write (typ.) | 19μs |
| Latency - Sequential Read (typ.) | 8μs |
| Latency - Sequential Write (typ.) | 10μs |
| Reliability | |
| Warranty Period | 5 years |
| Endurance Rating (Lifetime Writes) | Up to 0.55 DWPD, 3.8 PBW |
| Mean Time Between Failures (MTBF) | 2 million hours |
| Uncorrectable Bit Error Rate (UBER) | <1 sector per 10^17 bits read |
| Vibration - Operating | 2.17 GRMS (5 - 700 Hz) Max |
| Vibration - Non-Operating | 3.13 GRMS (5 - 800 Hz) Max |
| Shock (Operating and Non-Operating) | 1,000 G (Max) at 0.5 msec |
| Operating Temperature Range | 0 - 70°C |
| Ordering Specifications | |
| Solidigm™ D5-P5430 Series (3.84 TB, 2.5in PCIe 4.0 x4, 3D5, QLC) Generic No Opal Single Pack | |
| Ordering Code | SBFPF2BU038T001 |
| Shipping Media | 1 PACK (1PK) |
